Accesorios para cajas
A9052107
SOFT-CASE L
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.
VersionWithout battery compartment
SupplyTop and bottom part, assembly kit
Plano 2D en PDF
Vista en 3D en PDF
Descarga 3D/2D
Descarga 3D/2D
Cree su ficha de datos en PDF para A9052107
Seleccione la información del producto para su ficha de datos.
Añadir a la cesta de la compra
Accessory "intermediate ring"

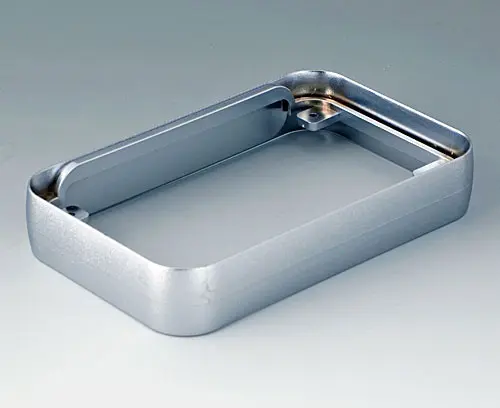

A9152011
Intermediate ring L
Sophisticated feature in metallic finish (RoHS compliant). 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.
Supply 1 intermediate ring
A9152011
Intermediate ring LProducto añadido a su lista
matt chromed
76x120x21mm
A9152017
Intermediate ring L
For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.
Supply 1 intermediate ring
A9152017
Intermediate ring LProducto añadido a su lista
off-white RAL 9002
76x120x21mm

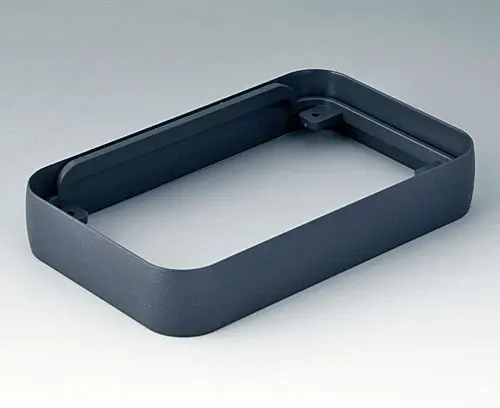

A9152018
Intermediate ring L
For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.
Supply 1 intermediate ring
A9152018
Intermediate ring LProducto añadido a su lista
lava
76x120x21mm

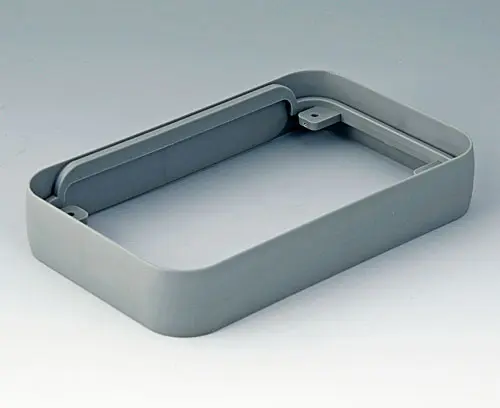

A9152118
Intermediate protection ring L
Serves as a sealing ring and impact protection and ensures 3 mm more installation height. Individual colour choice and designs on demand.
Supply 1 intermediate ring
A9152118
Intermediate protection ring LProducto añadido a su lista
volcano
76x120x21mm

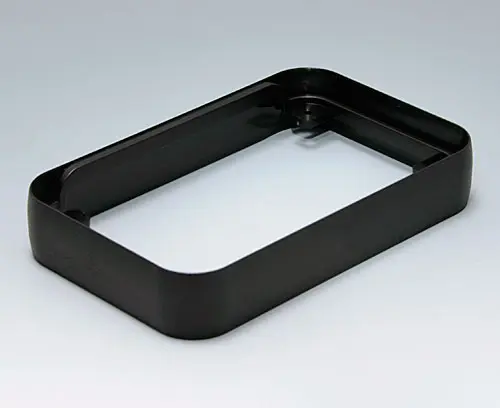

A9152219
Intermediate ring L
For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.
Supply 1 intermediate ring
A9152219
Intermediate ring LProducto añadido a su lista
black RAL 9005
76x120x21mm
Accessory "wall/holder"
A9152047
Combi-Clip
Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.
Supply 1 set
A9152047
Combi-ClipProducto añadido a su lista
off-white RAL 9002
45x27mm
Accessory "carrying"
A9100001
Ring eyelet
For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.
Supply 1 ring eyelet
A9100001
Ring eyeletProducto añadido a su lista
volcano
A9152047
Combi-Clip
Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.
Supply 1 set
A9152047
Combi-ClipProducto añadido a su lista
off-white RAL 9002
45x27mm
Accessory "screws"
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)Producto añadido a su lista
Accessory
A9152057
Tilt foot bar
Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.
Supply 1 tilt foot bar, assembly kit
A9152057
Tilt foot barProducto añadido a su lista
off-white RAL 9002
Customising options for A9052107
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Datos técnicos
-
Modelos 3D & Planos / Documentos
- Aplicaciones
- Purchasing Data
Material
Protection class
Necessary accessories: soft TPE intermediate ring,
Color
off-white RAL 9002
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Longitud
73 mm
Anchura
117 mm
Altura
24 mm
PCB length, base
63 mm
PCB width, base
108 mm
PCB length, top
63 mm
PCB width, top
108 mm
Keypad length
51,5 mm
Keypad width
77,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 750 KB
- AutoCAD DWG-File 1.659 KB
- AutoCAD DXF-File 6.349 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 1.442 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008012.x_t 6.780 KB
- 00008012.STEP 16.262 KB
- 00008012.SAT 14.357 KB
Weight/1 part
58 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para A9052107 y no olvide solicitar presupuesto.
