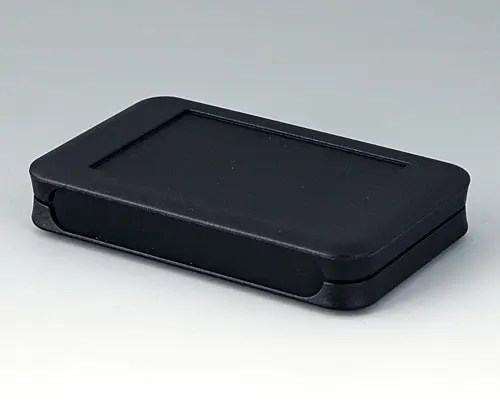

A9051209
SOFT-CASE M
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.
Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.
Without battery compartment
SupplyTop and bottom part, assembly kit
Cree su ficha de datos en PDF para A9051209
Seleccione la información del producto para su ficha de datos.
Accessory "intermediate ring"

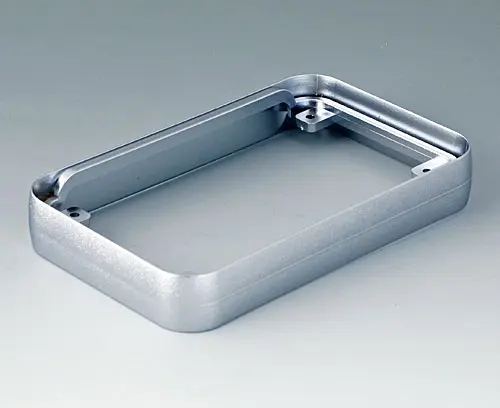

A9151011
Supply 1 intermediate ring
A9151011
Intermediate ring Mmatt chromed
68x108x16mm
A9151017
Supply 1 intermediate ring
A9151017
Intermediate ring Moff-white RAL 9002
68x108x16mm
A9151018
Supply 1 intermediate ring
A9151018

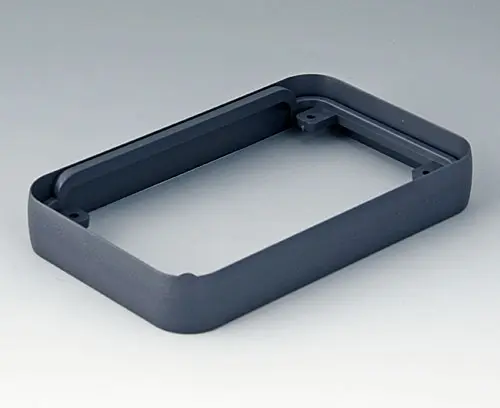

Intermediate ring Mlava
68x108x16mm
A9151118
Supply 1 intermediate ring
A9151118
Intermediate protection ring Mvolcano
68x108x16mm

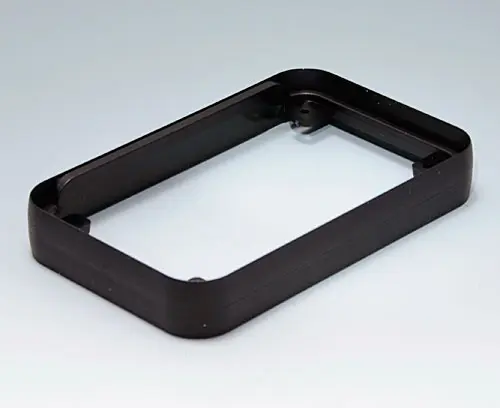

A9151219
Supply 1 intermediate ring
A9151219
Intermediate ring Mblack RAL 9005
68x108x16mm
Accessory "wall/holder"

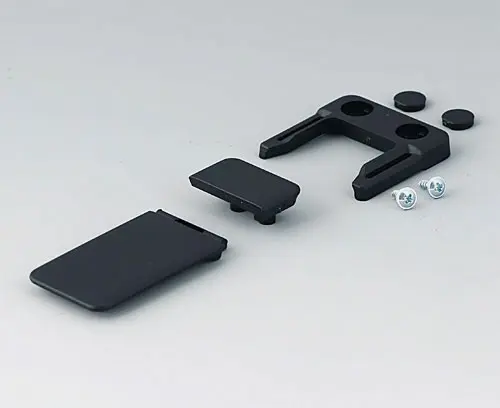

A9152049
Supply 1 set
A9152049
Combi-Clipblack RAL 9005
45x27mm
Accessory "carrying"
A9100001
Supply 1 ring eyelet
A9100001
Ring eyeletvolcano
A9152049
Supply 1 set
A9152049
Combi-Clipblack RAL 9005
45x27mm
Accessory "screws"
A0304031
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)Accessory

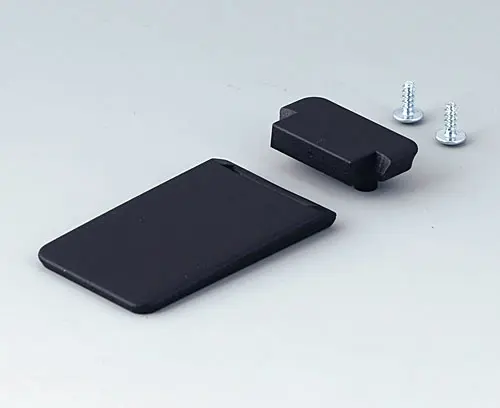

A9152059
Supply 1 tilt foot bar, assembly kit
A9152059
Tilt foot barblack RAL 9005
Necessary accessories: soft TPE intermediate ring,
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 518 KB
- AutoCAD DWG-File 1.156 KB
- AutoCAD DXF-File 4.405 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 1.438 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00007965.x_t 6.935 KB
- 00007965.STEP 16.574 KB
- 00007965.SAT 14.601 KB
(OKW product)
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para A9051209 y no olvide solicitar presupuesto.
