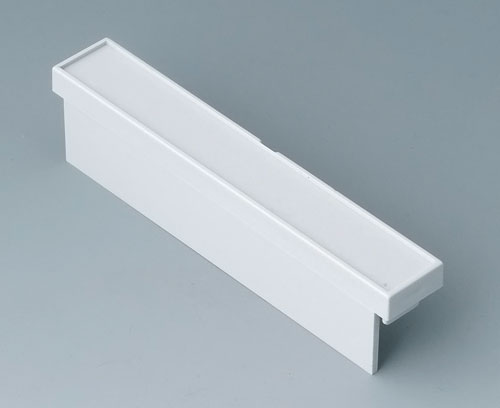

B6804111

Terminal guards, closed

Easy assembly through snap-in installation of the case parts.

Version

Closed

Supply

1 piece

Plano 2D en PDF
Descarga 3D/2D

Cree su ficha de datos en PDF para B6804111

Seleccione la información del producto para su ficha de datos.

Añadir a la cesta de la compra Añadir a la cesta de la compra Añadir a la cesta de la compra
Producto añadido a su lista
Continuar o abrir la cesta de la compra
B6704100 RAILTEC C, 5 modules, Vers. I

B6704100

RAILTEC C, 5 modules, Vers. I Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

B6704100

RAILTEC C, 5 modules, Vers. I
Producto añadido a su lista

light grey
88x90x58mm
B6704101 RAILTEC C, 5 modules, Vers. I

B6704101

RAILTEC C, 5 modules, Vers. I Enclosure with 1 side open for connection - for max. 1 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

B6704101

RAILTEC C, 5 modules, Vers. I
Producto añadido a su lista

light grey
88x90x58mm
B6704102 RAILTEC C, 5 modules, Vers. II

B6704102

RAILTEC C, 5 modules, Vers. II Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

B6704102

RAILTEC C, 5 modules, Vers. II
Producto añadido a su lista

light grey
88x90x58mm
B6704103 RAILTEC C, 5 modules, Vers. II

B6704103

RAILTEC C, 5 modules, Vers. II Enclosure with 1 side open for connection - for max. 1 terminal guards accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

B6704103

RAILTEC C, 5 modules, Vers. II
Producto añadido a su lista

light grey
88x90x58mm
B6704106 RAILTEC C, 5 modules, Vers. IV

B6704106

RAILTEC C, 5 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

B6704106

RAILTEC C, 5 modules, Vers. IV
Producto añadido a su lista

light grey
88x90x58mm
B6704107 RAILTEC C, 5 modules, Vers. IV

B6704107

RAILTEC C, 5 modules, Vers. IV Enclosure with 1 side open for connection - for max. terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

B6704107

RAILTEC C, 5 modules, Vers. IV
Producto añadido a su lista

light grey
88x90x58mm

Customising options for B6804111

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Color
light grey
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
4 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
UK
