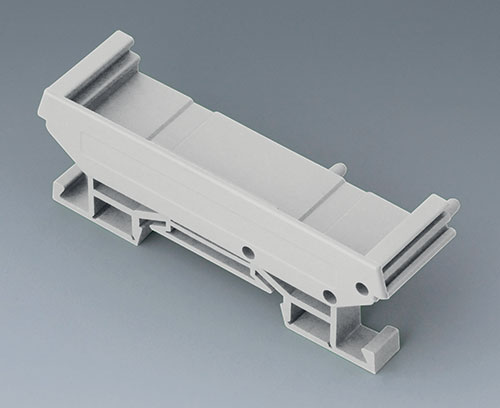

B6724336
RAILTEC SUP. 72, end section with foot
Modular design with plug-in connection. Minimum components for one support: 2 end sections. Combining these parts with intermediate parts (sep. articles) allows optimum adaptation to the relevant size requirements. The PCB widths are obtained by adding the relevant dimensions of the individual parts. Suitable for DIN EN 60715 (TH35).
Supply1 end section with foot
Cree su ficha de datos en PDF para B6724336
Seleccione la información del producto para su ficha de datos.
System components to complete

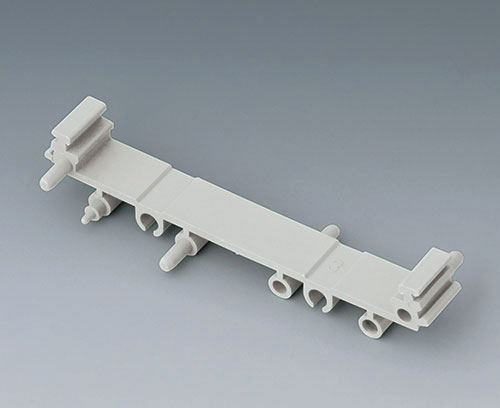

B6724330
Supply 1 intermediate part
B6724330
RAILTEC SUP. 72, intermediate partlight grey
82x11,25x16mm
B6724331
Supply 1 intermediate part
B6724331
RAILTEC SUP. 72, intermediate partlight grey
82x22,5x16mm

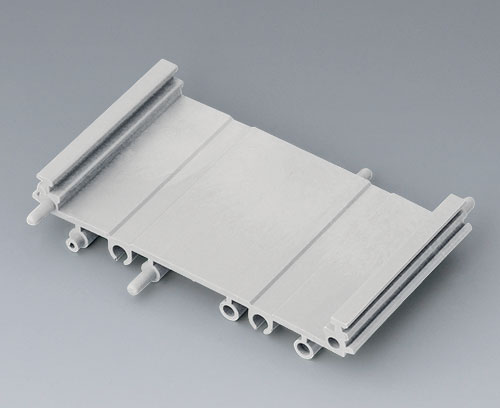

B6724332
Supply 1 intermediate part
B6724332
RAILTEC SUP. 72, intermediate partlight grey
82x45x16mm
B6724337
Supply 1 foot
B6724337
RAILTEC SUP. 72, footlight grey
Accessory "wall/holder"

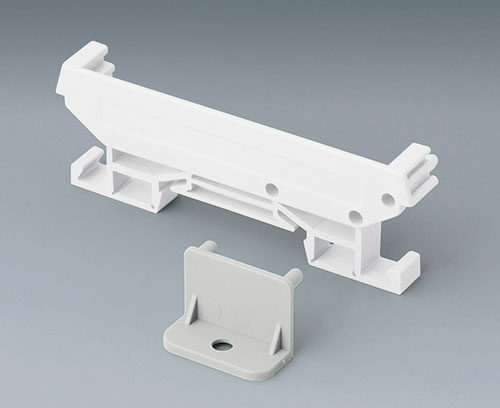

B6824533
Supply 2 pieces as set
B6824533
Wall suspension element with foot, SUP.light grey
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 176 KB
- AutoCAD DWG-File 377 KB
- AutoCAD DXF-File 1.111 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 47 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00006767.x_t 300 KB
- 00006767.STEP 748 KB
- 00006767.SAT 508 KB
(OKW product)
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para B6724336 y no olvide solicitar presupuesto.
