B6703102

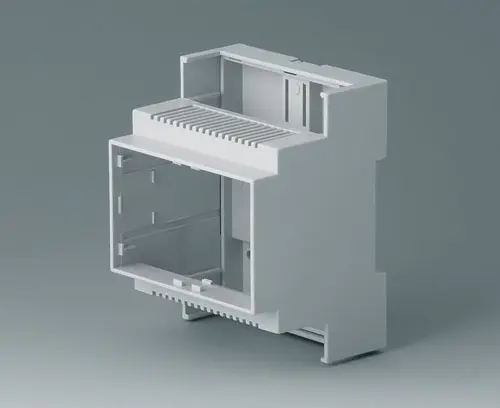

RAILTEC C, 4 modules, Vers. II

Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version

Front open, connection side with free through passage, with ventilations slots

Supply

1 bottom part, 2 clips, 1 top part

Plano 2D en PDF
Vista en 3D en PDF
Descarga 3D/2D

Cree su ficha de datos en PDF para B6703102

Seleccione la información del producto para su ficha de datos.

Añadir a la cesta de la compra Añadir a la cesta de la compra Añadir a la cesta de la compra
Producto añadido a su lista
Continuar o abrir la cesta de la compra

Accessory "wall/holder"

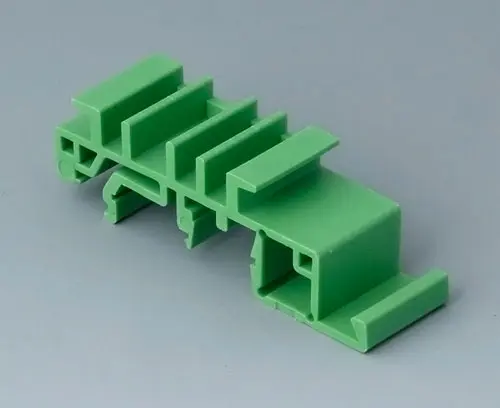

B6811542 Adapter

B6811542

Adapter Suitable for DIN EN 60715 (TH35), EN 60715 (G32) and EN 60715 (TH15).

Supply 1 piece

B6811542

Adapter
Producto añadido a su lista

light grey

Accessory "terminals"

B6601222 Plug header, block 5.08

B6601222

Plug header, block 5.08 Male terminal block, 5.08. 5-pin.

Supply 1 piece

B6601222

Plug header, block 5.08
Producto añadido a su lista
B6601223 Plug header, block 5.08

B6601223

Plug header, block 5.08 Female terminal block, 5.08. 5-pin.

Supply 1 piece

B6601223

Plug header, block 5.08
Producto añadido a su lista
B6602222 Plug header, block 5.08

B6602222

Plug header, block 5.08 Male terminal block, 5.08. 9-pin.

Supply 1 piece

B6602222

Plug header, block 5.08
Producto añadido a su lista
B6602223 Plug header, block 5.08

B6602223

Plug header, block 5.08 Female terminal block, 5.08. 9-pin.

Supply 1 piece

B6602223

Plug header, block 5.08
Producto añadido a su lista

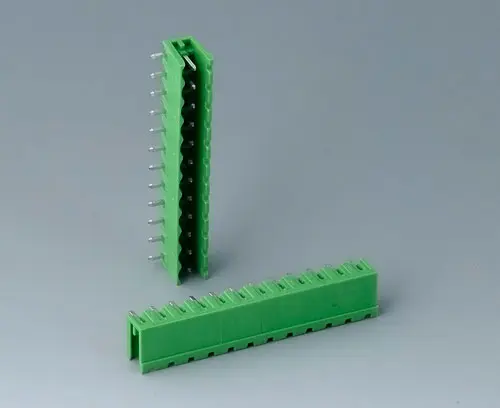

B6603222 Plug header, block 5.08

B6603222

Plug header, block 5.08 Male terminal block, 5.08. 12-pin.

Supply 1 piece

B6603222

Plug header, block 5.08
Producto añadido a su lista

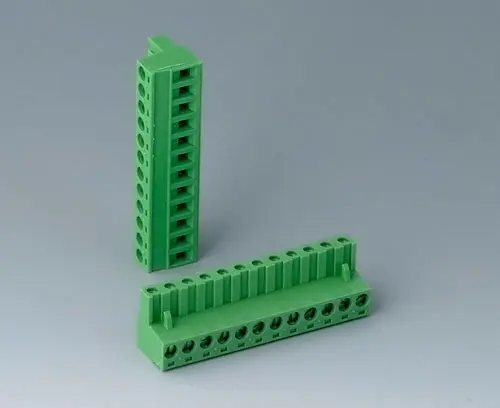

B6603223 Plug header, block 5.08

B6603223

Plug header, block 5.08 Female terminal block, 5.08. 12-pin.

Supply 1 piece

B6603223

Plug header, block 5.08
Producto añadido a su lista
B6606222 Plug header, block 5.08

B6606222

Plug header, block 5.08 Male terminal block, 5.08. 2-pin.

Supply 1 piece

B6606222

Plug header, block 5.08
Producto añadido a su lista
B6606223 Plug header, block 5.08

B6606223

Plug header, block 5.08 Female terminal block, 5.08. 2-pin.

Supply 1 piece

B6606223

Plug header, block 5.08
Producto añadido a su lista

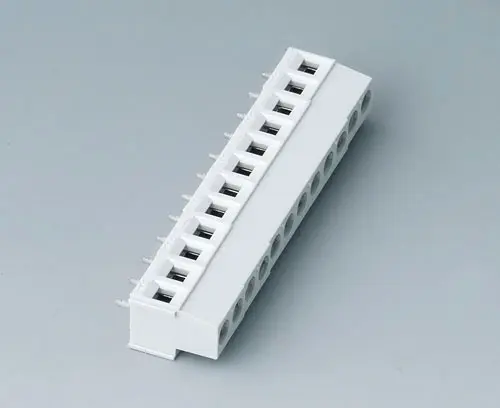

B6803650 Terminal block, block 5.08

B6803650

Terminal block, block 5.08 PCB terminal block, 5.08. 12-pin.

Supply 1 piece

B6803650

Terminal block, block 5.08
Producto añadido a su lista

light grey

Accessory "terminal guards"

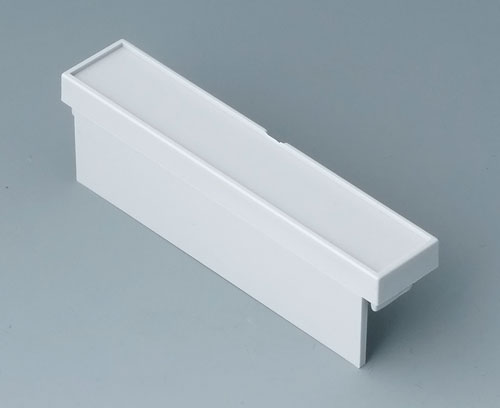

B6803111 Terminal guards, closed

B6803111

Terminal guards, closed Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

B6803111

Terminal guards, closed
Producto añadido a su lista

light grey

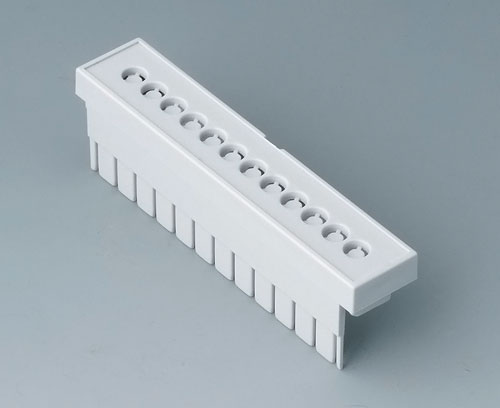

B6803112 Terminal guards, perforated, 5.08

B6803112

Terminal guards, perforated, 5.08 Easy assembly through snap-in installation of the case parts.

Version 12 poles (designed to allow the use of terminals, block 5.08)

Supply 1 piece

B6803112

Terminal guards, perforated, 5.08
Producto añadido a su lista

light grey

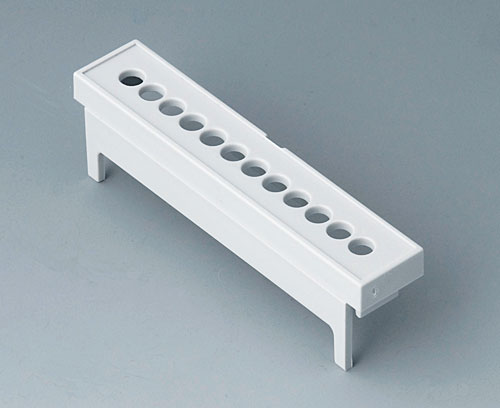

B6803113 Terminal guards, with holes, 5.08

B6803113

Terminal guards, with holes, 5.08 Easy assembly through snap-in installation of the case parts.

Version 12 poles (designed to allow the use of terminals, block 5.08)

Supply 1 piece

B6803113

Terminal guards, with holes, 5.08
Producto añadido a su lista

light grey

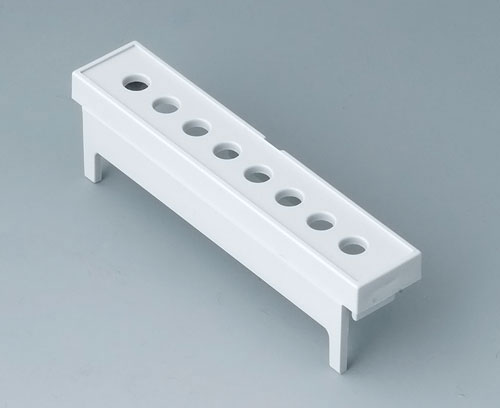

B6803114 Terminal guards, with holes, 7.5 & 7.62

B6803114

Terminal guards, with holes, 7.5 & 7.62 Easy assembly through snap-in installation of the case parts.

Version 8 poles (designed to allow the use of terminals, block 7.5 & 7.62)

Supply 1 piece

B6803114

Terminal guards, with holes, 7.5 & 7.62
Producto añadido a su lista

light grey

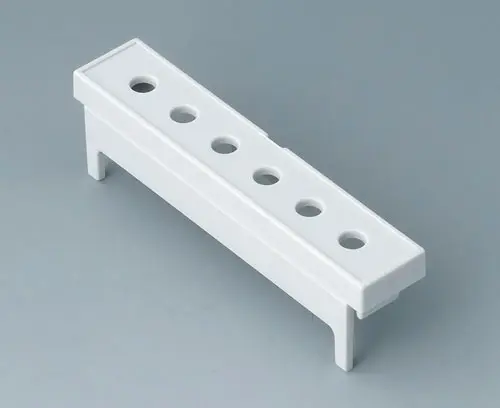

B6803115 Terminal guards, with holes, 10.16

B6803115

Terminal guards, with holes, 10.16 Easy assembly through snap-in installation of the case parts.

Version 6 poles (designed to allow the use of terminals, block 10.16)

Supply 1 piece

B6803115

Terminal guards, with holes, 10.16
Producto añadido a su lista

light grey

Accessory

B6803100 Front panel, 4 modules

B6803100

Front panel, 4 modules Snap-in.

Supply 1 front panel

B6803100

Front panel, 4 modules
Producto añadido a su lista

light grey
67x42mm

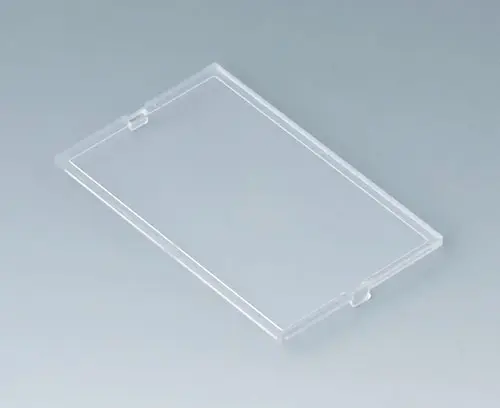

B6803200 Front panel, 4 modules

B6803200

Front panel, 4 modules Snap-in.

Supply 1 front panel

B6803200

Front panel, 4 modules
Producto añadido a su lista

transparent
67x42mm

Customising options for B6703102

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Color
Bottom and top part light grey,
Locking clip black/translucent
Standards
RoHS compliant
DIN EN 60715 TH35
REACH compliant
Anchura
71 mm
Altura
90 mm
Profundidad
58 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Miscellaneous information

Weight/1 part
46 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
UK
