B6702106 RAILTEC C, 3 modules, Vers. IV

B6702106

RAILTEC C, 3 modules, Vers. IV

Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version

Front closed, connection side with free through passage

Supply

1 bottom part, 2 clips, 1 top part

  • Componentes adecuados
  • Modificaciones específicas del cliente

Accessory "wall/holder"

B6811542 Adapter

B6811542

Adapter Suitable for DIN EN 60715 (TH35), EN 60715 (G32) and EN 60715 (TH15).

Supply 1 piece

Cerrar

B6811542

Adapter
Producto añadido a su lista
PA 6 (UL 94 V-0)
green

Accessory "terminals"

B6601222 Plug header, block 5.08

B6601222

Plug header, block 5.08 Male terminal block, 5.08. 5-pin.

Supply 1 piece

Cerrar

B6601222

Plug header, block 5.08
Producto añadido a su lista
PA 6 (UL 94 V-0)
B6601223 Plug header, block 5.08

B6601223

Plug header, block 5.08 Female terminal block, 5.08. 5-pin.

Supply 1 piece

Cerrar

B6601223

Plug header, block 5.08
Producto añadido a su lista
PA 6 (UL 94 V-0)
B6602222 Plug header, block 5.08

B6602222

Plug header, block 5.08 Male terminal block, 5.08. 9-pin.

Supply 1 piece

Cerrar

B6602222

Plug header, block 5.08
Producto añadido a su lista
PA 6 (UL 94 V-0)
B6602223 Plug header, block 5.08

B6602223

Plug header, block 5.08 Female terminal block, 5.08. 9-pin.

Supply 1 piece

Cerrar

B6602223

Plug header, block 5.08
Producto añadido a su lista
PA 6 (UL 94 V-0)
B6606222 Plug header, block 5.08

B6606222

Plug header, block 5.08 Male terminal block, 5.08. 2-pin.

Supply 1 piece

Cerrar

B6606222

Plug header, block 5.08
Producto añadido a su lista
PA 6 (UL 94 V-0)
B6606223 Plug header, block 5.08

B6606223

Plug header, block 5.08 Female terminal block, 5.08. 2-pin.

Supply 1 piece

Cerrar

B6606223

Plug header, block 5.08
Producto añadido a su lista
PA 6 (UL 94 V-0)
B6802650 Terminal block, block 5.08

B6802650

Terminal block, block 5.08 PCB terminal block, 5.08. 9-pin.

Supply 1 piece

Cerrar

B6802650

Terminal block, block 5.08
Producto añadido a su lista
PA 68 (UL 94 V-0)
light grey

Accessory "terminal guards"

B6802111 Terminal guards, closed

B6802111

Terminal guards, closed Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

Cerrar

B6802111

Terminal guards, closed
Producto añadido a su lista
PC (UL 94 V-0)
light grey
B6802112 Terminal guards, perforated, 5.08

B6802112

Terminal guards, perforated, 5.08 Easy assembly through snap-in installation of the case parts.

Version 9 poles (designed to allow the use of terminals, block 5.08)

Supply 1 piece

Cerrar

B6802112

Terminal guards, perforated, 5.08
Producto añadido a su lista
PC (UL 94 V-0)
light grey
B6802113 Terminal guards, with holes, 5.08

B6802113

Terminal guards, with holes, 5.08 Easy assembly through snap-in installation of the case parts.

Version 9 poles (designed to allow the use of terminals, block 5.08)

Supply 1 piece

Cerrar

B6802113

Terminal guards, with holes, 5.08
Producto añadido a su lista
PC (UL 94 V-0)
light grey
B6802114 Terminal guards, with holes, 7.5 & 7.62

B6802114

Terminal guards, with holes, 7.5 & 7.62 Easy assembly through snap-in installation of the case parts.

Version 6 poles (designed to allow the use of terminals, block 7.5 & 7.62)

Supply 1 piece

Cerrar

B6802114

Terminal guards, with holes, 7.5 & 7.62
Producto añadido a su lista
PC (UL 94 V-0)
light grey
B6802115 Terminal guards, with holes, 10.16

B6802115

Terminal guards, with holes, 10.16 Easy assembly through snap-in installation of the case parts.

Version 5 poles (designed to allow the use of terminals, block 10.16)

Supply 1 piece

Cerrar

B6802115

Terminal guards, with holes, 10.16
Producto añadido a su lista
PC (UL 94 V-0)
light grey

Accessory

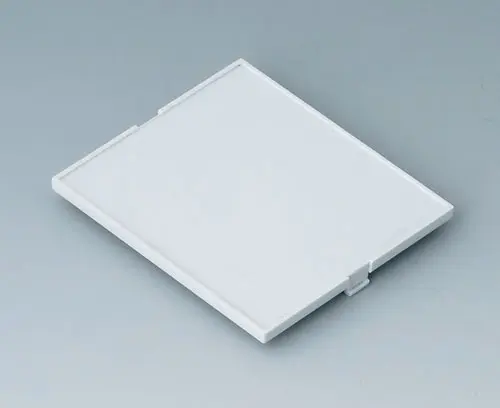

B6802100 Front panel, 3 modules

B6802100

Front panel, 3 modules Snap-in.

Supply 1 front panel

Cerrar

B6802100

Front panel, 3 modules
Producto añadido a su lista
PC (UL 94 V-0)
light grey
49x42mm

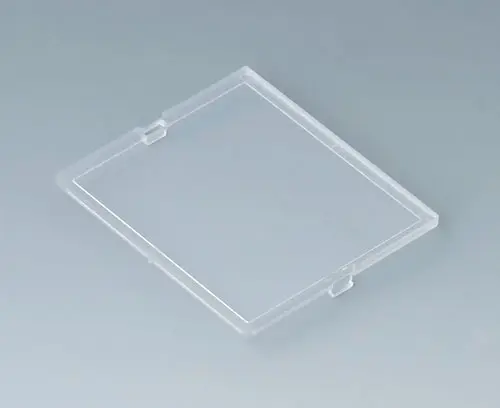

B6802200 Front panel, 3 modules

B6802200

Front panel, 3 modules Snap-in.

Supply 1 front panel

Cerrar

B6802200

Front panel, 3 modules
Producto añadido a su lista
PC (UL 94 V-0)
transparent
49x42mm

Customising options for B6702106

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Datos técnicos
  • Planos / Documentos
  • Purchasing Data
Color
Bottom and top part light grey,
Locking clip black/translucent
Standards
Width
53 mm
Height
90 mm
Depth
58 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
44 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
U.K.
