B6700100 RAILTEC C, 1 module, Vers. I

B6700100

RAILTEC C, 1 module, Vers. I

Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version

Front open, connection side with free through passage

Supply

1 bottom part, 2 clips, 1 top part

  • Componentes adecuados
  • Modificaciones específicas del cliente

Accessory "wall/holder"

B6811542 Adapter

B6811542

Adapter Suitable for DIN EN 60715 (TH35), EN 60715 (G32) and EN 60715 (TH15).

Supply 1 piece

Cerrar

B6811542

Adapter
Producto añadido a su lista
PA 6 (UL 94 V-0)
green

Accessory "terminals"

B6606222 Plug header, block 5.08

B6606222

Plug header, block 5.08 Male terminal block, 5.08. 2-pin.

Supply 1 piece

Cerrar

B6606222

Plug header, block 5.08
Producto añadido a su lista
PA 6 (UL 94 V-0)
B6606223 Plug header, block 5.08

B6606223

Plug header, block 5.08 Female terminal block, 5.08. 2-pin.

Supply 1 piece

Cerrar

B6606223

Plug header, block 5.08
Producto añadido a su lista
PA 6 (UL 94 V-0)

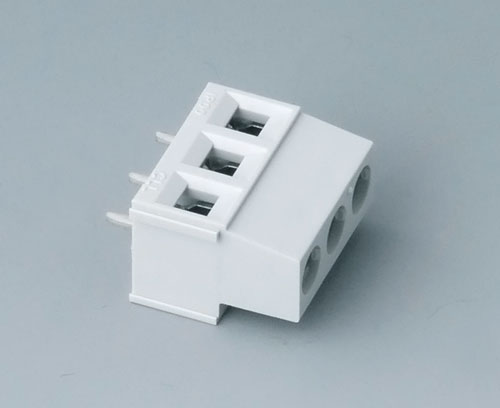

B6800650 Terminal block, block 5.08

B6800650

Terminal block, block 5.08 PCB terminal block, 5.08. 3-pin.

Supply 1 piece

Cerrar

B6800650

Terminal block, block 5.08
Producto añadido a su lista
PA 68 (UL 94 V-0)
light grey

Accessory "terminal guards"

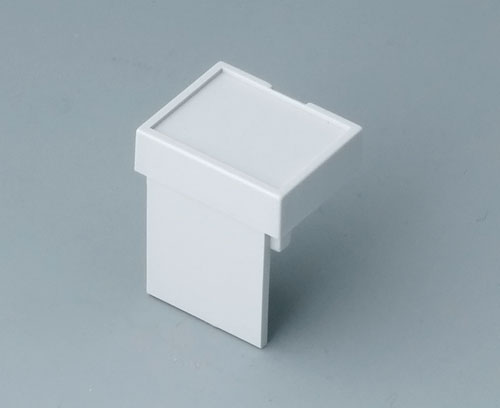

B6800111 Terminal guards, closed

B6800111

Terminal guards, closed Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

Cerrar

B6800111

Terminal guards, closed
Producto añadido a su lista
PC (UL 94 V-0)
light grey

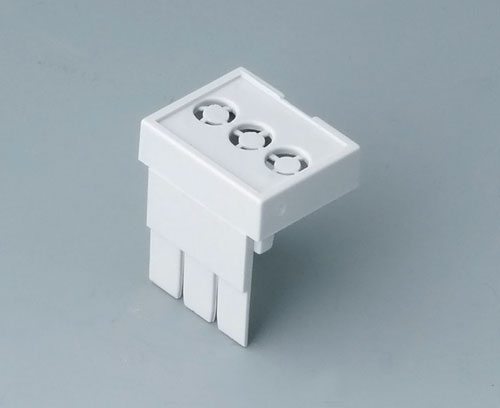

B6800112 Terminal guards, perforated, 5.08

B6800112

Terminal guards, perforated, 5.08 Easy assembly through snap-in installation of the case parts.

Version 3 poles (designed to allow the use of terminals, block 5,08)

Supply 1 piece

Cerrar

B6800112

Terminal guards, perforated, 5.08
Producto añadido a su lista
PC (UL 94 V-0)
light grey

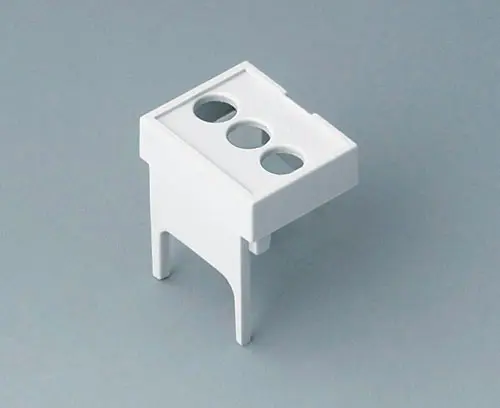

B6800113 Terminal guards, with holes, 5.08

B6800113

Terminal guards, with holes, 5.08 Easy assembly through snap-in installation of the case parts.

Version 3 poles (designed to allow the use of terminals, block 5,08)

Supply 1 piece

Cerrar

B6800113

Terminal guards, with holes, 5.08
Producto añadido a su lista
PC (UL 94 V-0)
light grey

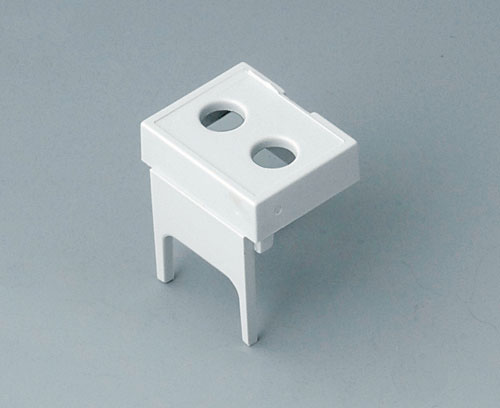

B6800114 Terminal guards, with holes, 7.5 & 7.62

B6800114

Terminal guards, with holes, 7.5 & 7.62 Easy assembly through snap-in installation of the case parts.

Version 2 poles (designed to allow the use of terminals, block 7,5 & 7,62)

Supply 1 piece

Cerrar

B6800114

Terminal guards, with holes, 7.5 & 7.62
Producto añadido a su lista
PC (UL 94 V-0)
light grey
B6800115 Terminal guards, with holes, 10.16

B6800115

Terminal guards, with holes, 10.16 Easy assembly through snap-in installation of the case parts.

Version 2 poles (designed to allow the use of terminals, block 10,16).

Supply 1 piece

Cerrar

B6800115

Terminal guards, with holes, 10.16
Producto añadido a su lista
PC (UL 94 V-0)
light grey

Accessory

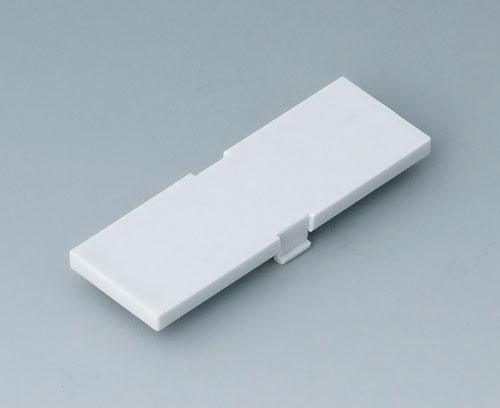

B6800100 Front panel, 1 module

B6800100

Front panel, 1 module Snap-in.

Supply 1 front panel

Cerrar

B6800100

Front panel, 1 module
Producto añadido a su lista
PC (UL 94 V-0)
light grey
14x42mm

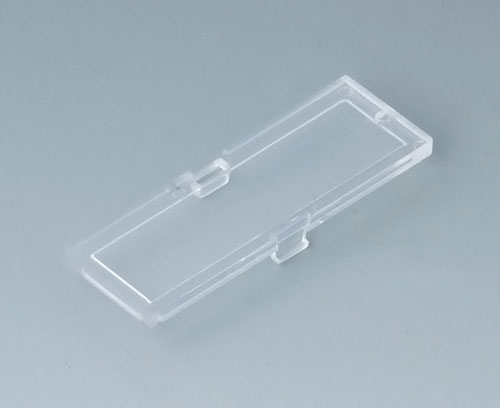

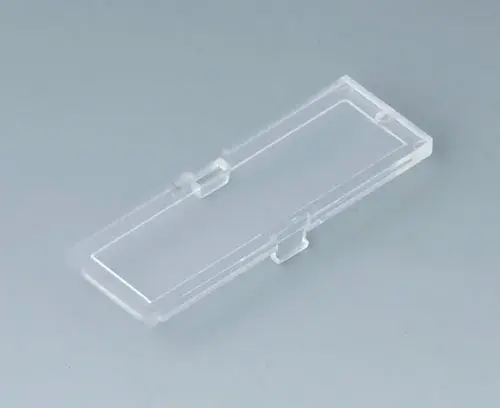

B6800200 Front panel, 1 module

B6800200

Front panel, 1 module Snap-in.

Supply 1 front panel

Cerrar

B6800200

Front panel, 1 module
Producto añadido a su lista
PC (UL 94 V-0)
transparent
14x42mm

Customising options for B6700100

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Datos técnicos
  • Planos / Documentos
  • Purchasing Data
Color
Bottom and top part light grey,
Locking clip black/translucent
Standards
Width
17,5 mm
Height
90 mm
Depth
58 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
26 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
U.K.
