Accesorios para cajas
B6608142

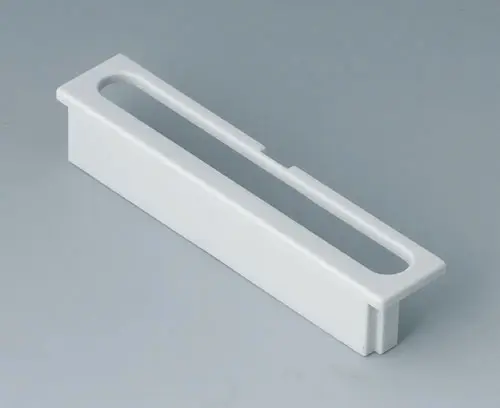

Terminal guards, flat
Easy assembly through snap-in installation of the case parts.
VersionFor terminal block, block 5.0, 9-poles
Supply1 piece
Plano 2D en PDF
Descarga 3D/2D
Descarga 3D/2D
Cree su ficha de datos en PDF para B6608142
Seleccione la información del producto para su ficha de datos.
Añadir a la cesta de la compra
B6502121
RAILTEC B, 3 modules, Vers. VI
Enclosure with open connection sides - for max. 4 terminal guards in flat version, 2 terminal guards in high version or 2 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.
Version Individual configuration see accessories
Supply 1 base part with locking clip, 1 top part
B6502121
RAILTEC B, 3 modules, Vers. VIProducto añadido a su lista
light grey RAL 7035
52,5x90x58mm
B6504121
RAILTEC B, 6 modules, Vers. VI
Enclosure with open connection sides - for max. 8 terminal guards in flat version, 4 terminal guards in high version or 4 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.
Version Individual configuration see accessories
Supply 1 base part with locking clip, 1 top part
B6504121
RAILTEC B, 6 modules, Vers. VIProducto añadido a su lista
light grey RAL 7035
105x90x58mm
B6504229
RAILTEC B, 6 modules, Vers. low profile
Enclosure with open connection sides in flat version - for max. 4 terminal guards in flat version (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers.
Version Individual configuration see accessories
Supply 1 base part with locking clip, 1 top part
B6504229
RAILTEC B, 6 modules, Vers. low profileProducto añadido a su lista
light grey RAL 7035
105x89,6x31,25mm
B6505121
RAILTEC B, 9 modules, Vers. VI
Enclosure with open connection sides - for max. 12 terminal guards in flat version, 6 terminal guards in high version or 6 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.
Version Individual configuration see accessories
Supply 1 base part with locking clip, 1 top part
B6505121
RAILTEC B, 9 modules, Vers. VIProducto añadido a su lista
light grey RAL 7035
157x90x58mm
B6505229
RAILTEC B, 9 modules, Vers. low profile
Enclosure with open connection sides in flat version - for max. 6 terminal guards in flat version (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers.
Version Individual configuration see accessories
Supply 1 base part with locking clip, 1 top part
B6505229
RAILTEC B, 9 modules, Vers. low profileProducto añadido a su lista
light grey RAL 7035
157,5x89,6x31,25mm
B6506121
RAILTEC B, 12 modules, Vers. VI
Enclosure with open connection sides - for max. 16 terminal guards in flat version, 8 terminal guards in high version or 8 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.
Version Individual configuration see accessories
Supply 1 base part with locking clip, 1 top part
B6506121
RAILTEC B, 12 modules, Vers. VIProducto añadido a su lista
light grey RAL 7035
210x90x58mm
Customising options for B6608142
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Datos técnicos
-
Modelos 3D & Planos / Documentos
- Purchasing Data
Pitch
5.0 mm
Poles
9
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 83 KB
- AutoCAD DWG-File 254 KB
- AutoCAD DXF-File 718 KB
Weight/1 part
1 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Denmark
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para B6608142 y no olvide solicitar presupuesto.
