Accesorios para cajas
B6502119

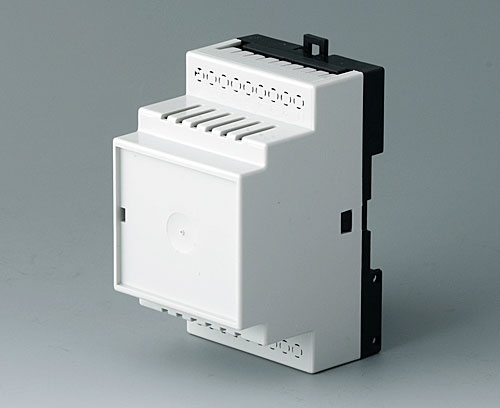

RAILTEC B, 3 modules, Vers. V
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
VersionWith perforations for max. 18 terminal blocks 5.0 or 2 plug headers 9-pin
Supply1 base part with locking clip, 1 top part
Plano 2D en PDF
Vista en 3D en PDF
Descarga 3D/2D
Descarga 3D/2D
Cree su ficha de datos en PDF para B6502119
Seleccione la información del producto para su ficha de datos.
Añadir a la cesta de la compra
Accessory "wall/holder"
B6600334
Wall suspension elements
For direct mounting on walls. Assembly without screws in the base part (RAILTEC B).
Supply 2 pieces as kit
B6600334
Wall suspension elementsProducto añadido a su lista
black
Accessory "terminals"
B6602223
Plug header, block 5.08
Female terminal block, 5.08. 9-pin.
Supply 1 piece
B6602223
Plug header, block 5.08Producto añadido a su lista
B6608111
Terminal block, block 5.0
PCB terminal block, 5.0. 9-pin.
Supply 1 piece
B6608111
Terminal block, block 5.0Producto añadido a su lista
Accessory "screws"
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)Producto añadido a su lista
Accessory
B6602100
Lid, 3 modules
Locking lid for protecting the display and operating elements.
Supply 1 lid
B6602100
Lid, 3 modulesProducto añadido a su lista
transparent
Customising options for B6502119
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Datos técnicos
-
Modelos 3D & Planos / Documentos
- Purchasing Data
Material
Top part
Bottom part
Color
Top part
light grey RAL 7035,
Bottom part black,
Locking clip black
Bottom part black,
Locking clip black
Standards
Anchura
52,5 mm
Altura
86 mm
Profundidad
58 mm
PCB length, base
82 mm
PCB width, base
46,7 mm
Poles
≤ 18
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 275 KB
- AutoCAD DWG-File 637 KB
- AutoCAD DXF-File 2.382 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 410 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00014699.x_t 3.898 KB
- 00014699.step 8.924 KB
- 00014699.sat 7.209 KB
Miscellaneous information
- Max. size of PCB in mm 568 KB
Weight/1 part
44 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Denmark
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para B6502119 y no olvide solicitar presupuesto.
