A9257507
Case feet, Vers. II

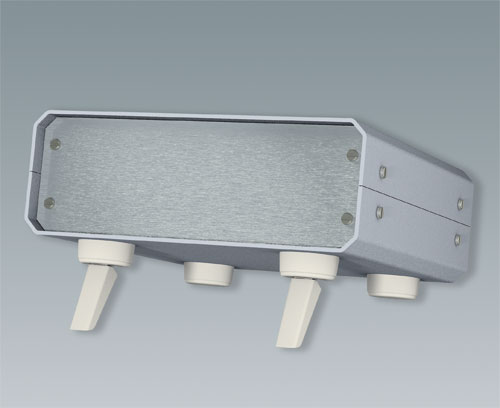

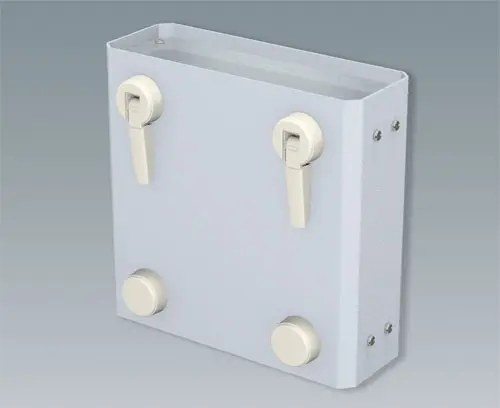

Universal case feet for all types of plastic and metal enclosures with max. 3 mm wall thickness. The tilt legs provide an ergonomic reading angle of the unit. It simply snaps into the feet section and is retractable.
VersionWith tilt legs
Supply4 foot mouldings, 4 rubber inserts, 2 tilt legs, 4 self-tapping screws
Plano 2D en PDF
Vista en 3D en PDF
Descarga 3D/2D
Descarga 3D/2D
Cree su ficha de datos en PDF para A9257507
Seleccione la información del producto para su ficha de datos.
Añadir a la cesta de la compra
- Datos técnicos
-
Modelos 3D & Planos / Documentos
- Purchasing Data
Diámetro
⌀ 30 mm
Altura
12 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 174 KB
- AutoCAD DWG-File 311 KB
- AutoCAD DXF-File 952 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 2.223 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00020305.x_t 1.495 KB
- 00020305.step 2.576 KB
- 00020305.sat 6.914 KB
Weight/1 part
32 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
UK
