A9250819

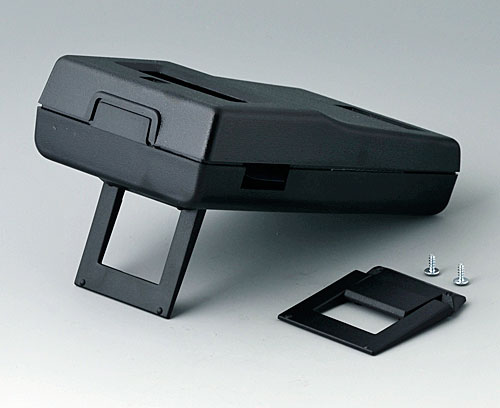

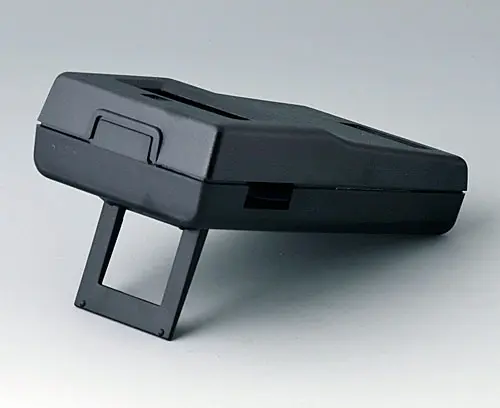

Tilt foot bar

Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply

1 tilt foot bar, assembly kit

Cree su ficha de datos en PDF para A9250819

Seleccione la información del producto para su ficha de datos.

Añadir a la cesta de la compra Añadir a la cesta de la compra Añadir a la cesta de la compra
Producto añadido a su lista
Continuar o abrir la cesta de la compra

System components to complete

A9060009 HAND-HELD-BOX P, Vers. I

A9060009

HAND-HELD-BOX P, Vers. I Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version With lateral recess for rocker switch

Supply Top and base part, battery compartment lid, assembly kit

A9060009

HAND-HELD-BOX P, Vers. I
Producto añadido a su lista

black RAL 9005
145x80x36,5mm
A9060019 HAND-HELD-BOX P, Vers. II

A9060019

HAND-HELD-BOX P, Vers. II Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version Without lateral recess

Supply Top and base part, battery compartment lid, assembly kit

A9060019

HAND-HELD-BOX P, Vers. II
Producto añadido a su lista

black RAL 9005
145x80x36,5mm
A9062019 HAND-HELD-BOX M, Vers. I

A9062019

HAND-HELD-BOX M, Vers. I Small hand-held case with excellent design. With recessed area, e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Battery compartment accessible from the outside with locked battery compartment lid. Raised front area to accommodate plugs.

Version With battery compartment for 9 V flat batteries (PP3) or 1.5 V baby cells (C)

Supply Top and base part, battery compartment lid, assembly kit

A9062019

HAND-HELD-BOX M, Vers. I
Producto añadido a su lista

black RAL 9005
145x80x38,5mm

Accessory

A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

A9207150

Anti-slide feet 6.5 x 2 mm
Producto añadido a su lista
transparent

Customising options for A9250819

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Color
black RAL 9005
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
5 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany

Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para A9250819 y no olvide solicitar presupuesto.
