Accesorios para cajas
B3115100

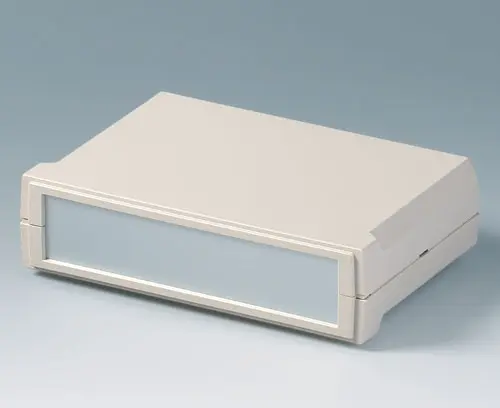

Front / rear panel S
Suitable for MOTEC S B3015117 with flat base and top part.
Supply1 front panel
Plano 2D en PDF
Descarga 3D/2D
Descarga 3D/2D
Cree su ficha de datos en PDF para B3115100
Seleccione la información del producto para su ficha de datos.
Añadir a la cesta de la compra
B3015117
MOTEC S, flat/flat
Desk top case with flat base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.
Supply 1 top and base part, 4 self-adhesive case feet
B3015117
MOTEC S, flat/flatProducto añadido a su lista
off-white RAL 9002
155x105x40mm
Customising options for B3115100
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Datos técnicos
-
Modelos 3D & Planos / Documentos
- Purchasing Data
Anchura
136 mm
Altura
32 mm
Grosor
1,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 75 KB
- AutoCAD DWG-File 264 KB
- AutoCAD DXF-File 639 KB
Weight/1 part
17 g
Customs tariff number
(OKW product)
(OKW product)
76069200
Country of manufacture
Germany
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para B3115100 y no olvide solicitar presupuesto.
