B9006906

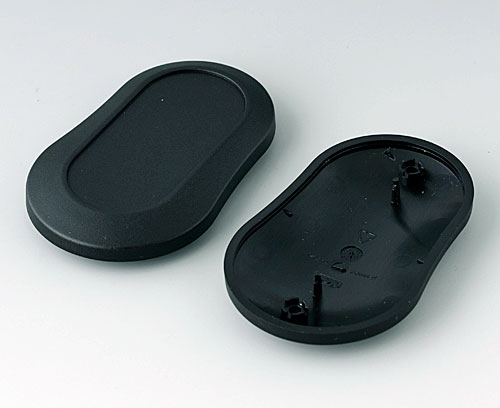

Bottom and top part DL

Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring DL as separate article necessary.

Supply

1 top and bottom part DL, 2 self-tapping screws

Plano 2D en PDF
Vista en 3D en PDF
Descarga 3D/2D

Cree su ficha de datos en PDF para B9006906

Seleccione la información del producto para su ficha de datos.

Añadir a la cesta de la compra Añadir a la cesta de la compra Añadir a la cesta de la compra
Producto añadido a su lista
Continuar o abrir la cesta de la compra

System components to complete

B9006302 Intermediate ring DL

B9006302

Intermediate ring DL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring DL

B9006302

Intermediate ring DL
Producto añadido a su lista

lava

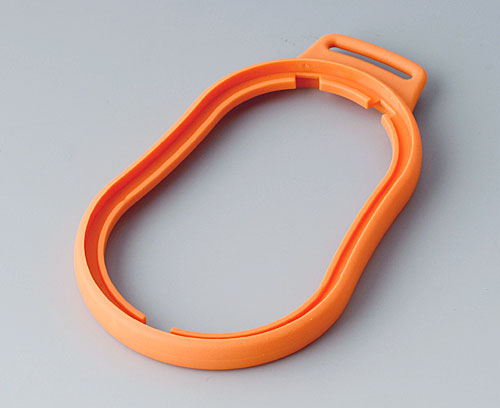

B9006303 Intermediate ring DL

B9006303

Intermediate ring DL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring DL

B9006303

Intermediate ring DL
Producto añadido a su lista

orange
B9006304 Intermediate ring DL

B9006304

Intermediate ring DL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring DL

B9006304

Intermediate ring DL
Producto añadido a su lista

green
B9006305 Intermediate ring DL

B9006305

Intermediate ring DL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring DL

B9006305

Intermediate ring DL
Producto añadido a su lista

blue
B9006306 Intermediate ring DL

B9006306

Intermediate ring DL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together.

Supply 1 intermediate ring DL

B9006306

Intermediate ring DL
Producto añadido a su lista

black RAL 9005

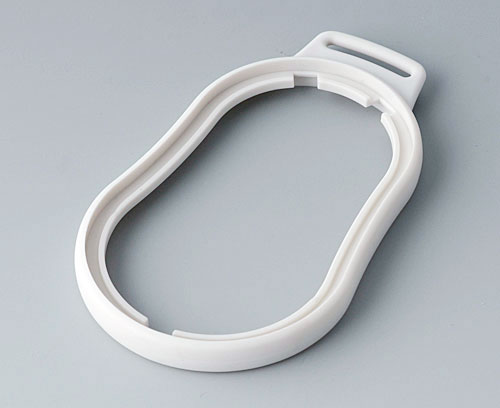

B9006307 Intermediate ring DL

B9006307

Intermediate ring DL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring DL

B9006307

Intermediate ring DL
Producto añadido a su lista

off-white RAL 9002
B9006308 Intermediate ring DL

B9006308

Intermediate ring DL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring DL

B9006308

Intermediate ring DL
Producto añadido a su lista

volcano
B9006309 Intermediate ring DL

B9006309

Intermediate ring DL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together.

Supply 1 intermediate ring DL

B9006309

Intermediate ring DL
Producto añadido a su lista

black RAL 9005

Accessory "carrying"

A9164001 Key ring

A9164001

Key ring Version: diameter = 20.5 mm.

Supply 1 key ring

A9164001

Key ring
Producto añadido a su lista

nickel-plated
20,5mm
B9100063 Carrying strap, textile lanyard

B9100063

Carrying strap, textile lanyard Textile lanyard with loop attachment.

ATTENTION, PART TO BE DISCONTINUED:
The article is only available in limited quantities. Please ask for it!

Supply 1 lanyard

B9100063

Carrying strap, textile lanyard
Producto añadido a su lista
black
860mm
B9100073 Carrying strap, textile lanyard

B9100073

Carrying strap, textile lanyard Textile lanyard with snap safety clip.

Supply 1 lanyard

B9100073

Carrying strap, textile lanyard
Producto añadido a su lista
black
914x16mm

Customising options for B9006906

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Color
black RAL 9005
Standards
RoHS compliant
REACH compliant
Longitud
84 mm
Anchura
53 mm
Altura
19 mm
PCB length, base
56 mm
PCB width, base
44,8 mm
Keypad length
64 mm
Keypad width
30,2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
25 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany

Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para B9006906 y no olvide solicitar presupuesto.
