Accesorios para cajas
B9004308

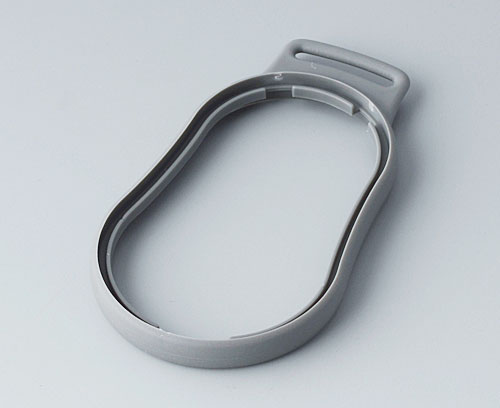

Intermediate ring DM
Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.
Supply1 intermediate ring DM
Plano 2D en PDF
Vista en 3D en PDF
Descarga 3D/2D
Descarga 3D/2D
Cree su ficha de datos en PDF para B9004308
Seleccione la información del producto para su ficha de datos.
Añadir a la cesta de la compra
System components to complete
B9004906
Bottom and top part DM
Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring DM as separate article necessary.
Supply 1 top and bottom part DM, 1 self-tapping screw
B9004906
Bottom and top part DMProducto añadido a su lista
black RAL 9005
70x44x16mm

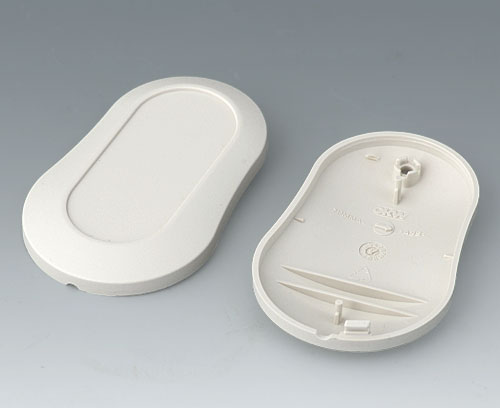

B9004907
Bottom and top part DM
Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring DM as separate article necessary.
Supply 1 top and bottom part DM, 1 self-tapping screw
B9004907
Bottom and top part DMProducto añadido a su lista
off-white RAL 9002
70x44x16mm
B9004908
Bottom and top part DM
Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring DM as separate article necessary.
Supply 1 top and bottom part DM, 1 self-tapping screw
B9004908
Bottom and top part DMProducto añadido a su lista
lava
70x44x16mm
Accessory "carrying"
A9164001
Key ring
Version: diameter = 20.5 mm.
Supply 1 key ring
A9164001
Key ringProducto añadido a su lista
nickel-plated
20,5mm
B9100063
Carrying strap, textile lanyard
Textile lanyard with loop attachment.
ATTENTION, PART TO BE DISCONTINUED:
The article is only available in limited quantities. Please ask for it!
Supply 1 lanyard
B9100063
Carrying strap, textile lanyardProducto añadido a su lista
860mm
B9100073
Carrying strap, textile lanyard
Textile lanyard with snap safety clip.
Supply 1 lanyard
B9100073
Carrying strap, textile lanyardProducto añadido a su lista
914x16mm
Customising options for B9004308
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Datos técnicos
-
Modelos 3D & Planos / Documentos
- Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 267 KB
- AutoCAD DWG-File 353 KB
- AutoCAD DXF-File 1.099 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 230 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00012602.x_t 312 KB
- 00012602.STEP 831 KB
- 00012602.SAT 661 KB
Weight/1 part
3 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para B9004308 y no olvide solicitar presupuesto.
