B4042837

Base S - charging station, case deposit mobile

Assembly unit: Suitable for case with battery compartment or bottom panel with handle recess. Ergonomically designed for desktop and for wall mounting favorable. Can be equipped either for installing the case for desktop applications or with a snap-in mechanism for secure wall mounted and desktop applications. Case position vertically or horizontally, depending on the application - see assembly instruction. Contacts for simple data and charging current transfer as accessories.

Supply

1 base, 1 base cover, 2 covers, assembly kit

Plano 2D en PDF
Vista en 3D en PDF
Descarga 3D/2D

Cree su ficha de datos en PDF para B4042837

Seleccione la información del producto para su ficha de datos.

Añadir a la cesta de la compra Añadir a la cesta de la compra Añadir a la cesta de la compra
Producto añadido a su lista
Continuar o abrir la cesta de la compra

System components to complete

B4042407 Cover S

B4042407

Cover S Assembly unit: suitable for bottom part vers. I. For protecting the electronics. Integrated screw pillars for PCB fixing. Recessed operating area for protecting the membrane keyboard. Fixing from the rear.

Supply 1 cover, assembly kit

B4042407

Cover S
Producto añadido a su lista

off-white RAL 9002
190x135x14mm
B4042707 Bottom part S flat, version I

B4042707

Bottom part S flat, version I Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.

Version Suitable for mounting cover or aluminium front panel (sep. article)

Supply 1 bottom part flat

B4042707

Bottom part S flat, version I
Producto añadido a su lista

off-white RAL 9002
190x135x24,5mm
B4042717 Bottom part S flat, version II

B4042717

Bottom part S flat, version II Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.

Version Suitable for mounting ABS front panel or glass panel (sep. article)

Supply 1 bottom part flat

B4042717

Bottom part S flat, version II
Producto añadido a su lista

off-white RAL 9002
190x135x24,5mm
B4042757 Bottom part S high, version I

B4042757

Bottom part S high, version I Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.

Version Suitable for mounting cover or aluminium front panel (sep. article)

Supply 1 bottom part high

B4042757

Bottom part S high, version I
Producto añadido a su lista

off-white RAL 9002
190x135x34,5mm
B4042767 Bottom part S high, version II

B4042767

Bottom part S high, version II Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.

Version Suitable for mounting ABS front panel or glass panel (sep. article)

Supply 1 bottom part high

B4042767

Bottom part S high, version II
Producto añadido a su lista

off-white RAL 9002
190x135x34,5mm
B4142047 Battery compartment and lid S, 5 x AA

B4142047

Battery compartment and lid S, 5 x AA Assembly unit: suitable for bottom part vers. I and II, screw fixing. Battery clips for 5 x AA, tin-plated. Protection against incorrect polarity as well as anti-rotation device.

Supply 1 battery compartment and lid, assembly kit

B4142047

Battery compartment and lid S, 5 x AA
Producto añadido a su lista

off-white RAL 9002
B4142106 Front panel S

B4142106

Front panel S Assembly unit: suitable for bottom part vers. I. For mounting operating elements of all kinds.

Supply 1 front panel, assembly kit

B4142106

Front panel S
Producto añadido a su lista

matt anodised
186,5x131,5x2mm
B4142107 Front panel S

B4142107

Front panel S Assembly unit: suitable for bottom part vers. II. For mounting operating elements of all kinds.

Supply 1 front panel, assembly kit

B4142107

Front panel S
Producto añadido a su lista

off-white RAL 9002
190,6x135,6x14,5mm
B4142167 Bottom panel with handle recess S

B4142167

Bottom panel with handle recess S Assembly unit: suitable for bottom part vers. I and II, screw fixing.

Supply 1 bottom panel, assembly kit

B4142167

Bottom panel with handle recess S
Producto añadido a su lista

off-white RAL 9002
B4142203 Glass panel S

B4142203

Glass panel S Assembly unit: suitable for bottom part vers. II. Front design without printing. Various media and environmental parameters affect the adhesion of the adhesive foil. Please check before use if it is suitable for your application.

Version Safety glass with anti-reflex coating, high scratch-resistance, very easy to clean

Supply 1 glass panel incl. mounting frame and adhesive foil

B4142203

Glass panel S
Producto añadido a su lista

clear
190,6x135,6x16,7mm

Accessory "protection"

B4142005 Sealing S (bottom part - front design)

B4142005

Sealing S (bottom part - front design) For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).

Supply 1 sealing

B4142005

Sealing S (bottom part - front design)
Producto añadido a su lista

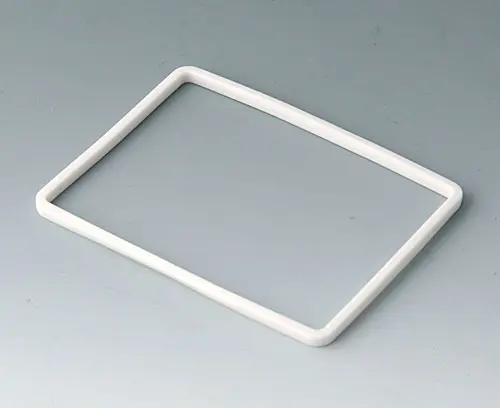

B4142006 Sealing S (bottom part - base/bot. panel/bat. comp...)

B4142006

Sealing S (bottom part - base/bot. panel/bat. comp...) For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).

Supply 1 sealing

B4142006

Sealing S (bottom part - base/bot. panel/bat. comp...)
Producto añadido a su lista

Accessory

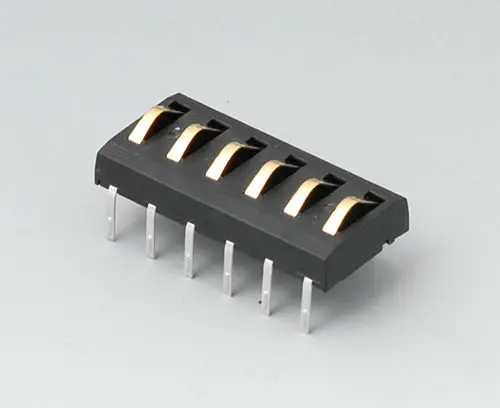

A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

A9178007

Contacts, male
Producto añadido a su lista
gold-plated
A9178008 Contacts, female

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

A9178008

Contacts, female
Producto añadido a su lista
gold-plated

Customising options for B4042837

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Color
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Anchura
123 mm
Profundidad
123 mm
Altura
60 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Group)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
169 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany

Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para B4042837 y no olvide solicitar presupuesto.
