AltText

A0336370

Front / rear panel 63 TE 3 HE

Front/rear panel for case 63 TE 3 HE.

Supply

1 front panel

  • Utilizado para
  • Modificaciones específicas del cliente
AltText

A0116170

Shell 63 TE The case shells (2 pcs necessary) safely lock with each other by pressure. With injection-moulded fixing towers for PCB mounting. For combination with side panel and snap-in panel (separate Article).

Supply 1 shell

Cerrar

A0116170

Shell 63 TE
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
367x250x27mm
AltText

A0116370

Snap-in panel, without slots Snap-in panel without slots for the top. For locking in the case shells.

Supply 1 snap-in panel without slots

Cerrar

A0116370

Snap-in panel, without slots
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
AltText

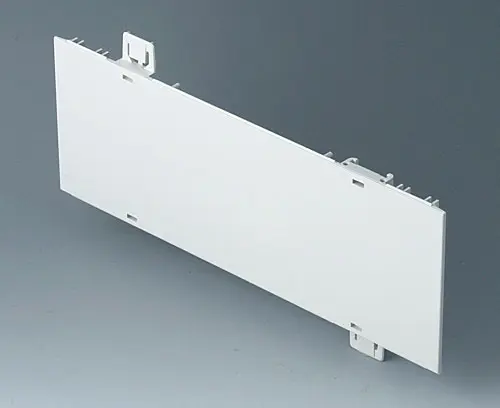

A0120270

Side panel 2 HE Side panel 2 HE for enlarging the height. For combination with case shell (safely locks with each other by pressure).

Supply 1 side panel

Cerrar

A0120270

Side panel 2 HE
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
250x88,9mm
AltText

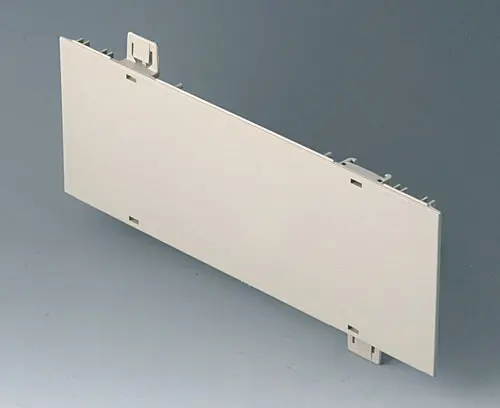

A0120280

Side panel 2 HE Side panel 2 HE for enlarging the height. For combination with case shell (safely locks with each other by pressure).

Supply 1 side panel

Cerrar

A0120280

Side panel 2 HE
Producto añadido a su lista
ABS (UL 94 HB)
pebble grey RAL 7032
250x88,9mm
AltText

A0121270

Side panel 2 HE, for handle mounting Side panel 2 HE with hole for handle for enlarging the height. For combination with case shell (safely locks with each other by pressure).

Supply 1 side panel

Cerrar

A0121270

Side panel 2 HE, for handle mounting
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
250x88,9mm
AltText

A0121280

Side panel 2 HE, for handle mounting Side panel 2 HE with hole for handle for enlarging the height. For combination with case shell (safely locks with each other by pressure).

Supply 1 side panel

Cerrar

A0121280

Side panel 2 HE, for handle mounting
Producto añadido a su lista
ABS (UL 94 HB)
pebble grey RAL 7032
250x88,9mm
AltText

A0126370

Snap-in panel, with slots Snap-in panel with slots for the top. For locking in the case shells.

Supply 1 snap-in panel with slots

Cerrar

A0126370

Snap-in panel, with slots
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
AltText

A0136370

Snap-in panel, without slots, with feet Snap-in panel without slots, with feet for the bottom. For locking in the case shells. For combination with tolt feet (see accessory).

Supply 1 snap-in panel without slots

Cerrar

A0136370

Snap-in panel, without slots, with feet
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
AltText

A0146370

Snap-in panel, with slots, with feet Nap-in panel with slots, with feet for the bottom. For locking in the case shells. For the combination with tilt feet (see accessory).

Supply 1 snap-in panel with slots

Cerrar

A0146370

Snap-in panel, with slots, with feet
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
AltText

A0236070

EURO CASE 63 TE, without handle Modular construction without screws. Fixing support in the shells and side panels.

Supply 2 shells, 2 side panels 2 HE, 2 snap-in panels without slots, 2 snap-in panels without slots, with feet

Cerrar

A0236070

EURO CASE 63 TE, without handle
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
367x250x143mm
AltText

A0236170

EURO CASE 63 TE, without handle Modular construction without screws. Fixing support in the shells and side panels.

Supply 2 shells, 2 side panels 2 HE, 1 snap-in panel without/with slots each, 1 snap-in panel without/with slots, with feet each

Cerrar

A0236170

EURO CASE 63 TE, without handle
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
367x250x143mm
AltText

A0236270

EURO CASE 63 TE, without handle Modular construction without screws. Fixing support in the shells and side panels.

Supply 2 shells, 2 side panels 2 HE, 2 snap-in panels with slots, 2 snap-in panels with slots, with feet

Cerrar

A0236270

EURO CASE 63 TE, without handle
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
367x250x143mm
AltText

A0236470

EURO CASE 63 TE, with handle Modular construction without screws with handle. Fixing support in the shells and side panels.

Supply 2 shells, 2 side panels 2 HE with hole, 2 snap-in panels without slots, 2 snap-in panels without slots, with feet, 1 handle

Cerrar

A0236470

EURO CASE 63 TE, with handle
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
367x250x143mm
AltText

A0236570

EURO CASE 63 TE, with handle Modular construction without screws with handle. Fixing support in the shells and side panels.

Supply 2 shells, 2 side panels 2 HE with hole, 1 snap-in panel without/with slots each, 1 snap-in panel without/with slots, with feet each, 1 handle

Cerrar

A0236570

EURO CASE 63 TE, with handle
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
367x250x143mm
AltText

A0236670

EURO CASE 63 TE, with handle Modular construction without screws with handle. Fixing support in the shells and side panels.

Supply 2 shells, 2 side panels 2 HE with hole, 2 snap-in panels with slots, 2 snap-in panels with slots, with feet, 1 handle

Cerrar

A0236670

EURO CASE 63 TE, with handle
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
367x250x143mm
AltText

A0346316

Handle 63 TE For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms off-white RAL 9002 / push buttons pepple grey RAL 7032. For combination with side panel with hole for handle.

Supply 2 side arms, 1 aluminium section, 2 fastenings screws

Cerrar

A0346316

Handle 63 TE
Producto añadido a su lista
PA 6
off-white RAL 9002
AltText

A0346317

Handle 63 TE For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms off-white RAL 9002 / push buttons off-white RAL 9002. For combination with side panel with hole for handle.

Supply 2 side arms, 1 aluminium section, 2 fastenings screws

Cerrar

A0346317

Handle 63 TE
Producto añadido a su lista
PA 6
off-white RAL 9002
AltText

A0346318

Handle 63 TE For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms pepple grey RAL 7032 / push buttons off-white RAL 9002. For combination with side panel with hole for handle.

Supply 2 side arms, 1 aluminium section, 2 fastenings screws

Cerrar

A0346318

Handle 63 TE
Producto añadido a su lista
PA 6
pebble grey RAL 7032

Customising options for A0336370

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Datos técnicos
  • Planos / Documentos
  • Purchasing Data
Material
Color
matt anodised
Width
357,8 mm
Height
135,2 mm
Thickness
2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
245 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany
