EASYTEC 100

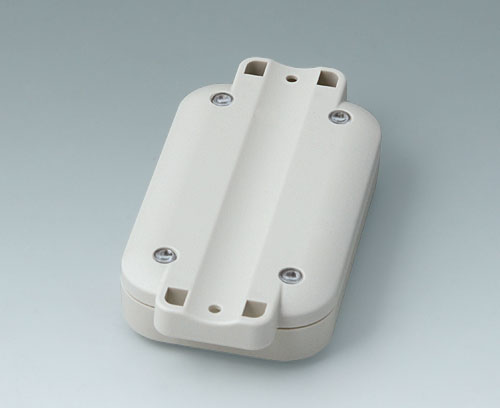

2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.
VersionTop part flat
SupplyTop and bottom part, assembly kit
Plano 2D en PDF
Vista en 3D en PDF
Descarga 3D/2D
Descarga 3D/2D
Cree su ficha de datos en PDF para C3206107
Seleccione la información del producto para su ficha de datos.
Añadir a la cesta de la compra
Accessory "protection"
A9502030
Sealing 100
Application: for increasing the protection class. Bottom part with groove accepts the seal.
Supply 1 seal
A9502030
Sealing 100Producto añadido a su lista
Accessory "screws"
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)Producto añadido a su lista
A0325060
Self-tapping screw 2.5 x 6 mm (T8)
Self-tapping screw with T8 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Producto añadido a su lista
Customising options for C3206107
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Datos técnicos
-
Modelos 3D & Planos / Documentos
- Purchasing Data
Material
Protection class
Necessary accessories: sealing,
Color
off-white RAL 9002
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Longitud
121 mm
Anchura
62 mm
Altura
26 mm
PCB length, base
90 mm
PCB width, base
50 mm
PCB length, top
90 mm
PCB width, top
50 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 222 KB
- AutoCAD DWG-File 565 KB
- AutoCAD DXF-File 1.765 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 441 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00025880.x_t 3.925 KB
- 00025880.STEP 8.414 KB
- 00025880.SAT 10.789 KB
Weight/1 part
64 g
Customs tariff number
(OKW product)
(OKW product)
39269097
