B4113126

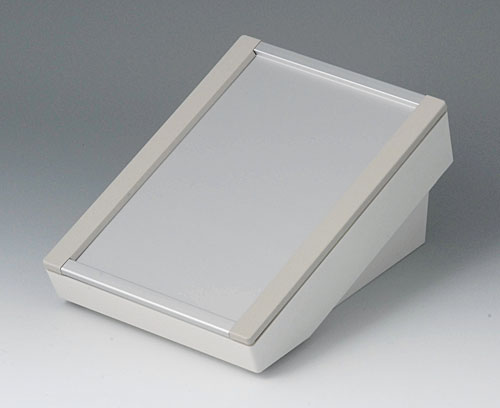

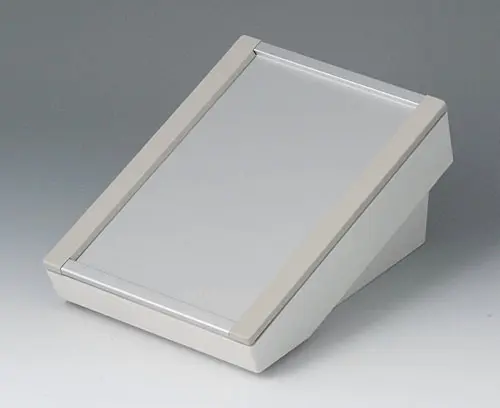

Profile plate S
Profile plate S for the mounting of operating elements of all kinds. Especially designed for the use of membrane keyboards. Recessed area for protecting the operating elements.
Supply1 profile plate, 4 screws, 2 cover strips
Plano 2D en PDF
Vista en 3D en PDF
Descarga 3D/2D
Descarga 3D/2D
Cree su ficha de datos en PDF para B4113126
Seleccione la información del producto para su ficha de datos.
Añadir a la cesta de la compra
B4013117

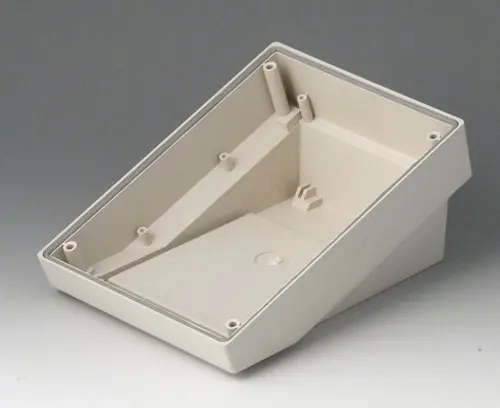

DATEC-TERMINAL S
Basic case with ergonomically inclined operating area can be used with profile plate, cover or front panel. Suitable to accommodate Eurocards 100 x 160 mm.
Supply 1 basic housing, 4 screws, 4 non slip feet, 1 sealing
B4013117
DATEC-TERMINAL SProducto añadido a su lista
off-white RAL 9002
130x180x86mm
Customising options for B4113126
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Datos técnicos
-
Modelos 3D & Planos / Documentos
- Purchasing Data
Material
Color
Profile plate
matt anodised,
Cover strips pebble grey RAL 7032
Cover strips pebble grey RAL 7032
Standards
Anchura
130 mm
Profundidad
180 mm
Altura
8 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 145 KB
- AutoCAD DWG-File 144 KB
- AutoCAD DXF-File 477 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 1.348 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008368.x_t 585 KB
- 00008368.STEP 1.350 KB
- 00008368.SAT 2.751 KB
Weight/1 part
165 g
Customs tariff number
(OKW product)
(OKW product)
76042990
Country of manufacture
Germany
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para B4113126 y no olvide solicitar presupuesto.
