Accesorios para cajas
B4030217
DATEC-TERMINAL L, Vers. II
Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards.

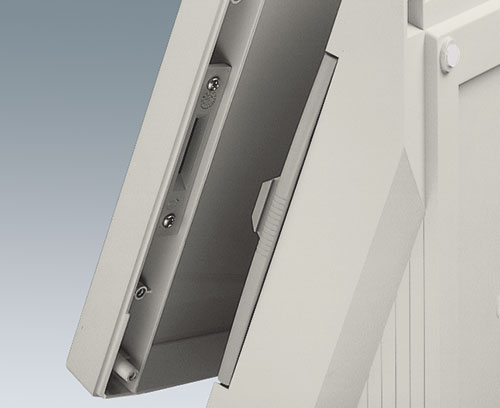

VersionMachined for assembly of hinge and quick-action lock
Supply1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge and quick-action lock
Cree su ficha de datos en PDF para B4030217
Seleccione la información del producto para su ficha de datos.
Accessory to complete
B4016671
Supply 1 cover strip
B4016671
Cover strip M / Ltransparent
B4016677
Supply 1 cover strip
B4016677
Cover strip M / Loff-white RAL 9002
B4030417
Supply 1 lid, 2 screws M3
B4030417
Lid L closed, flatoff-white RAL 9002
268x62x24mm
B4030617
Supply 1 cover, assembly kit
B4030617
Cover L, flatoff-white RAL 9002
302x220x29mm
B4030621
Supply 1 cover, assembly kit
B4030621
Cover L, flattransparent
302x220x29mm
B4030631
Supply 1 cover, assembly kit
B4030631
Cover L, convextransparent
302x220x29mm
B4030637
Supply 1 cover, assembly kit
B4030637
Cover L, convexoff-white RAL 9002
302x220x29mm
B4030657
Supply 1 cover, assembly kit
B4030657
Cover L, highoff-white RAL 9002
302x220x50mm
B4130116
Supply 1 front panel, 4 screws diameter 3 mm
B4130116
Front panel LHmatt anodised
262x209x2mm
Accessory "wall/holder"
B4130147
Supply 1 wall suspension element, 2 screws M3
B4130147
Wall suspension element Lgalvanized
214x260x12mm
Necessary accessories: cover / cover convex and closed lid
Assembly Instructions (Part)
- Hinge/quick-action lock/keylock, DATEC-TERMINAL M/L vers. II + III, assembly instruction (English) 2.644 KB
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 224 KB
- AutoCAD DWG-File 393 KB
- AutoCAD DXF-File 1.506 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 2.839 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008360.x_t 4.296 KB
- 00008360.STEP 9.053 KB
- 00008360.SAT 14.542 KB
(OKW product)
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para B4030217 y no olvide solicitar presupuesto.
