A9074407

DATEC-MOBIL-BOX M, Vers. IV

Universally applicable hand-held box of medium size. Large area for cutouts and openings. Recessed control area for keyboards. Lid of battery compartment in the base (battery compartment as accessory). Sealing for IP 65 as accessory.

Version

Top with display cutout for standard-LCD modules with 4 lines x 16 characters

Supply

Case-top and base, battery compartment lid, assembly kit

Plano 2D en PDF
Vista en 3D en PDF
Descarga 3D/2D

Cree su ficha de datos en PDF para A9074407

Seleccione la información del producto para su ficha de datos.

Añadir a la cesta de la compra Añadir a la cesta de la compra Añadir a la cesta de la compra
Producto añadido a su lista
Continuar o abrir la cesta de la compra

Accessory "battery"

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

A9160003

Plug-in contact, 1 x 9 V (PP3)
Producto añadido a su lista
A9161002 Set of battery clips, 2 x 9 V or 4 x AA

A9161002

Set of battery clips, 2 x 9 V or 4 x AA For contacting the batteries 2 x 9 V.
Note application DATEC-MOBIL-BOX L with battery compartment: only for this enclosure 2 x 9 V or 4 x AA is possible.

Supply 4 single contacts

A9161002

Set of battery clips, 2 x 9 V or 4 x AA
Producto añadido a su lista

tin-plated
A9174002 Battery compartment, 2 x 9 V

A9174002

Battery compartment, 2 x 9 V Application: for 2 x 9 V flat batteries (PP3).

Supply 1 battery compartment, assembly kit

A9174002

Battery compartment, 2 x 9 V
Producto añadido a su lista

off-white RAL 9002
A9174003 Battery compartment, 1 x 9 V

A9174003

Battery compartment, 1 x 9 V Application: for 1 x 9 V flat battery (PP3).

Supply 1 battery compartment, assembly kit

A9174003

Battery compartment, 1 x 9 V
Producto añadido a su lista

off-white RAL 9002
A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

A9174006

Set of battery clips, 1 x 9 V
Producto añadido a su lista

tin-plated
A9345217 Set of battery compartment, 4 x AA

A9345217

Set of battery compartment, 4 x AA For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).

Supply 1 battery compartment, battery clips nickel-plated, assembly kit

A9345217

Set of battery compartment, 4 x AA
Producto añadido a su lista

off-white RAL 9002

Accessory "protection"

A9174001 Sealing kit M

A9174001

Sealing kit M Application: for increasing the protection class, of DATEC-MOBIL-BOX M.

Supply 2 sealings, 4 sealing rings

A9174001

Sealing kit M
Producto añadido a su lista

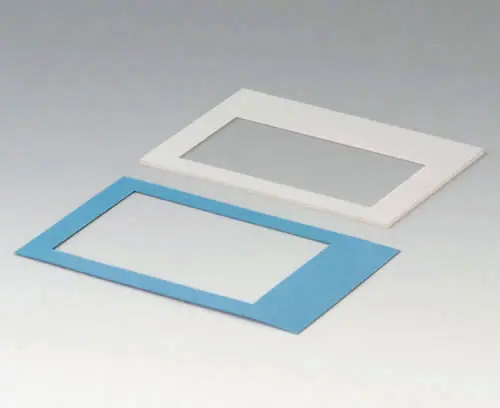

A9174407 Display window M, border off-white

A9174407

Display window M, border off-white The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For Version IV

Supply 1 display window, 1 adhesive foil

A9174407

Display window M, border off-white
Producto añadido a su lista

transparent

Accessory "wall/holder"

A9226227 Wall suspension element

A9226227

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX M and DATEC-CONTROL S. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

A9226227

Wall suspension element
Producto añadido a su lista

off-white RAL 9002

Accessory "carrying"

A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

A9100002

Ring eyelet
Producto añadido a su lista

volcano

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Producto añadido a su lista
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
Producto añadido a su lista
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0308132

Self-tapping screw 3 x 8 mm (T10)
Producto añadido a su lista

Accessory

A9250907 Tilt foot bar

A9250907

Tilt foot bar Special for DATEC-MOBIL-BOX M/S (preformend centerings are already considered). Facilitates ergonomical reading angles (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a beter grip.

Supply 1 tilt foot bar, assembly kit

A9250907

Tilt foot bar
Producto añadido a su lista

off-white RAL 9002

Customising options for A9074407

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Protection class

Necessary accessories: sealing kit, display window (set with adhesive foil)
Color
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Longitud
195 mm
Anchura
101 mm
Altura
44 mm
PCB length, base
165 mm
PCB width, base
90 mm
PCB length, top
184 mm
PCB width, top
90 mm
Display length, base
60 mm
Display width, base
24 mm
Keypad length
167,7 mm
Keypad width
80,7 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
196 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
