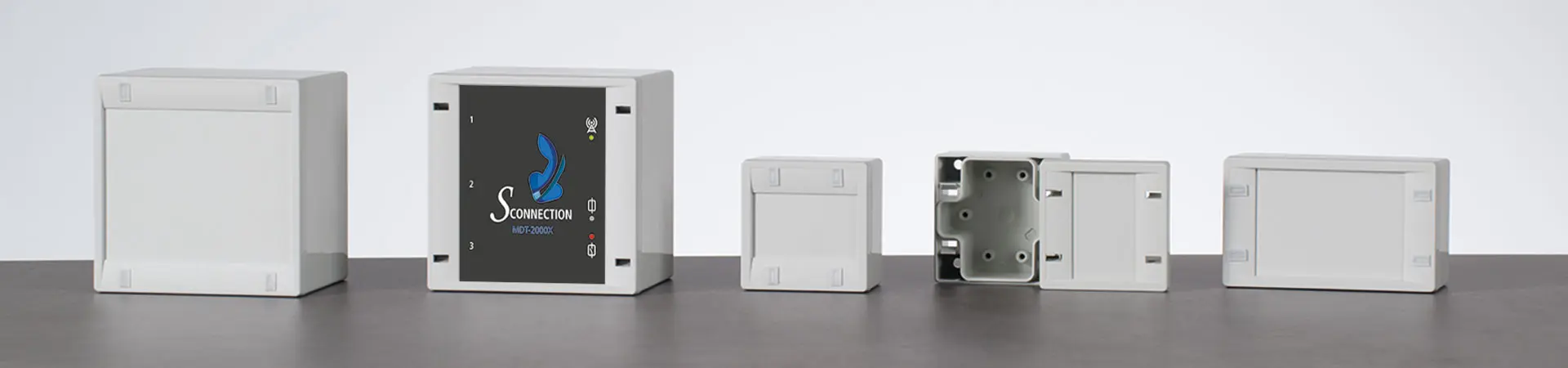

Snaptec

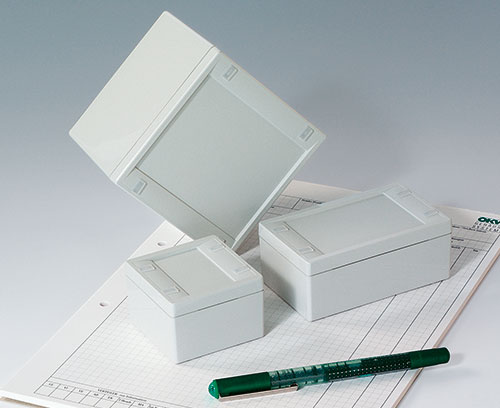

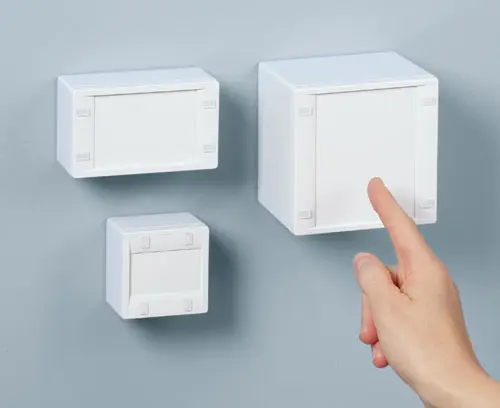

Cajas de categoría IP 65 que se instalan con un clic

Las cajas SNAPTEC se caracterizan por un montaje cómodo gracias a su innovadora técnica de ensamblaje de componentes eléctricos/electrónicos.

  • Cajas de pared económicas.
  • Tapas de cierre por presión para un montaje fácil.
  • La profundidad de la parte inferior garantiza el máximo área para el acomodo de prensaestopas e interfaces.

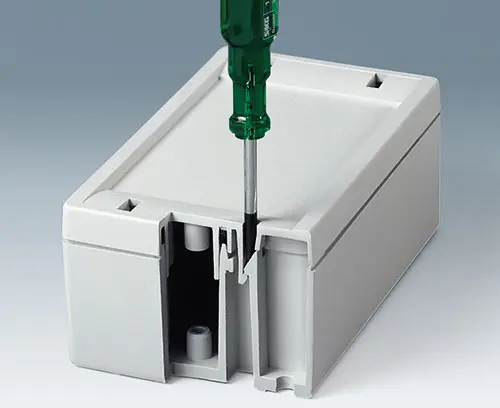

  • Desmontaje rápido con una herramienta para apertura o destornillador.

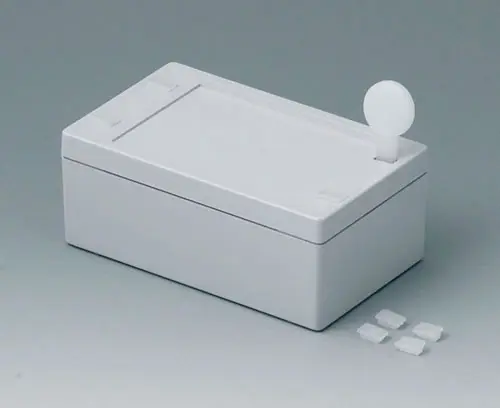

  • La herramienta para apertura y las cubiertas para orificios van incluidas.

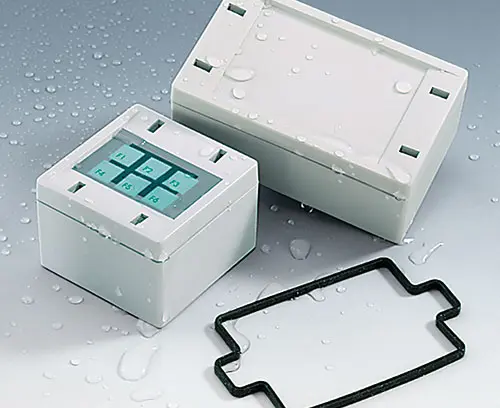

  • Elevada categoría de protección IP 65; Juntas precolocadas en la tapa superior.

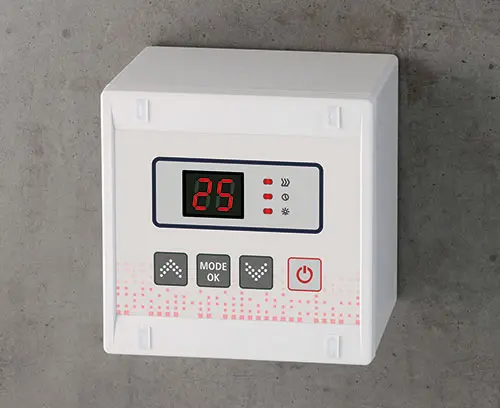

  • Panel de control rebajado para proteger el teclado de membrana o etiquetas

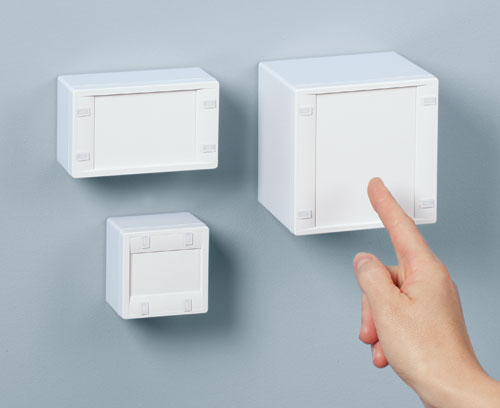

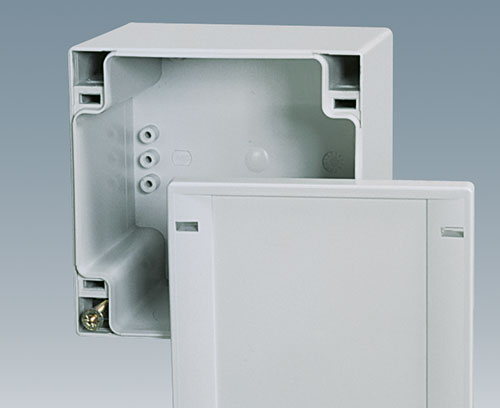

  • Conductos para tornillos de anclaje ocultos para un montaje a pared sencillo.

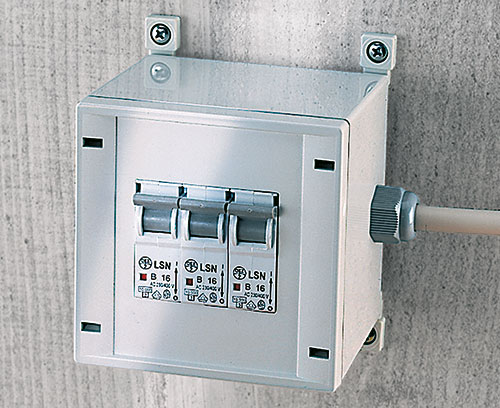

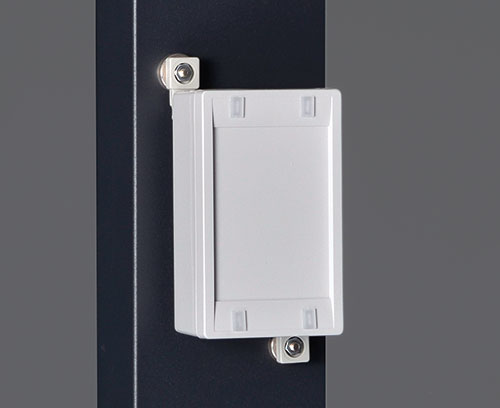

  • Alternativamente, escuadras de fijación externa.

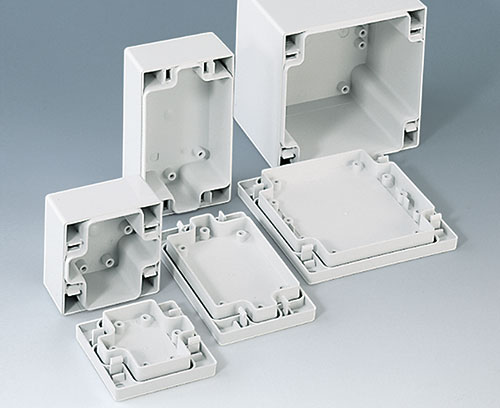

  • Torretas de fijación integrados para placas de circuito y piezas de montaje.

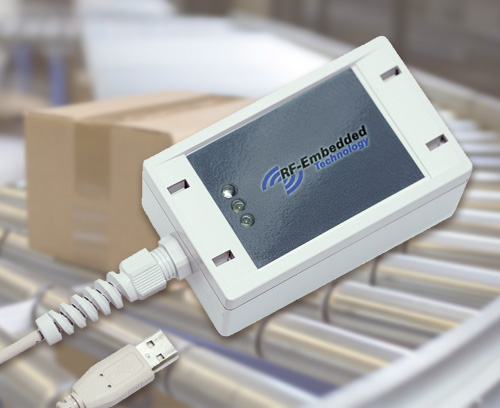

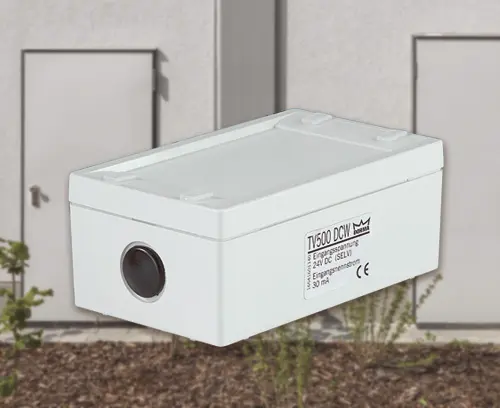

  • Ejemplos de aplicación

Application fields

  • Pensada para su uso en instalaciones eléctricas, como en tecnologías de calefacción, climatización y ventilación, dispositivos de mando y de control, construcción de maquinaria e instalaciones, tecnologías de seguridad, etc.
  • Selección de todos los artículos
  • Accesorios

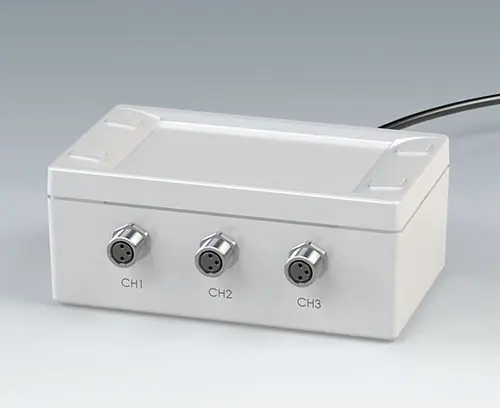

  • Modificaciones específicas del cliente
AltText

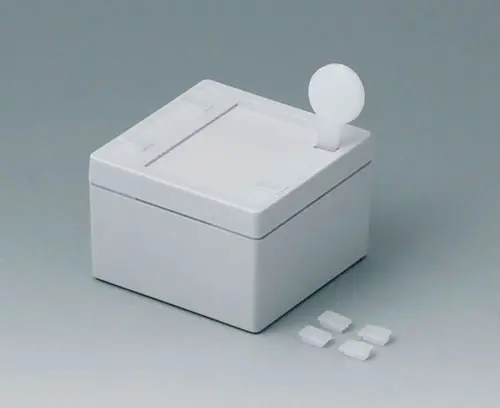

C3006061

SNAPTEC 60 x 60 Top and base parts are fitted together using a unique snap-in machanism. Fixing towers in top and base part. Recessed area for membrane keyboards. Simple, invisible wall-mounting in pre-moulded shafts within the base part.

Supply 1 top and base part with sealing, cover for the locking openings, dismantling key

Cerrar

C3006061

SNAPTEC 60 x 60
Producto añadido a su lista
ABS (UL 94 HB)
light grey RAL 7035
60x60x40mm
IP 65
AltText

C3006101

SNAPTEC 60 x 100 Top and base parts are fitted together using a unique snap-in machanism. Fixing towers in top and base part. Recessed area for membrane keyboards. Simple, invisible wall-mounting in pre-moulded shafts within the base part.

Supply 1 top and base part with sealing, covers for the locking openings, dismantling key

Cerrar

C3006101

SNAPTEC 60 x 100
Producto añadido a su lista
ABS (UL 94 HB)
light grey RAL 7035
60x100x40mm
IP 65
AltText

C3010101

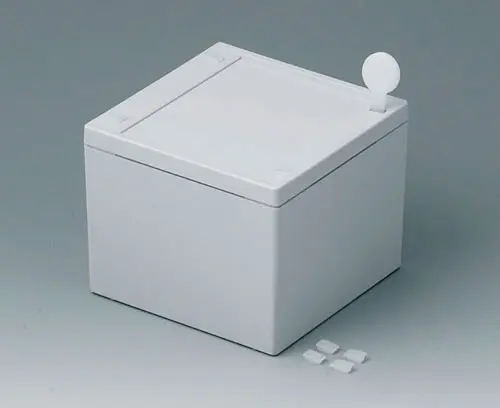

SNAPTEC 100 x 100 Top and base parts are fitted together using a unique snap-in machanism. Fixing towers in top and base part. Recessed area for membrane keyboards. Simple, invisible wall-mounting in pre-moulded shafts within the base part.

Supply 1 top and base part with sealing, covers for the locking openings, dismantling key

Cerrar

C3010101

SNAPTEC 100 x 100
Producto añadido a su lista
ABS (UL 94 HB)
light grey RAL 7035
100x100x80mm
IP 65
AltText

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Producto añadido a su lista
AltText

C2299028

Wall mounting brackets Elements for exterior wall mounting after assembly of the unit.

Supply 4 pieces including fixing elements

Cerrar

C2299028

Wall mounting brackets
Producto añadido a su lista
PA 6 (UL 94 HB)
light grey RAL 7035
AltText

C2306917

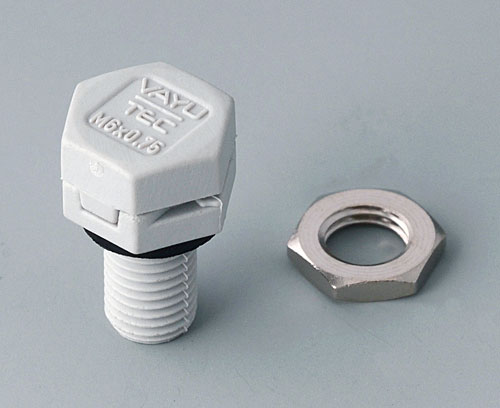

Pressure equalisation element M6x0.75 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Cerrar

C2306917

Pressure equalisation element M6x0.75
Producto añadido a su lista
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
AltText

C2310917

Pressure equalisation element M10x1 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Cerrar

C2310917

Pressure equalisation element M10x1
Producto añadido a su lista
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
AltText

C2316147

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 5 - 10 mm. Operating temperatures from -40°C to +100°C. Borehole ø 16.5 mm.

Supply 1 cable grommet

Cerrar

C2316147

Cable grommet
Producto añadido a su lista
TPE
light grey RAL 7035
IP 67
AltText

C2320137

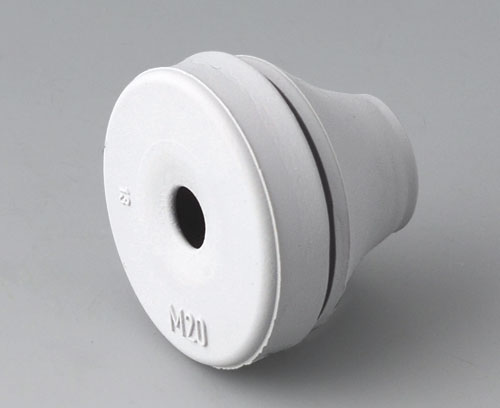

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 1 - 4 mm and for cable diameters from 8 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.

Supply 1 cable grommet

Cerrar

C2320137

Cable grommet
Producto añadido a su lista
EPDM
light grey RAL 7035
IP 67
AltText

C2320147

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 6 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.

Supply 1 cable grommet

Cerrar

C2320147

Cable grommet
Producto añadido a su lista
TPE
light grey RAL 7035
IP 67

Opciones de productos para Snaptec

¿Qué necesita en su producto personalizado? En caso necesario, le suministramos las cajas y botones giratorios listas para el montaje con todas las modificaciones y acabados precisos.
