Smart-Box

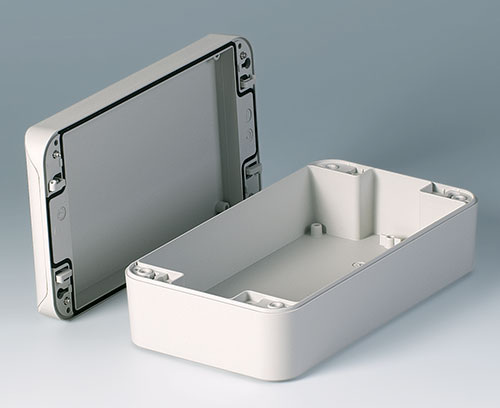

Cajas con alta de categoría IP 66

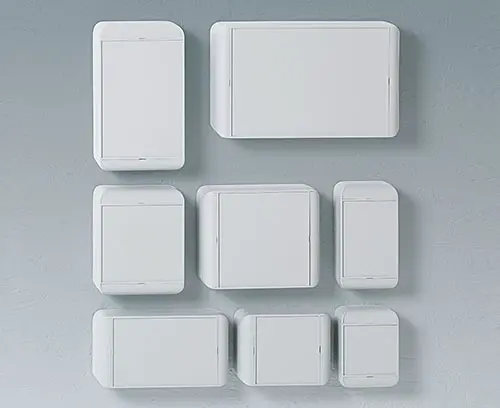

El diseño redondeado de la serie SMART-BOX está pensado para enfatizar el impacto visual y la calidad táctil de sus aplicaciones para la industria.
- Diseño convincente; las cubiertas con los contornos al ras ocultan el área de los tornillos.
- Material de alta calidad ASA+PC (UL 94 V-0) para usos en entornos exigentes; además, es resistente a las llamas y autoextinguible.
- Material permeable a las radiofrecuencias para cajas.
- Elevada categoría de protección IP 66 (90/110/130/150 de ancho), IP 65 (170 de ancho); el aislamiento ya está incorporado en la parte superior.
- Tornillos de acero inoxidable de gran calidad y alta resistencia a la corrosión, incluso frente a sustancias agresivas, gracias a la aleación de acero A2.
- Uso universal para aplicaciones de sobremesa o de montaje a pared.

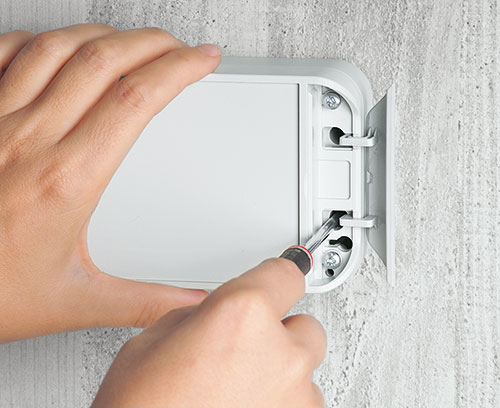

- Ranuras para los tornillos del montaje para la pared oculto bajo las cubiertas.

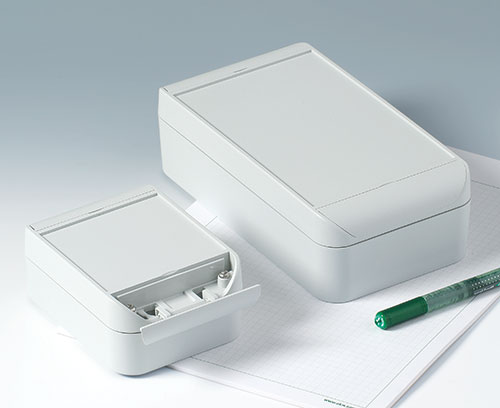

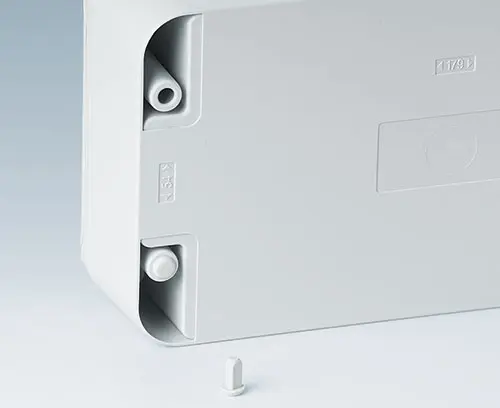

- Pies (accesorio), con sólo insertarlos, proporcionan un apoyo seguro para las aplicaciones de sobremesa.

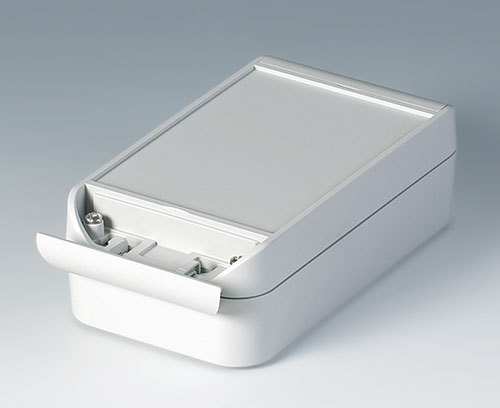

- La sujeción de la tapa facilita todas las tareas de montaje y servicio.

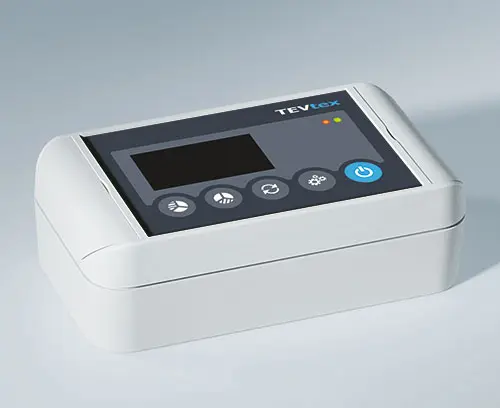

- Panel de control rebajado para proteger el teclado de membrana; espacio adicional para etiquetas en la parte inferior.

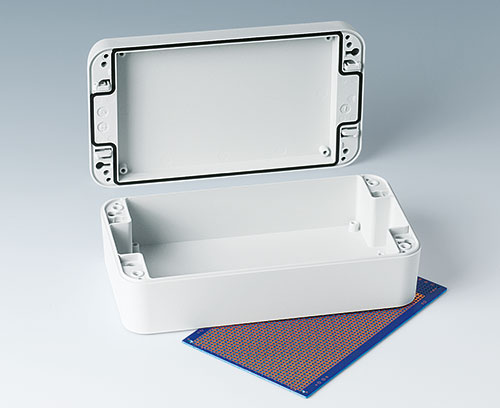

- Torretas de fijación para placas de circuito y piezas de montaje.
Learn more!
Read our blog posts on smart-box View blog posts >>
Application Fields

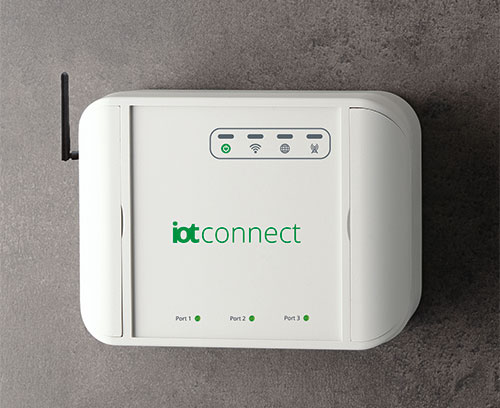

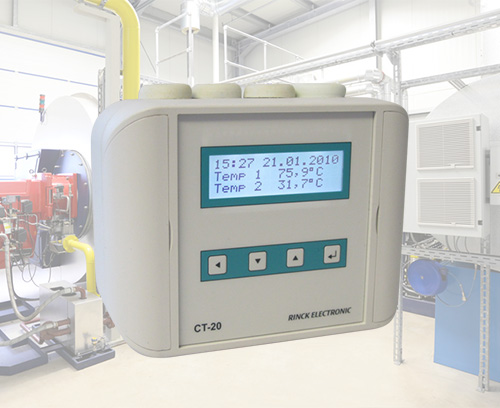

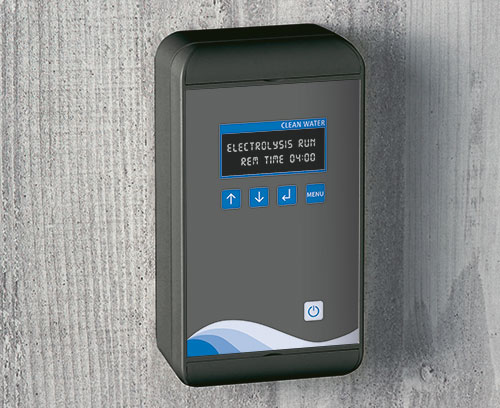

Pensada para aplicaciones de electricidad y electrónica que no pierden de vista el diseño, tecnologías de calefacción, climatización y ventilación, fabricación de instalaciones, sistemas de control, tecnologías de seguridad, IoT/IIoT, smart factory, industrie 4.0, ecc.
C6009121

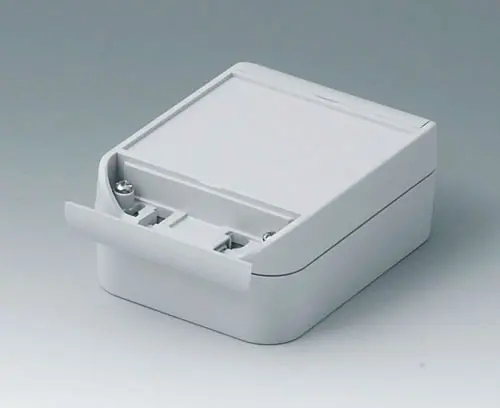

SMART-BOX WIDTH 90

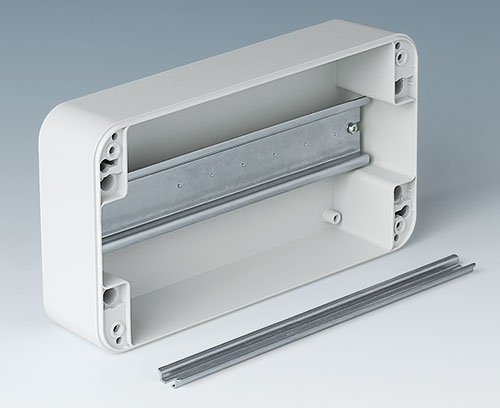

Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6009121
SMART-BOX WIDTH 90Producto añadido a su lista
light grey RAL 7035
120x90x50mm

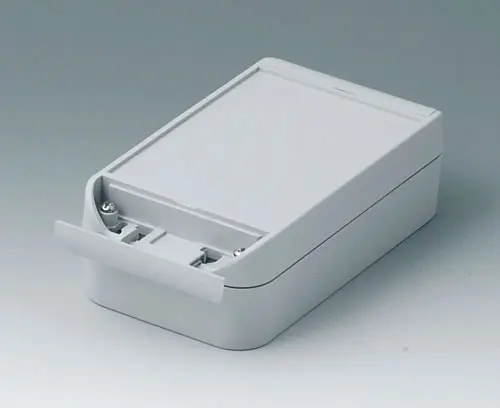

C6009161
SMART-BOX WIDTH 90
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6009161
SMART-BOX WIDTH 90Producto añadido a su lista
light grey RAL 7035
160x90x50mm

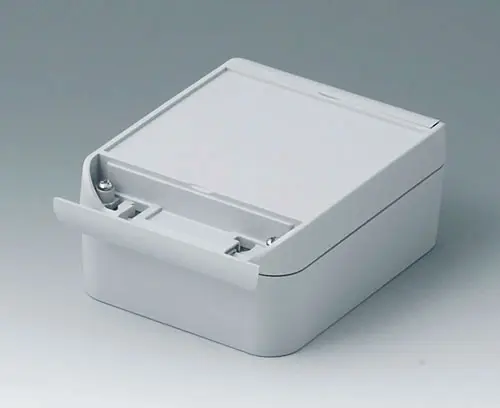

C6011141
SMART-BOX WIDTH 110
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6011141
SMART-BOX WIDTH 110Producto añadido a su lista
light grey RAL 7035
140x110x60mm
C6011201

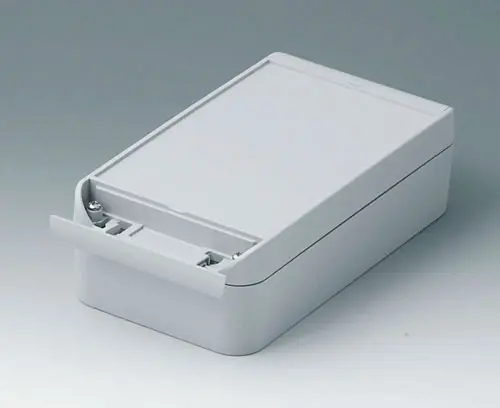

SMART-BOX WIDTH 110
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6011201
SMART-BOX WIDTH 110Producto añadido a su lista
light grey RAL 7035
200x110x60mm
C6013161

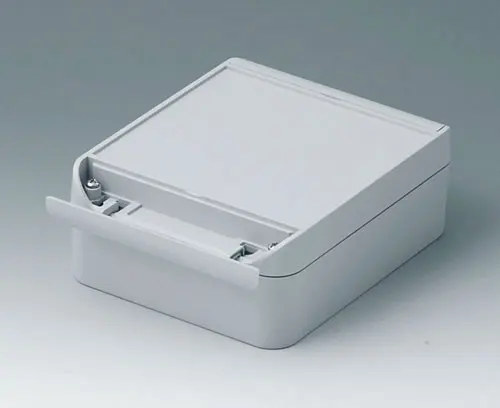

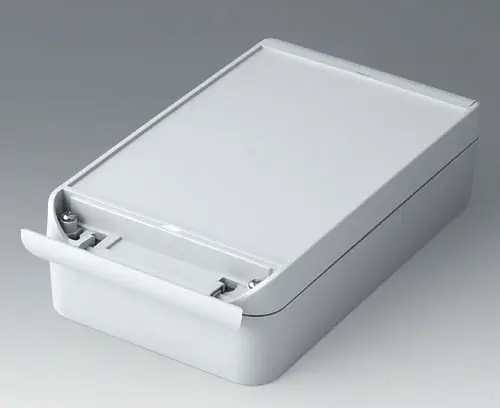

SMART-BOX WIDTH 130
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6013161
SMART-BOX WIDTH 130Producto añadido a su lista
light grey RAL 7035
160x130x60mm
C6013221
SMART-BOX WIDTH 130
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6013221
SMART-BOX WIDTH 130Producto añadido a su lista
light grey RAL 7035
220x130x60mm

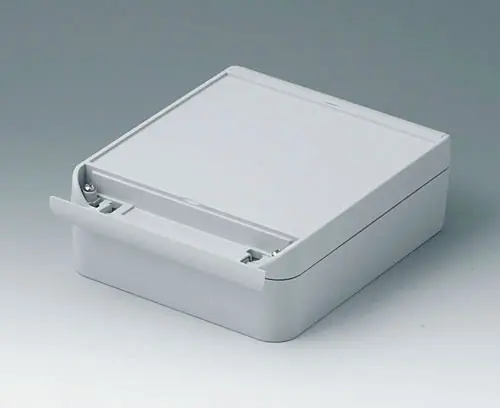

C6015181
SMART-BOX WIDTH 150
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims (hinged), assembly kit incl. cover retention
C6015181
SMART-BOX WIDTH 150Producto añadido a su lista
light grey RAL 7035
180x150x60mm
C6017281

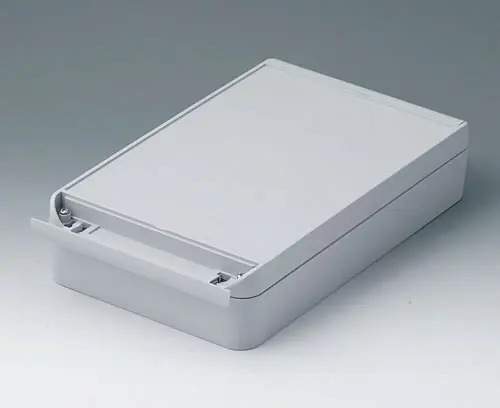

SMART-BOX WIDTH 170
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6017281
SMART-BOX WIDTH 170Producto añadido a su lista
light grey RAL 7035
280x170x60mm

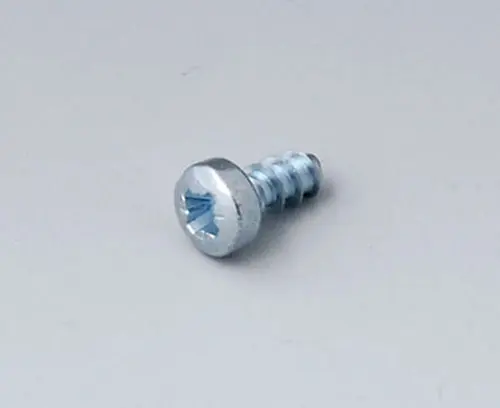

A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)Producto añadido a su lista
A0308031

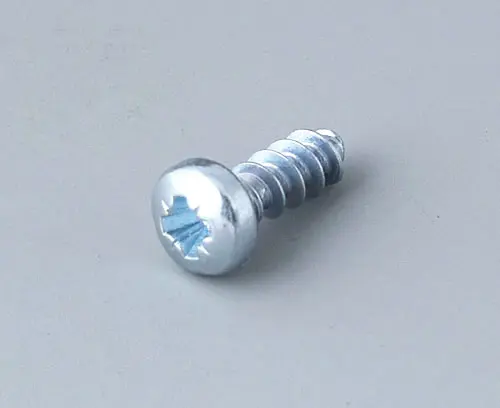

Self-tapping screws 3 x 8 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0308031
Self-tapping screws 3 x 8 mm (PZ1)Producto añadido a su lista
A0308132

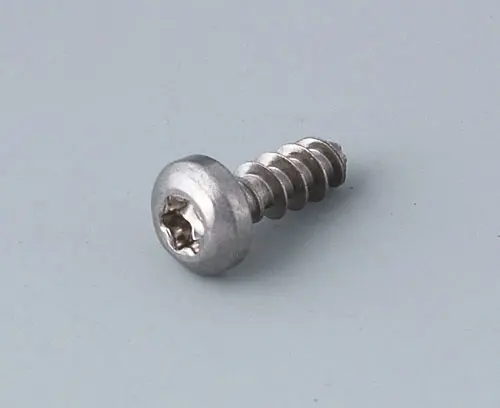

Self-tapping screw 3 x 8 mm (T10)
Self-tapping screw with T10 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0308132
Self-tapping screw 3 x 8 mm (T10)Producto añadido a su lista
A9325018
Pole/mast mounting bracket
For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.
Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.
Supply 1 pole/mast mounting bracket
A9325018
Pole/mast mounting bracketProducto añadido a su lista
anthracite grey RAL 7016
100x100x20mm

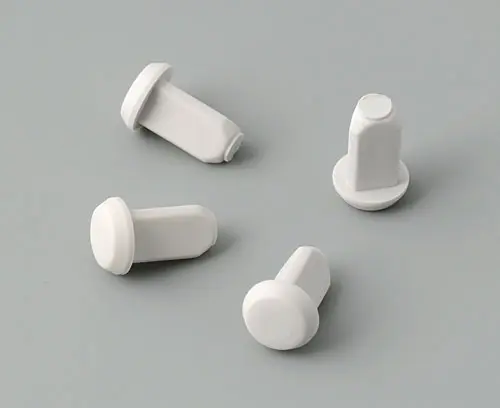

C2299018
Case feet
When using the case for desktop applications.
Supply 4 case feet
C2299018
Case feetProducto añadido a su lista
C2306917

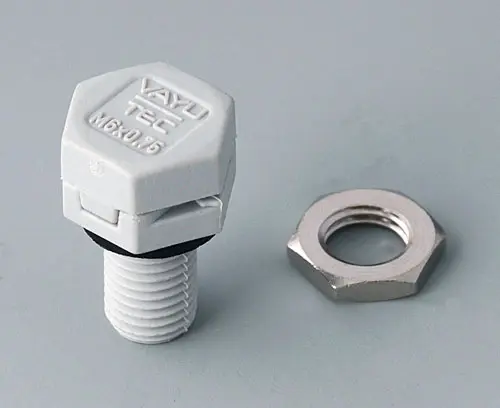

Pressure equalisation element M6x0.75
Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Supply 1 pressure equalisation element, 1 seal washer, 1 nut
C2306917
Pressure equalisation element M6x0.75Producto añadido a su lista
light grey RAL 7035
C2310917

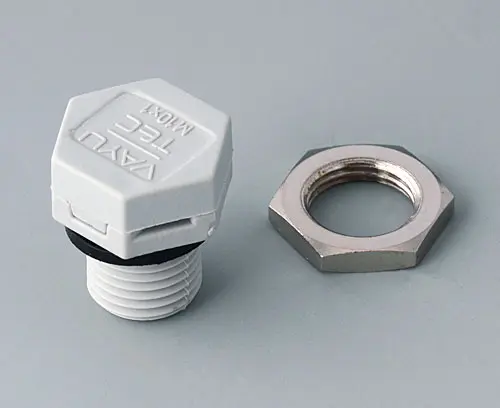

Pressure equalisation element M10x1
Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Supply 1 pressure equalisation element, 1 seal washer, 1 nut
C2310917
Pressure equalisation element M10x1Producto añadido a su lista
light grey RAL 7035

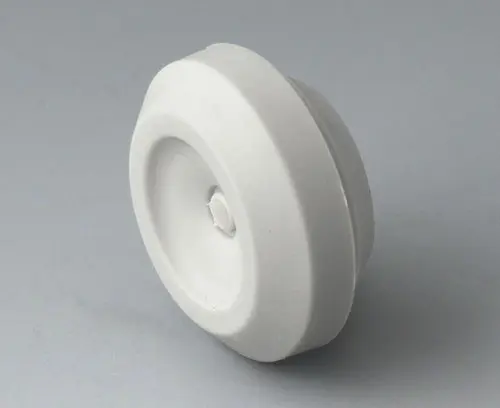

C2316147

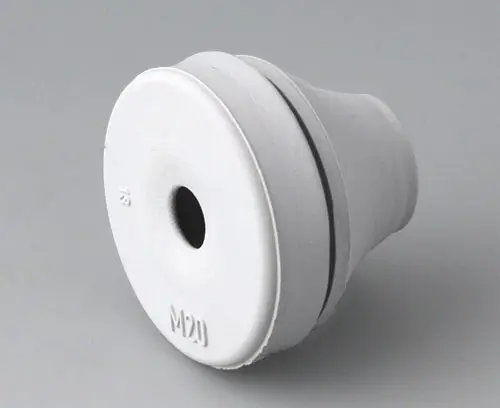

Cable grommet
Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 5 - 10 mm. Operating temperatures from -40°C to +100°C. Borehole ø 16.5 mm.
Supply 1 cable grommet
C2316147
Cable grommetProducto añadido a su lista
light grey RAL 7035
C2320137
Cable grommet
Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 1 - 4 mm and for cable diameters from 8 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.
Supply 1 cable grommet
C2320137
Cable grommetProducto añadido a su lista
light grey RAL 7035

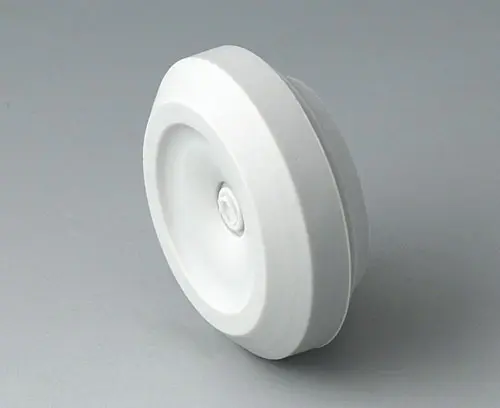

C2320147
Cable grommet
Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 6 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.
Supply 1 cable grommet
C2320147
Cable grommetProducto añadido a su lista
light grey RAL 7035

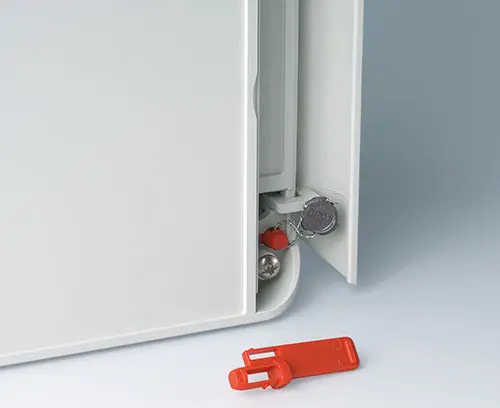

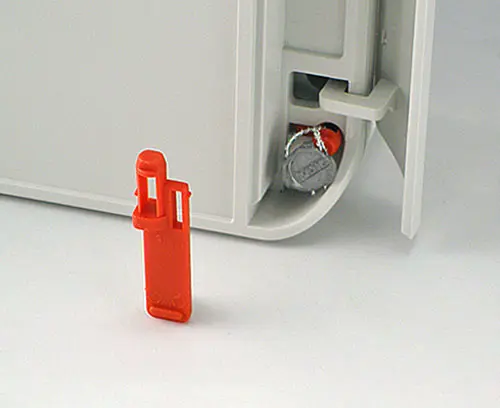

C6100006
Security plug
For use with lead tags.
Supply 1 plug
C6100006
Security plugProducto añadido a su lista
red

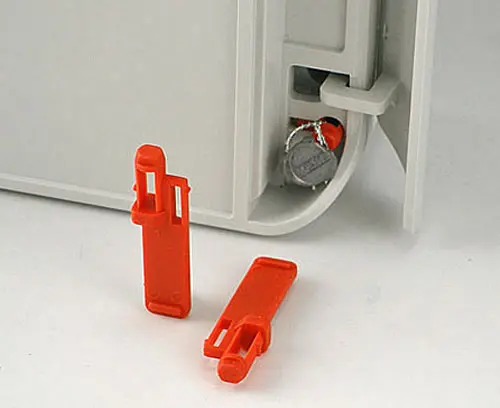

C6100016
Set of security
For use with lead tags.
Supply 2 plugs
C6100016
Set of securityProducto añadido a su lista
red
