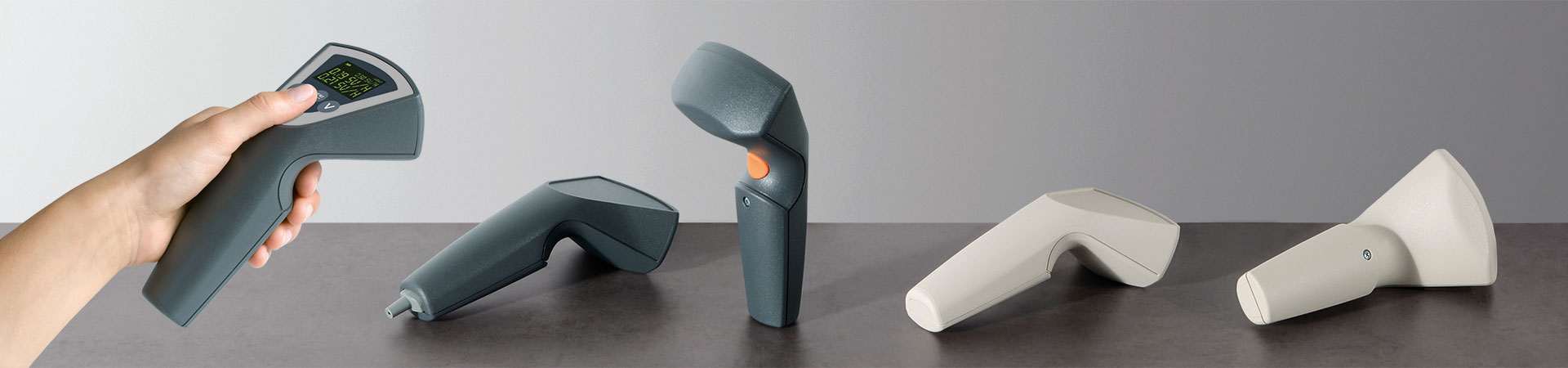

Senso-Case

Caja para utilizar con una sola mano de forma ergonómica

Con la caja de mano SENSO-CASE pueden llevarse a cabo tareas concretas de medición, control y señalización, así como el registro de datos mediante componentes optoelectrónicos, de forma cómoda, rápida y segura.

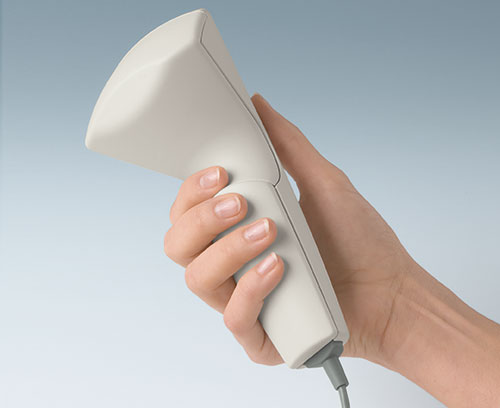

  • Muy fácil de usar gracias a la empuñadura ergonómica, apta tanto para diestros como para zurdos.
  • Distribución equilibrada del peso para un máximo confort.

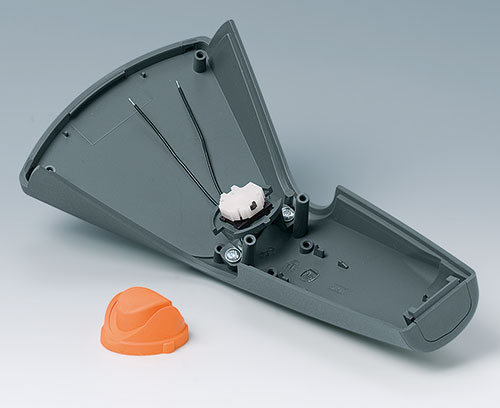

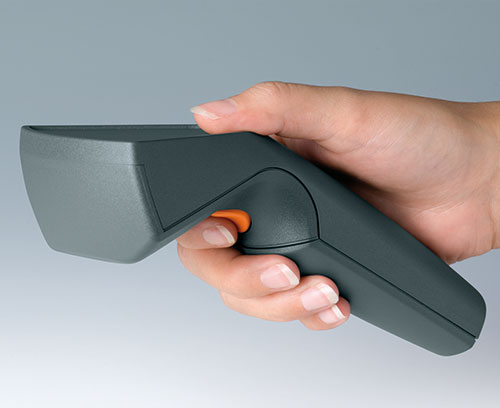

  • Versión con/sin botón integrado en la parte inferior (posición del gatillo) para una puesta en marcha inmediata y/o momentánea (botón stand-by).

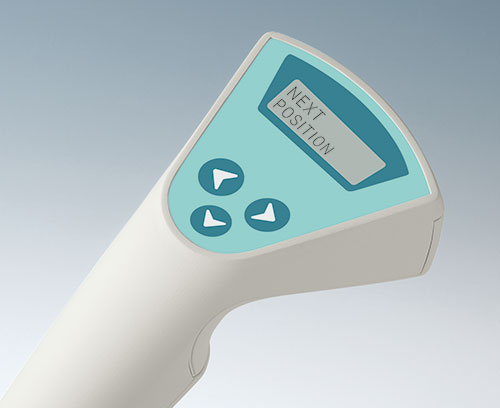

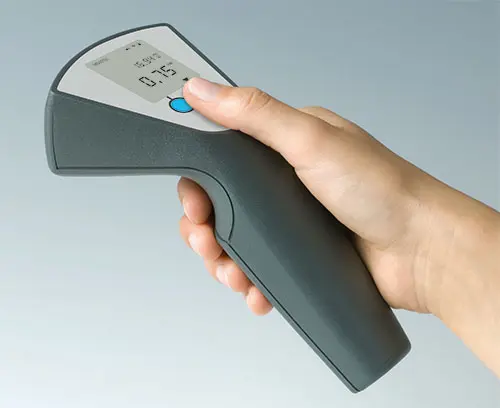

  • Panel de control rebajado para teclados de membrana y silicona, teclas y visores LCDs.
  • Ideal para conjuntos electrónicos premontados, incluso con interfaces integradas.

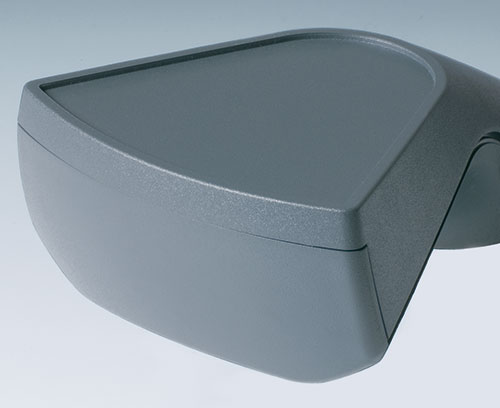

  • Amplia área frontal para interfaces o sensores.
  • Posibilidad de funcionamiento simultáneo usando pilas/baterías estándar o recargables, o una conexión por cable.

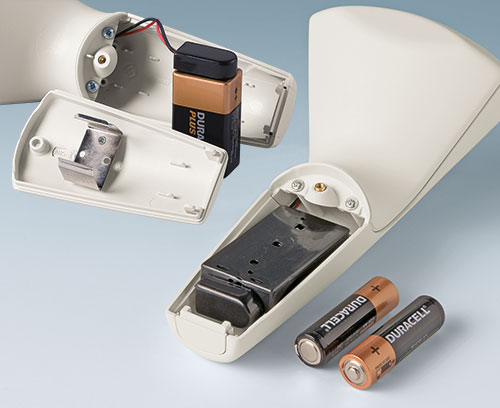

  • Alimentación interna con pilas 2 x AA o 1 x 9 V; soportes de batería como accesorio.
  • Versión con pasacables integrado, mas disipador de tensiones como accesorio.

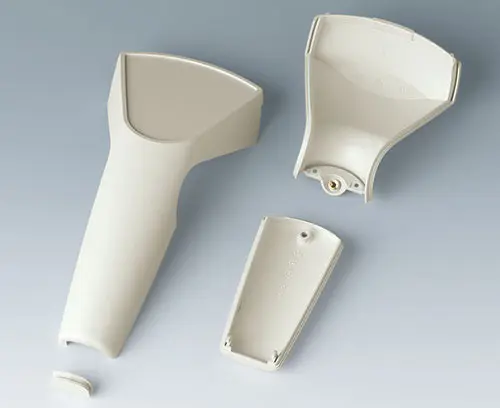

  • Estructura de 4 partes: tapa superior, tapa inferior, cubre batería y tapa pasacables o extremo de cierre; Versión con pulsador adicional para botón stand-by.

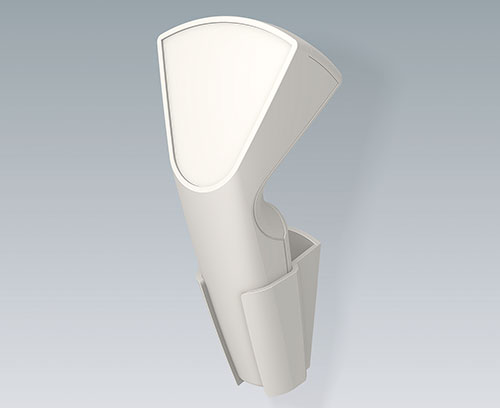

  • Soporte para montaje a pared como accesorio.

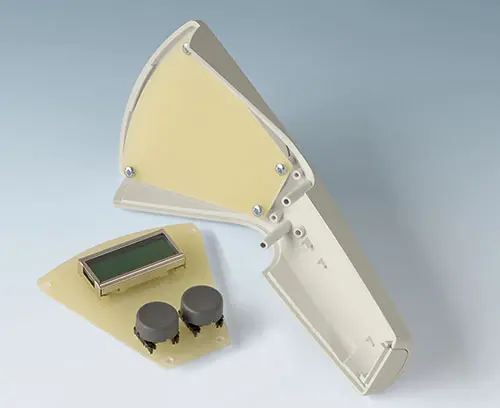

  • Cabezales de fijación para placas de circuito impreso y piezas de montaje.
Crear PDF

Application Fields

Sensores, optoelectrónica, tecnologías optodigitales, procesamiento industrial de imágenes, tecnologías de medición y regulación, logística de almacenamiento y distribución, tecnologías de medicina y laboratorio, tecnologías de comunicación, ecc.

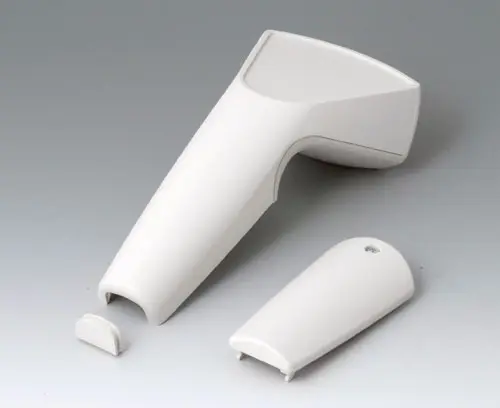

A9056107 SENSO-CASE M

A9056107

SENSO-CASE M Ergonomic plastic enclosure for single-handed operation. Recessed control panel for operating elements or display modules. Fastening pillars for PCBs in the top part. Space for 9 V flat battery or battery compartment 2 x AA (accessory). Cable strain relief (acc.) alternatively applicable.

Supply Top and bottom part , moulded part, battery compartment lid, assembly kit

A9056107

SENSO-CASE M
Producto añadido a su lista

off-white RAL 9002
180x86x45mm

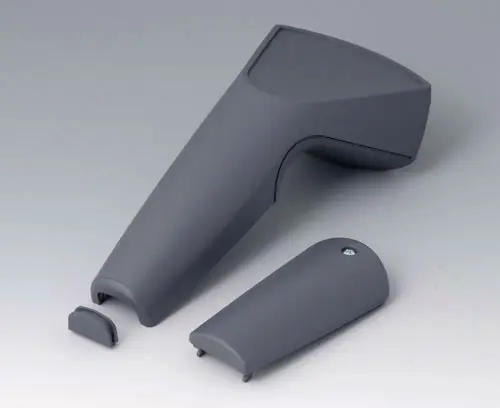

A9056108 SENSO-CASE M

A9056108

SENSO-CASE M Ergonomic plastic enclosure for single-handed operation. Recessed control panel for operating elements or display modules. Fastening pillars for PCBs in the top part. Space for 9 V flat battery or battery compartment 2 x AA (accessory). Cable strain relief (acc.) alternatively applicable.

Supply Top and bottom part , moulded part, battery compartment lid, assembly kit

A9056108

SENSO-CASE M
Producto añadido a su lista

lava
180x86x45mm

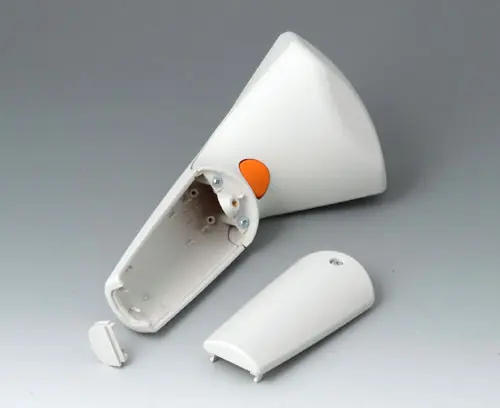

A9056207 SENSO-CASE M

A9056207

SENSO-CASE M Ergonomic plastic enclosure for single-handed operation. Recessed control panel for operating elements or display modules. Fastening pillars for PCBs in the top part. Space for 9 V flat battery or battery compartment 2 x AA (accessory). Cable strain relief (acc.) alternatively applicable. Equipment: with single-pole push-button.

Supply Top and bottom part , moulded part, battery compartment lid, push-buttom with connection cables, assembly kit

A9056207

SENSO-CASE M
Producto añadido a su lista

off-white RAL 9002
180x86x45mm

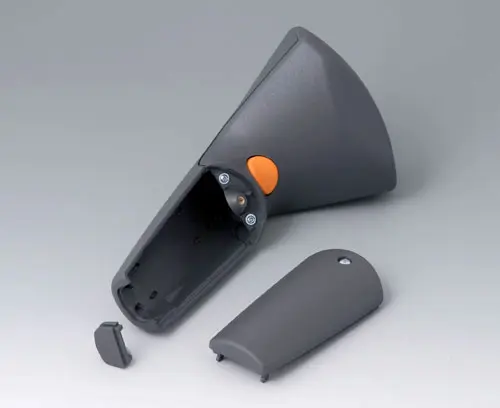

A9056208 SENSO-CASE M

A9056208

SENSO-CASE M Ergonomic plastic enclosure for single-handed operation. Recessed control panel for operating elements or display modules. Fastening pillars for PCBs in the top part. Space for 9 V flat battery or battery compartment 2 x AA (accessory). Cable strain relief (acc.) alternatively applicable. Equipment: with single-pole push-button.

Supply Top and bottom part , moulded part, battery compartment lid, push-buttom with connection cables, assembly kit

A9056208

SENSO-CASE M
Producto añadido a su lista

lava
180x86x45mm
A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Producto añadido a su lista

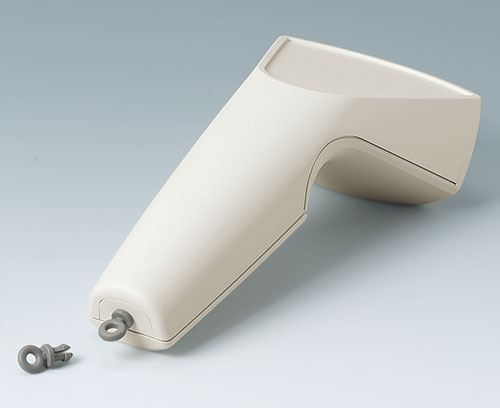

A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

A9100002

Ring eyelet
Producto añadido a su lista

volcano

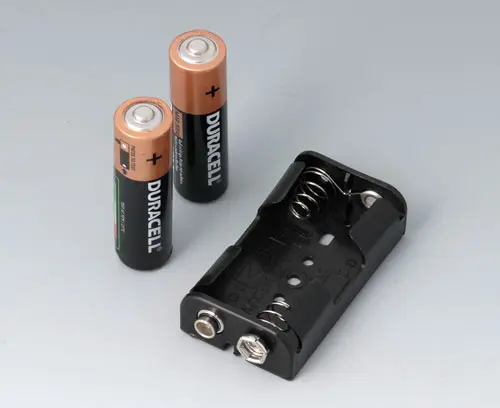

A9156001 Battery holder, 2 x AA

A9156001

Battery holder, 2 x AA For 2 x 1.5 V mignon-cells (AA). Contacts suitable for plug-in contact (sep. asseccory).

Supply 1 battery holder

A9156001

Battery holder, 2 x AA
Producto añadido a su lista

black RAL 9005

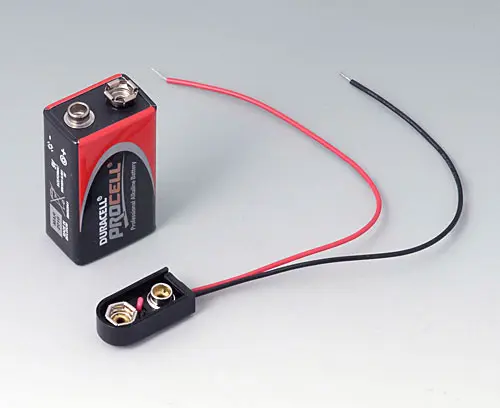

A9156002 Plug-in contact, 1 x 9 V (PP3)

A9156002

Plug-in contact, 1 x 9 V (PP3) Version: With protective case. Cable length approx. 152 mm. Contact diameters 5.7 / 5.3 mm.
Application: suitable for 9 V flat battery (PP3) or battery holder A9156001.

Supply 1 plug-in contact

A9156002

Plug-in contact, 1 x 9 V (PP3)
Producto añadido a su lista

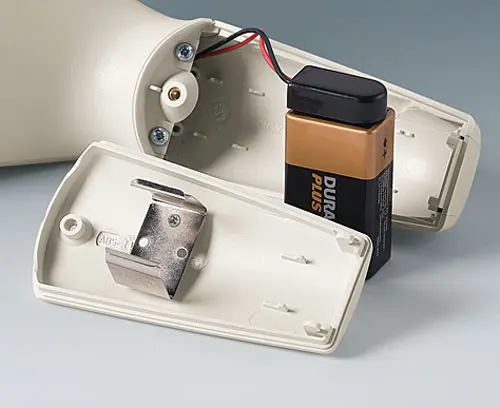

A9156003 Battery holder, 1 x 9 V (PP3)

A9156003

Battery holder, 1 x 9 V (PP3) For 1 x 9 V flat battery (PP3).

Supply 1 battery holder, 2 self-tapping screws

A9156003

Battery holder, 1 x 9 V (PP3)
Producto añadido a su lista

nickel-plated

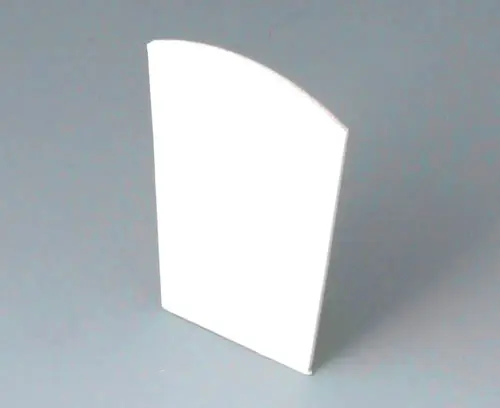

A9156005 Adhesive foil

A9156005

Adhesive foil For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

A9156005

Adhesive foil
Producto añadido a su lista

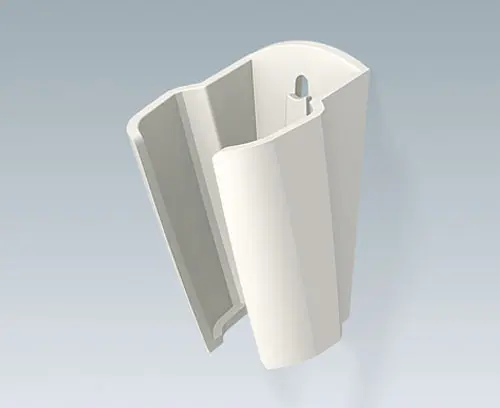

A9156307 Holder

A9156307

Holder Special holder for SENSO-CASE for safe storing of cable-connected or wireless applications. Fixing at the wall or other surfaces by commercial screws or by adhesive foil (sep. article).

Supply 1 holder

A9156307

Holder
Producto añadido a su lista

off-white RAL 9002

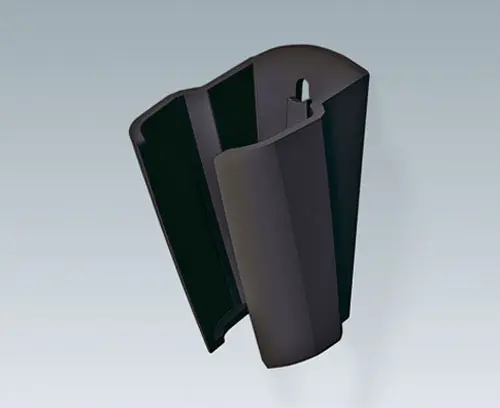

A9156308 Holder

A9156308

Holder Special holder for SENSO-CASE for safe storing of cable-connected or wireless applications. Fixing at the wall or other surfaces by commercial screws or by adhesive foil (sep. article).

Supply 1 holder

A9156308

Holder
Producto añadido a su lista

lava

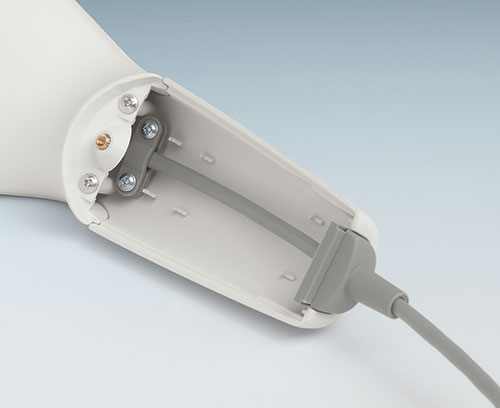

A9166004 Set of pull-relief

A9166004

Set of pull-relief For pull-relief of cable-connected applications. To be mounted onto the towers provided in the case or station.

Supply 2 preshaped pull-relief clamps, 2 self-tapping screws

A9166004

Set of pull-relief
Producto añadido a su lista

volcano
A9166101 Cable strain, 5.0 - 5.9

A9166101

Cable strain, 5.0 - 5.9 The push-on cable strain relief form an attractive connection with cable-linked applications. Application: for cable diameter 5.0 - 5.9 mm.

Supply 1 cable strain relief

A9166101

Cable strain, 5.0 - 5.9
Producto añadido a su lista

volcano

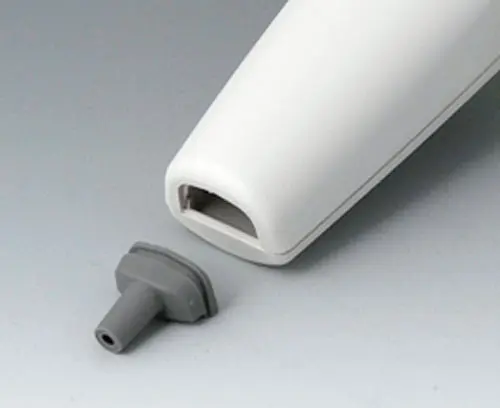

A9166131 Cable strain, 4.2 - 5.0

A9166131

Cable strain, 4.2 - 5.0 The push-on cable strain relief form an attractive connection with cable-linked applications. Application: for cable diameter 4.2 - 5.0 mm.

Supply 1 cable strain relief

A9166131

Cable strain, 4.2 - 5.0
Producto añadido a su lista

volcano
A9166161 Cable strain, 3.4 - 4.2

A9166161

Cable strain, 3.4 - 4.2 The push-on cable strain relief form an attractive connection with cable-linked applications. Application: for cable diameter 3.4 - 4.2 mm.

Supply 1 cable strain relief

A9166161

Cable strain, 3.4 - 4.2
Producto añadido a su lista

volcano

Opciones de productos para Senso-Case

¿Qué necesita en su producto personalizado? En caso necesario, le suministramos las cajas y botones giratorios listas para el montaje con todas las modificaciones y acabados precisos.
