Hand-Terminal

Caja para controles para máquinas, instalaciones y exteriores

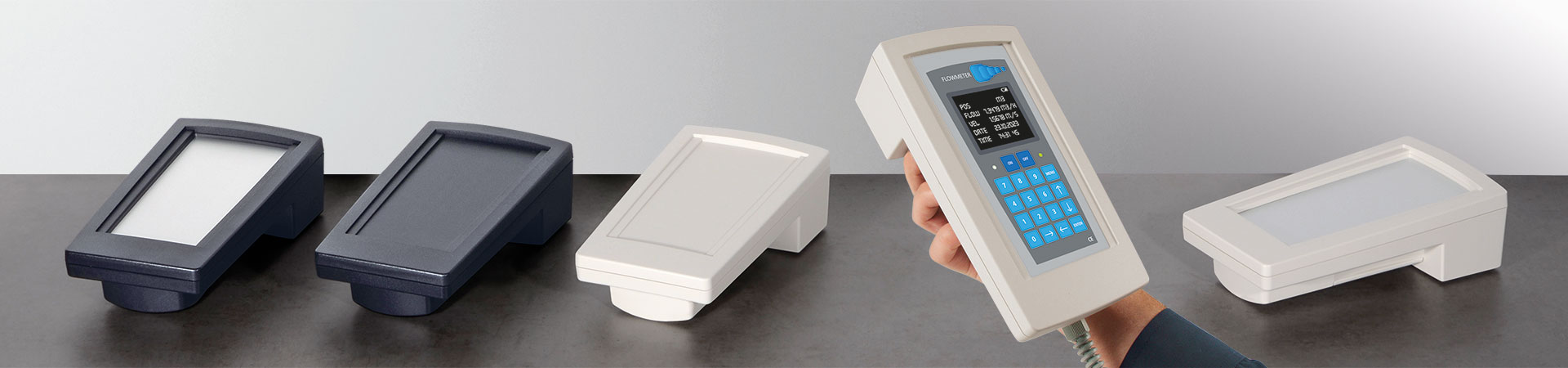

La caja HAND-TERMINAL está pensada para componentes electrónicos que necesiten un envolvente robusto.

  • Material pirorretardante y resistente a los impactos.

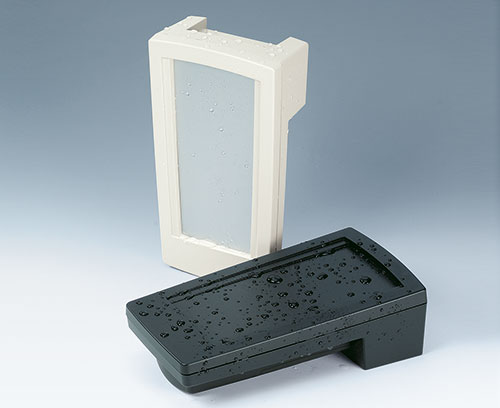

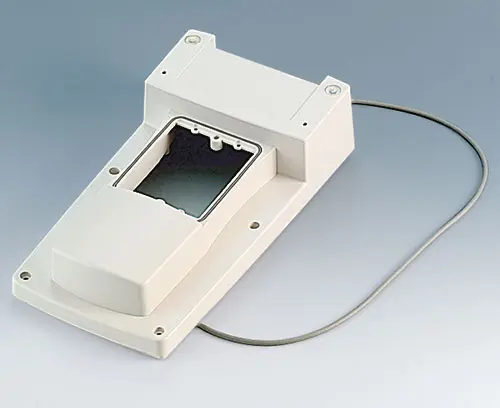

  • Robusta con categoría de protección hasta IP 65, (juntas de sellado disponibles como accesorios).

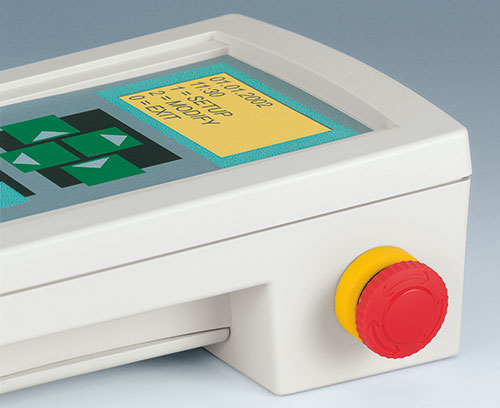

  • Mucho espacio para elementos operativos, dispalys, botones de parada de emergencia y puesta en marcha, etc.

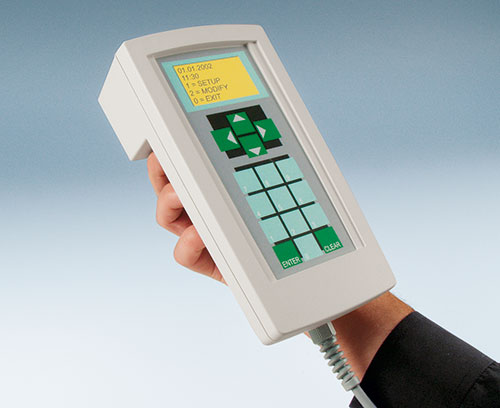

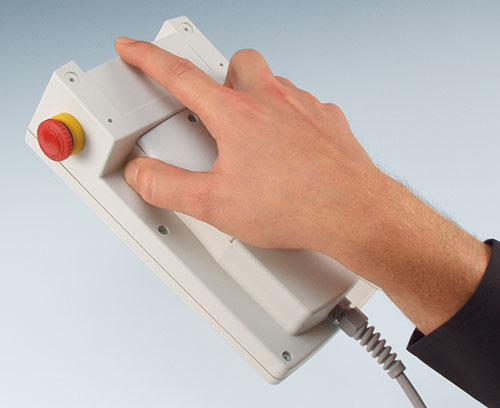

  • Empuñadura trasera ergonómica para un agarre cómodo.

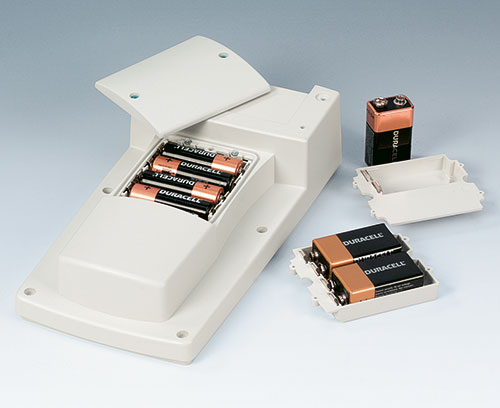

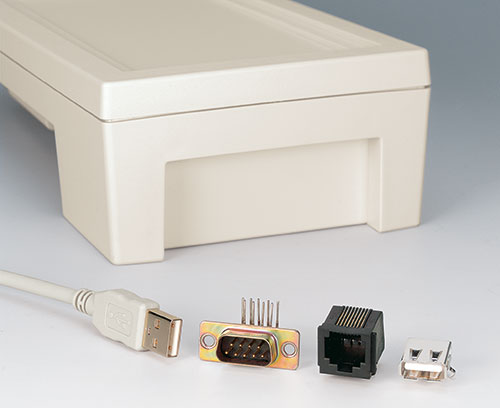

  • Para sistemas de control con conexión por cables o a pilas (4 x AA, 1 x 9 V o 2 x 9 V).
  • Distribución del peso óptima.
  • Panel de control rebajado para proteger el teclado de membrana.

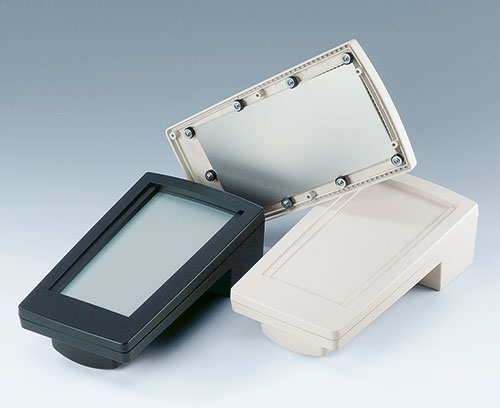

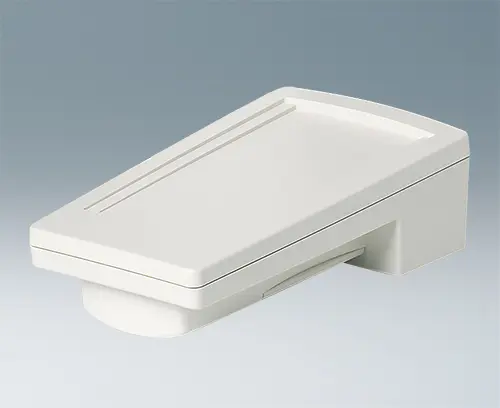

  • Versión I con parte frontal cerrada.

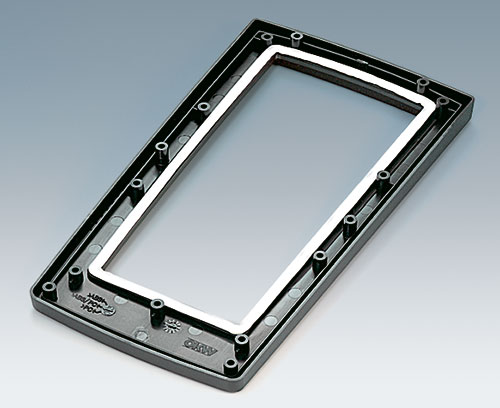

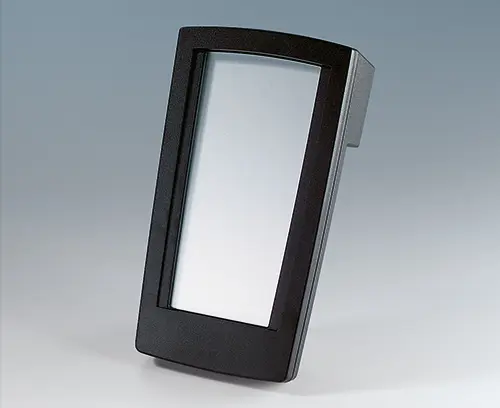

  • Versión II para montaje de frontales de aluminio.
  • Cabezales de fijación para placas de circuito impreso y piezas de montaje.
Crear PDF

Application Fields

Sistemas de mando de maquinaria flexibles en acabado y montaje. Terminales para aplicaciones de registro. Aplicaciones clásicas de la electrónica o la electrotécnica, como tecnologías de medición y regulación, etc.

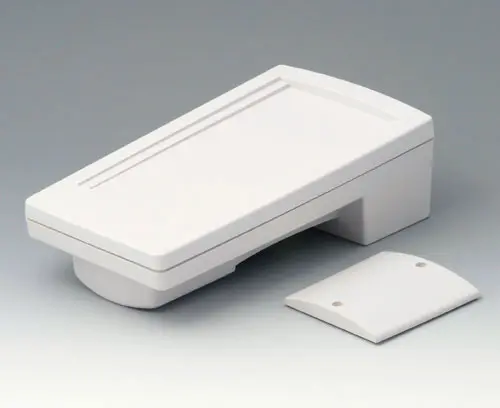

A9046107 HAND-TERMINAL M, Vers. I

A9046107

HAND-TERMINAL M, Vers. I Robust hand-held enclosure. Recessed operation area for membrane keyboards. Screw pillars for PCBs in top and bottom part. Battery compartment as an accessory.

Version With closed operation area

Supply top and bottom part, battery compartment lid, assembly kit incl. PCB-screws and rubber feet

A9046107

HAND-TERMINAL M, Vers. I
Producto añadido a su lista

off-white RAL 9002
220x120x65mm
A9046109 HAND-TERMINAL M, Vers. I

A9046109

HAND-TERMINAL M, Vers. I Robust hand-held enclosure. Recessed operation area for membrane keyboards. Screw pillars for PCBs in top and bottom part. Battery compartment as an accessory.

Version With closed operation area

Supply Top and bottom part, battery compartment lid, assembly kit incl. PCB-screws and rubber feet

A9046109

HAND-TERMINAL M, Vers. I
Producto añadido a su lista

black RAL 9005
220x120x65mm

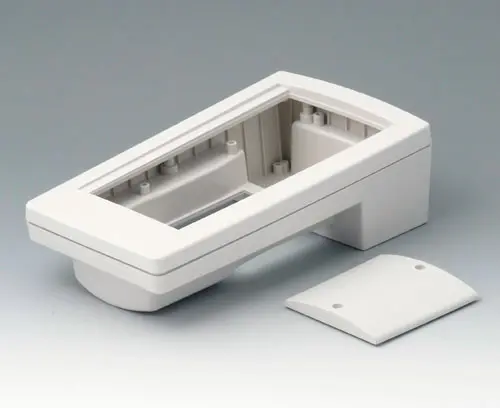

A9046207 HAND-TERMINAL M, Vers. II

A9046207

HAND-TERMINAL M, Vers. II Robust hand-held enclosure. Assembly of the front panels (accessories) from the rear. Screw pillars for PCBs in top and bottom part. Battery compartment as an accessory.

Version With frame cover for the use of an aluminium-front panel (accessories)

Supply Frame cover, bottom part, battery compartment lid, assembly kit incl. screws for the front panel as well as for the PCB and rubber feet

A9046207

HAND-TERMINAL M, Vers. II
Producto añadido a su lista

off-white RAL 9002
220x120x65mm

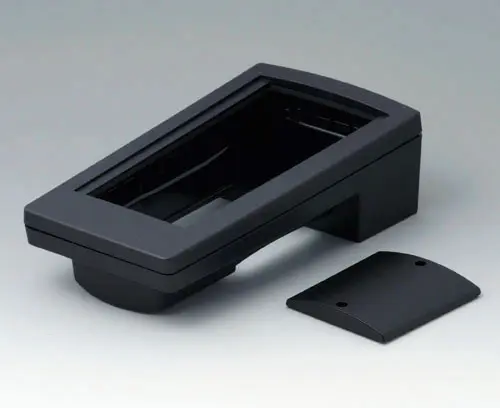

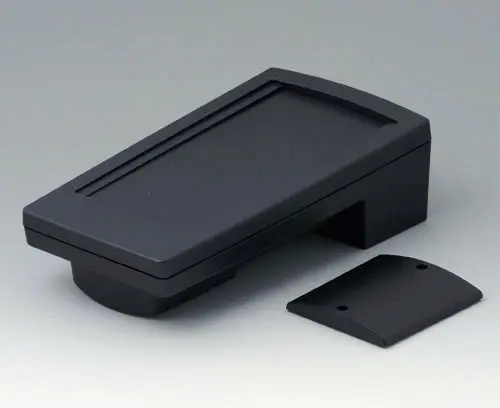

A9046209 HAND-TERMINAL M, Vers. II

A9046209

HAND-TERMINAL M, Vers. II Robust hand-held enclosure. Assembly of the front panels (accessories) from the rear. Screw pillars for PCBs in top and bottom part. Battery compartment as an accessory.

Version With frame cover for the use of an aluminium-front panel (accessories)

Supply Frame cover, bottom part, battery compartment lid, assembly kit incl. screws for the front panel as well as for the PCB and rubber feet

A9046209

HAND-TERMINAL M, Vers. II
Producto añadido a su lista

black RAL 9005
220x120x65mm
A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Producto añadido a su lista
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
Producto añadido a su lista
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0308132

Self-tapping screw 3 x 8 mm (T10)
Producto añadido a su lista

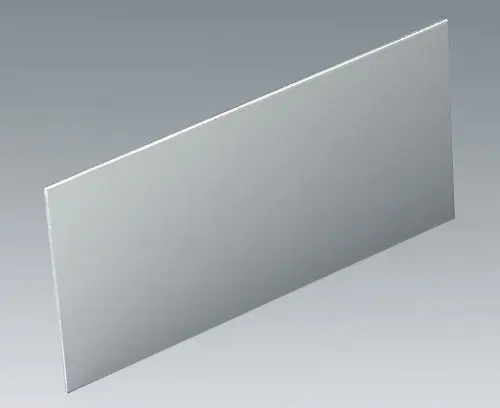

A9146101 Front panel M

A9146101

Front panel M For HAND-TERMINAL version II. Front panel installation at the top part from the rear.

Supply 1 front panel (srews supplied with the case)

A9146101

Front panel M
Producto añadido a su lista

matt anodised
179x88x2mm

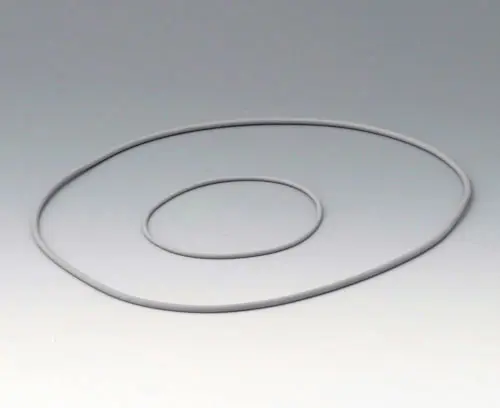

A9146106 Sealing kit M

A9146106

Sealing kit M For the case. For a higher protection class. Attention: for HAND-TERMINAL version II with frame cover for inserting an aluminium front panel additionally sealing A9146206 for the front panel necessary.

Supply 1 sealing kit

A9146106

Sealing kit M
Producto añadido a su lista

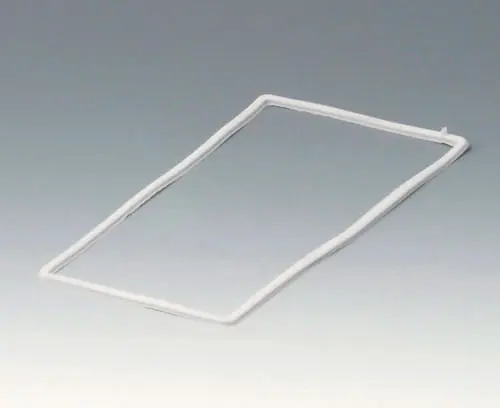

A9146206 Sealing M

A9146206

Sealing M For the front panel of HAND-TERMINAL version II. For a higher protection class.

Supply 1 sealing

A9146206

Sealing M
Producto añadido a su lista
A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

A9160003

Plug-in contact, 1 x 9 V (PP3)
Producto añadido a su lista
A9161002 Set of battery clips, 2 x 9 V or 4 x AA

A9161002

Set of battery clips, 2 x 9 V or 4 x AA For contacting the batteries 2 x 9 V.
Note application DATEC-MOBIL-BOX L with battery compartment: only for this enclosure 2 x 9 V or 4 x AA is possible.

Supply 4 single contacts

A9161002

Set of battery clips, 2 x 9 V or 4 x AA
Producto añadido a su lista

tin-plated
A9174002 Battery compartment, 2 x 9 V

A9174002

Battery compartment, 2 x 9 V Application: for 2 x 9 V flat batteries (PP3).

Supply 1 battery compartment, assembly kit

A9174002

Battery compartment, 2 x 9 V
Producto añadido a su lista

off-white RAL 9002
A9174003 Battery compartment, 1 x 9 V

A9174003

Battery compartment, 1 x 9 V Application: for 1 x 9 V flat battery (PP3).

Supply 1 battery compartment, assembly kit

A9174003

Battery compartment, 1 x 9 V
Producto añadido a su lista

off-white RAL 9002
A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

A9174006

Set of battery clips, 1 x 9 V
Producto añadido a su lista

tin-plated
A9250250 Battery spacer

A9250250

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply 1 spacer

A9250250

Battery spacer
Producto añadido a su lista

50x25x4mm
A9345217 Set of battery compartment, 4 x AA

A9345217

Set of battery compartment, 4 x AA For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).

Supply 1 battery compartment, battery clips nickel-plated, assembly kit

A9345217

Set of battery compartment, 4 x AA
Producto añadido a su lista

off-white RAL 9002

Opciones de productos para Hand-Terminal

¿Qué necesita en su producto personalizado? En caso necesario, le suministramos las cajas y botones giratorios listas para el montaje con todas las modificaciones y acabados precisos.
