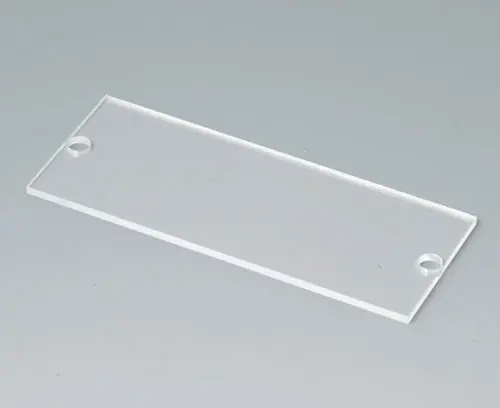

A9161004 Display window N
Scroll

A9161004

Display window N

The display window protects the installed display. For glueing the display window there's an adhesive foil (A9161005) available.

Supply

1 display window

Añadir a la cesta de la compra Añadir a la cesta de la compra Añadir a la cesta de la compra
Producto añadido a su lista
Continuar o abrir la cesta de la compra
Crear ficha de datos PDF

Cree su ficha de datos en PDF para A9161004

Seleccione la información del producto para su ficha de datos.

Cerrar
  • Componentes adecuados

System components to complete

A9061017 HAND-HELD-BOX N, Vers. I

A9061017

HAND-HELD-BOX N, Vers. I Large exclusive hand-held case. With recessed area e.g. for membrane keyboards, control elements. Battery compartment accessible from the outside with locked battery compartment lid. For 2 x 9 V flat batteries (PP3) or 4 x 1.5 V mignon cells (AA). Cut-out section for digital and analogical modules. Raised front area to accommodate plugs.

Version With battery compartment

Supply Top and base part, battery compartment lid, assembly kit

Cerrar

A9061017

HAND-HELD-BOX N, Vers. I
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
180x100x44mm
A9061019 HAND-HELD-BOX N, Vers. I

A9061019

HAND-HELD-BOX N, Vers. I Large exclusive hand-held case. With recessed area e.g. for membrane keyboards, control elements. Battery compartment accessible from the outside with locked battery compartment lid. For 2 x 9 V flat batteries (PP3) or 4 x 1.5 V mignon cells (AA). Cut-out section for digital and analogical modules. Raised front area to accommodate plugs.

Version With battery compartment

Supply Top and base part, battery compartment lid, assembly kit

Cerrar

A9061019

HAND-HELD-BOX N, Vers. I
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005
180x100x44mm
A9061117 HAND-HELD-BOX N, Vers. II

A9061117

HAND-HELD-BOX N, Vers. II Large exclusive hand-held case. With recessed area e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Raised front area to accommodate plugs.

Version Without battery compartment

Supply Top and base part, assembly kit

Cerrar

A9061117

HAND-HELD-BOX N, Vers. II
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
180x100x44mm
A9061119 HAND-HELD-BOX N, Vers. II

A9061119

HAND-HELD-BOX N, Vers. II Large exclusive hand-held case. With recessed area e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Raised front area to accommodate plugs.

Version Without battery compartment

Supply Top and base part, assembly kit

Cerrar

A9061119

HAND-HELD-BOX N, Vers. II
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005
180x100x44mm

Accessory

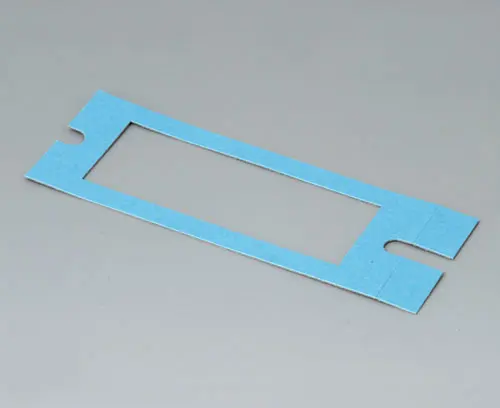

A9161005 Adhesive foil N

A9161005

Adhesive foil N Fastening the display window (A9061004).

Supply 1 adhesive foil

Cerrar

A9161005

Adhesive foil N
Producto añadido a su lista
  • Datos técnicos
  • Purchasing Data
Material
Acrylic glass
Color
transparent
Standards
RoHS compliant
REACH compliant
Length
90 mm
Width
36 mm
Thickness
2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
9 g
Customs tariff number
(OKW product)
39205100
Country of manufacture
Germany
