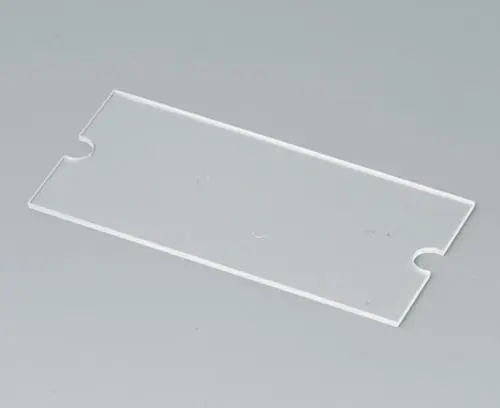

A9160005 Display window M

A9160005

Display window M

The display window protects the installed display. For glueing the display window there's an adhesive foil (A9160006) available.

Supply

1 display window

  • Componentes adecuados

System components to complete

A9062017 HAND-HELD-BOX M, Vers. I

A9062017

HAND-HELD-BOX M, Vers. I Small hand-held case with excellent design. With recessed area, e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Battery compartment accessible from the outside with locked battery compartment lid. Raised front area to accommodate plugs.

Version With battery compartment for 9 V flat batteries (PP3) or 1.5 V baby cells (C) with contacts for soldering

Supply Top and base part, battery compartment lid, assembly kit

Cerrar

A9062017

HAND-HELD-BOX M, Vers. I
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
145x80x38,5mm
A9062019 HAND-HELD-BOX M, Vers. I

A9062019

HAND-HELD-BOX M, Vers. I Small hand-held case with excellent design. With recessed area, e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Battery compartment accessible from the outside with locked battery compartment lid. Raised front area to accommodate plugs.

Version With battery compartment for 9 V flat batteries (PP3) or 1.5 V baby cells (C)

Supply Top and base part, battery compartment lid, assembly kit

Cerrar

A9062019

HAND-HELD-BOX M, Vers. I
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005
145x80x38,5mm

Accessory

A9160006 Adhesive foil P/M

A9160006

Adhesive foil P/M Fastening the display window (A9060004, A9060005).

Supply 1 adhesive foil

Cerrar

A9160006

Adhesive foil P/M
Producto añadido a su lista
  • Datos técnicos
  • Purchasing Data
Color
transparent
Length
60 mm
Width
30 mm
Thickness
1 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
4 g
Customs tariff number
(OKW product)
39219090
Country of manufacture
Germany
