A9082065

DESK CASE 220

Two-part case with sloped operation area. Fastenings pillars for mounting PCBs in the base. Raised rear area to accommodate plugs.

Supply

1 top and base part, assembly kit

  • Componentes adecuados
  • Modificaciones específicas del cliente

Accessory to complete

AltText

A9180001

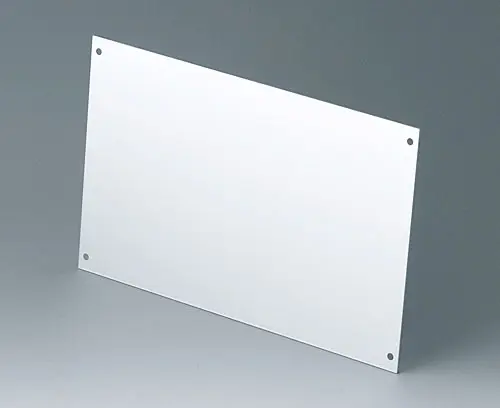

Front panel 220 Front panel for DESK CASE 220.

Supply 1 front panel (screws supplied with case)

Cerrar

A9180001

Front panel 220
Producto añadido a su lista
Aluminium
matt anodised
205,5x129,4x1,5mm

Accessory "screws"

AltText

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Producto añadido a su lista

Accessory

AltText

A9210290

Anti-slide feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Cerrar

A9210290

Anti-slide feet 9.5 x 3.8 mm
Producto añadido a su lista
transparent

Customising options for A9082065

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Datos técnicos
  • Planos / Documentos
  • Purchasing Data
Color
Top part off-white RAL 9002,
Bottom part pebble grey RAL 7032
Width
220 mm
Depth
156 mm
Height
100 mm
PCB length, base
147 mm
PCB width, base
210 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
300 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
