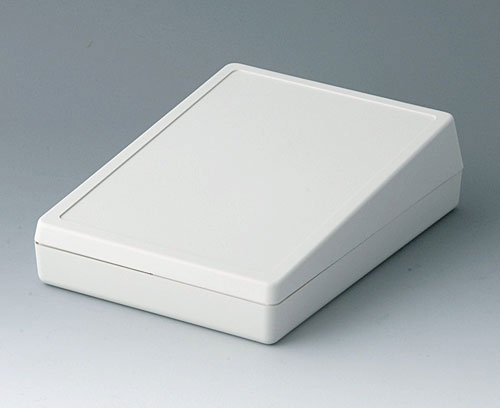

A0514007 DESK CASE 138

A0514007

DESK CASE 138

Two-part case with closed top. Ergonomically sloped control area recessed by 0.8 mm . Suitable for numerical keypads and membrane keyboards. Fastening pillars for PCBs or keyboards in the top and base.

Supply

1 top and base part, assembly kit

  • Componentes adecuados
  • Modificaciones específicas del cliente

Accessory "wall/holder"

B1360048 Wall suspension elements

B1360048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit

Cerrar

B1360048

Wall suspension elements
Producto añadido a su lista
ABS (UL 94 HB)
pebble grey RAL 7032

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Producto añadido a su lista

Accessory

A9210290 Anti-slide feet 9.5 x 3.8 mm

A9210290

Anti-slide feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Cerrar

A9210290

Anti-slide feet 9.5 x 3.8 mm
Producto añadido a su lista
transparent

Customising options for A0514007

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Datos técnicos
  • Planos / Documentos
  • Purchasing Data
Color
off-white RAL 9002
Width
138 mm
Depth
190 mm
Height
54 mm
PCB length, base
180 mm
PCB width, base
118 mm
PCB length, top
175 mm
PCB width, top
127 mm
Keypad length
166,2 mm
Keypad width
119,7 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
270 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
