SHELL-TYPE CASES G 155, Vers. IV
Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.
VersionWith battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cells (AA)
Supply1 top and base part, battery compartment lid, assembly kit
Plano 2D en PDF
Vista en 3D en PDF
Descarga 3D/2D
Descarga 3D/2D
Cree su ficha de datos en PDF para A9408345
Seleccione la información del producto para su ficha de datos.
Añadir a la cesta de la compra
Accessory "battery"
A9160003
Plug-in contact, 1 x 9 V (PP3)
Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).
Application: for a 9 V flat battery (PP3).
Supply 1 plug-in contact
A9160003
Plug-in contact, 1 x 9 V (PP3)Producto añadido a su lista
A9190014

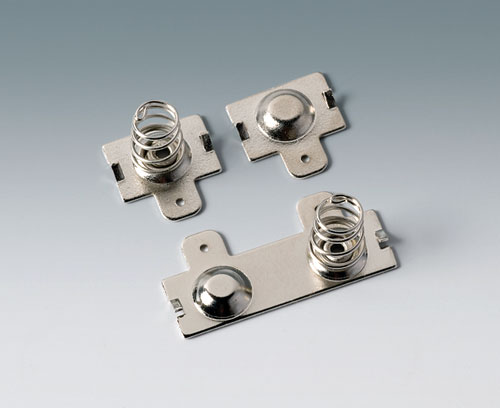

Set of battery clips, 2 x AA
For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.
Supply 1 double contact left, 1 single contact positive, 1 single contact negative
A9190014
Set of battery clips, 2 x AAProducto añadido a su lista
nickel-plated
A9250250
Battery spacer
The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.
Supply 1 spacer
A9250250
Battery spacerProducto añadido a su lista
50x25x4mm
Accessory "protection"
A9108120
Contact-strips V, O, G 155
Provide additional electrical continuity between the top and base shells of shielded cases (order two pieces, one for each side).
Supply 1 contact-strip
A9108120
Contact-strips V, O, G 155Producto añadido a su lista
Accessory "carrying"
A9100002
Ring eyelet
For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.
Supply 1 ring eyelet
A9100002
Ring eyeletProducto añadido a su lista
volcano
Accessory "screws"
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)Producto añadido a su lista
Accessory
A9210290
Anti-slide feet 9.5 x 3.8 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply 2 rubber feet
A9210290
Anti-slide feet 9.5 x 3.8 mmProducto añadido a su lista
Customising options for A9408345
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Datos técnicos
-
Modelos 3D & Planos / Documentos
- Purchasing Data
Anchura
95 mm
Profundidad
158 mm
Altura
45 mm
PCB length, base
119 mm
PCB width, base
77 mm
PCB length, top
148 mm
PCB width, top
77 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 307 KB
- AutoCAD DWG-File 599 KB
- AutoCAD DXF-File 2.115 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 1.238 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008504.x_t 3.350 KB
- 00008504.STEP 10.644 KB
- 00008504.SAT 10.285 KB
Weight/1 part
160 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
