Accesorios para cajas
A9408336
SHELL-TYPE CASES V 155, Vers. IV
Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
VersionWith battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cells (AA)
Supply1 top and base part, battery compartment lid, assembly kit
Cree su ficha de datos en PDF para A9408336
Seleccione la información del producto para su ficha de datos.
Accessory to complete
A9108113
Supply 1 front panel
A9108113

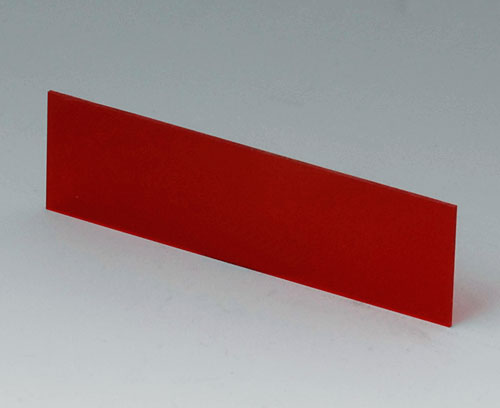

Front / rear panel V, O 155red transparent
81,9x23,6x1mm
A9109111
Supply 1 front panel
A9109111

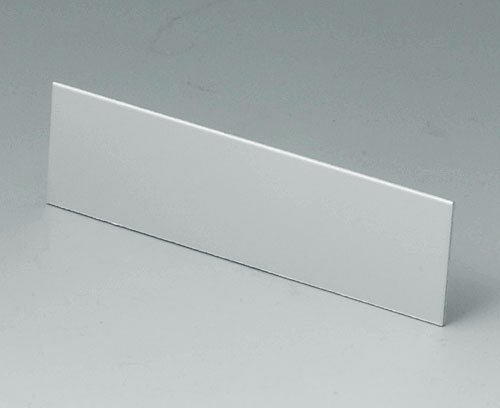

Front / rear panel V, O 155matt anodised
81,9x23,6x1mm
Accessory "battery"
A9160003
Application: for a 9 V flat battery (PP3).
Supply 1 plug-in contact
A9160003
Plug-in contact, 1 x 9 V (PP3)
A9190014
Supply 1 double contact left, 1 single contact positive, 1 single contact negative
A9190014
Set of battery clips, 2 x AAnickel-plated
A9250250
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.
Supply 1 spacer
A9250250
Battery spacer50x25x4mm
Accessory "protection"
A9108120
Supply 1 contact-strip
A9108120
Contact-strips V, O, G 155Accessory "carrying"
A9100002
Supply 1 ring eyelet
A9100002
Ring eyeletvolcano
Accessory "screws"
A0306031
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)Accessory
A9210290
Supply 2 rubber feet
A9210290
Anti-slide feet 9.5 x 3.8 mmDrawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 278 KB
- AutoCAD DWG-File 735 KB
- AutoCAD DXF-File 2.683 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 1.837 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008493.x_t 4.435 KB
- 00008493.STEP 12.336 KB
- 00008493.SAT 11.422 KB
(OKW product)
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para A9408336 y no olvide solicitar presupuesto.
