A9406334

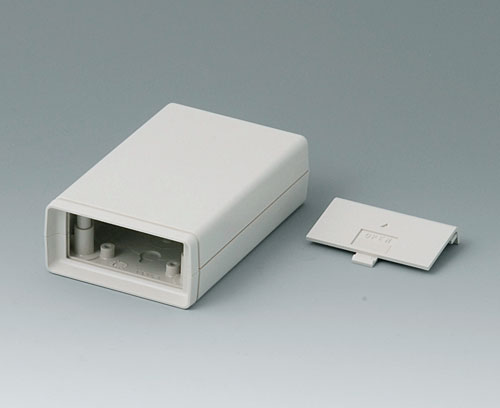

SHELL-TYPE CASES V 110, Vers. II
Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
VersionWith battery compartment
Supply1 top and base part, battery compartment lid, assembly kit
Cree su ficha de datos en PDF para A9406334
Seleccione la información del producto para su ficha de datos.
Accessory to complete
A9106113
Supply 1 front panel
A9106113

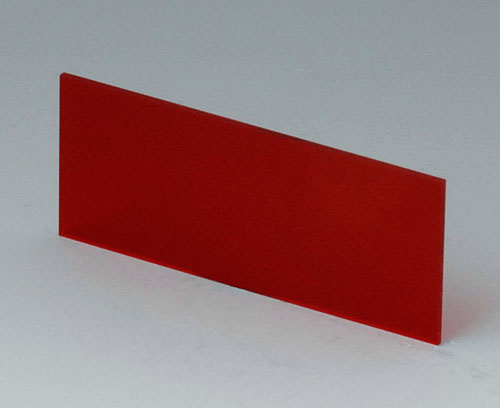

Front / rear panel V 110red transparent
59,3x25x1mm
A9107111
Supply 1 front panel
A9107111

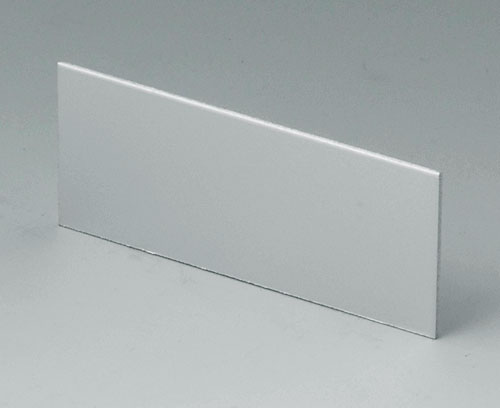

Front / rear panel V 110matt anodised
59,3x25x1mm
Accessory "battery"
A9160003
Application: for a 9 V flat battery (PP3).
Supply 1 plug-in contact
A9160003
Plug-in contact, 1 x 9 V (PP3)Accessory "protection"
A9106095
Supply 1 contact-strip
A9106095

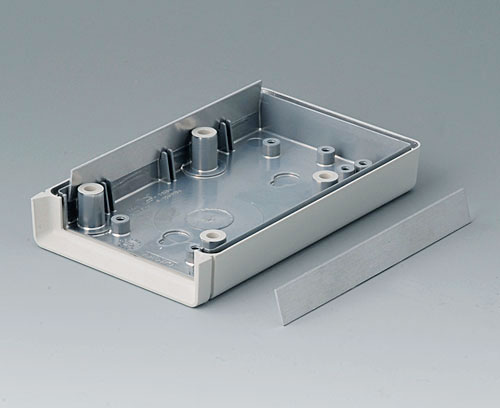

Contact-strips V, G 110Accessory "carrying"
A9100002
Supply 1 ring eyelet
A9100002
Ring eyeletvolcano
Accessory "screws"
A0306031
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)Accessory
A9207150
Supply 2 rubber feet
A9207150
Anti-slide feet 6.5 x 2 mmDrawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 267 KB
- AutoCAD DWG-File 617 KB
- AutoCAD DXF-File 2.164 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 986 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008474.x_t 3.184 KB
- 00008474.STEP 9.851 KB
- 00008474.SAT 9.610 KB
(OKW product)
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para A9406334 y no olvide solicitar presupuesto.
