Accesorios para cajas
B6112112
Rear panel
Rear panel for DIN-MODULAR CASE 48 x 48.
Supply1 rear panel
Cree su ficha de datos en PDF para B6112112
Seleccione la información del producto para su ficha de datos.
Añadir a la cesta de la compra
B6012011
DIN-MODULAR CASE TYPE A
Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6012011
DIN-MODULAR CASE TYPE AProducto añadido a su lista
black RAL 9005
48x48x57mm
B6012021
DIN-MODULAR CASE TYPE A
Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6012021
DIN-MODULAR CASE TYPE AProducto añadido a su lista
black RAL 9005
48x48x75mm

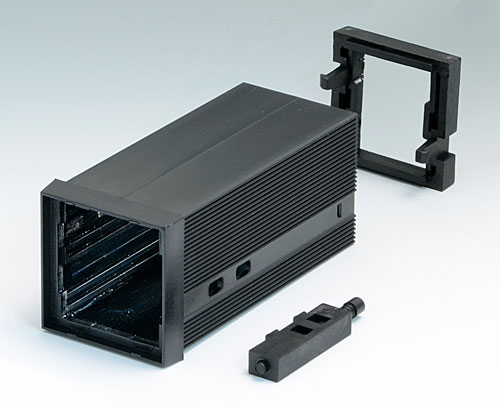

B6012031
DIN-MODULAR CASE TYPE A
Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6012031
DIN-MODULAR CASE TYPE AProducto añadido a su lista
black RAL 9005
48x48x100mm
B6012051
DIN-MODULAR CASE TYPE A
Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6012051
DIN-MODULAR CASE TYPE AProducto añadido a su lista
black RAL 9005
48x48x114mm

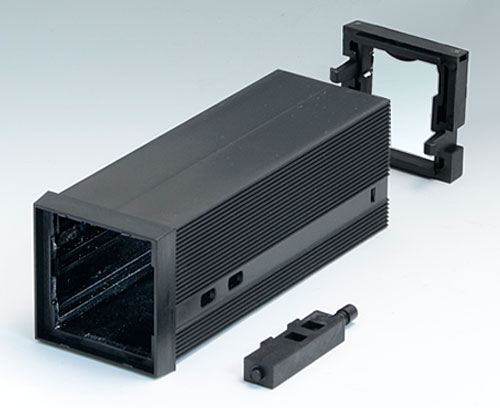

B6012061
DIN-MODULAR CASE TYPE A
Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6012061
DIN-MODULAR CASE TYPE AProducto añadido a su lista
black RAL 9005
48x48x124mm
Customising options for B6112112
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
Anchura
42,2 mm
Altura
29,6 mm
Grosor
1 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
3 g
Customs tariff number
(OKW product)
(OKW product)
76069200
Country of manufacture
Italia
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para B6112112 y no olvide solicitar presupuesto.
