B6034011

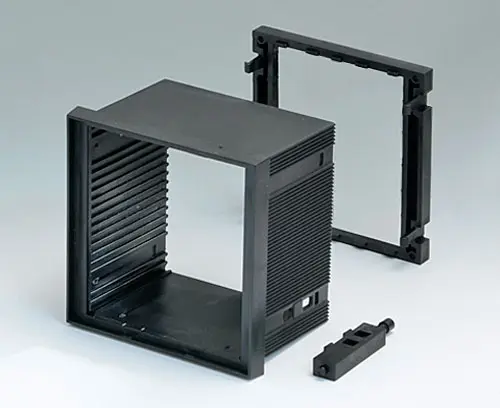

DIN-MODULAR CASE TYPE A, Vers. I
Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.
VersionWith guide ridges for slide-in PCB mounting on 2 sides
Supply1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
Plano 2D en PDF
Vista en 3D en PDF
Descarga 3D/2D
Descarga 3D/2D
Cree su ficha de datos en PDF para B6034011
Seleccione la información del producto para su ficha de datos.
Añadir a la cesta de la compra
Accessory to complete

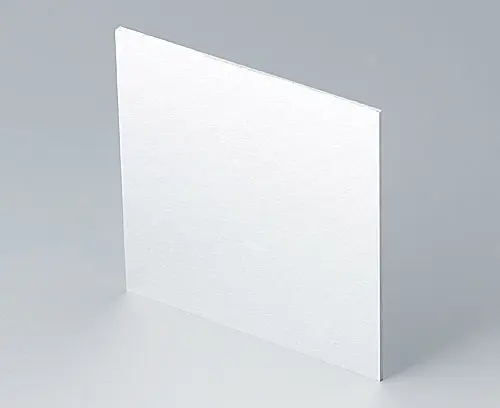

B6134111
Front panel
Front panel for DIN-MODULAR CASE 96 x 96.
Supply 1 front panel
B6134111
Front panelProducto añadido a su lista
matt anodised
90,6x90,6x1,5mm

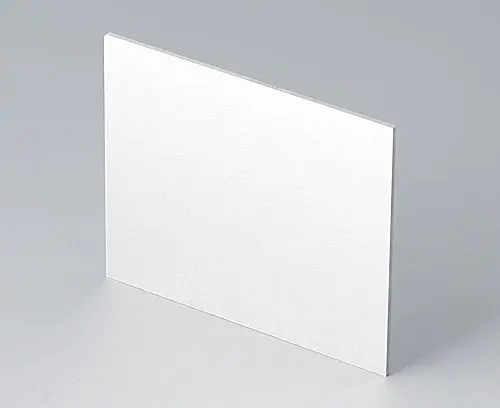

B6134112
Rear panel
Rear panel for DIN-MODULAR CASE 96 x 96.
Supply 1 rear panel
B6134112
Rear panelProducto añadido a su lista
matt anodised
86,7x71,7x1,5mm

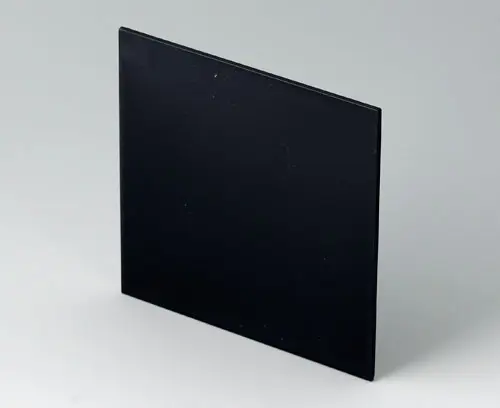

B6134221
Front panel
Front panel for DIN-MODULAR CASE 96 x 96.
Supply 1 front panel
B6134221
Front panelProducto añadido a su lista
black RAL 9005
90,7x90,7x2mm

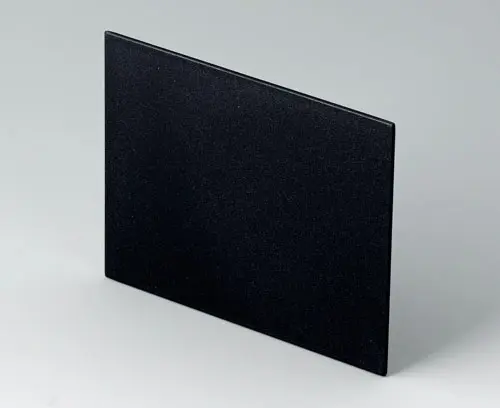

B6134222
Rear panel
Rear panel for DIN-MODULAR CASE 96 x 96.
Supply 1 rear panel
B6134222
Rear panelProducto añadido a su lista
black RAL 9005
86,8x71,8x1,7mm

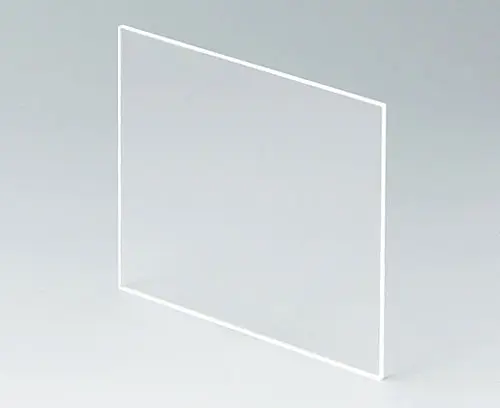

B6134331
Front panel
Front panel for DIN-MODULAR CASE 96 x 96.
Supply 1 front panel
B6134331
Front panelProducto añadido a su lista
transparent
90,6x90,6x2,2mm

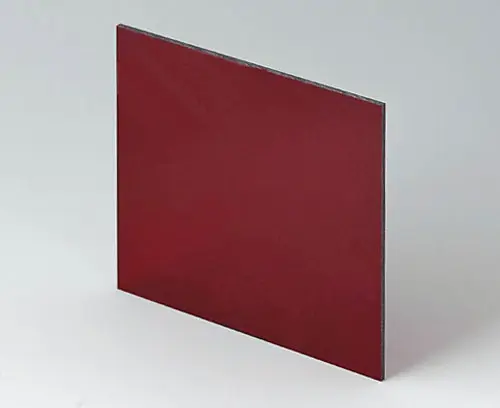

B6134341
Front panel
Front panel for DIN-MODULAR CASE 96 x 96.
Supply 1 front panel
B6134341
Front panelProducto añadido a su lista
red transparent
90,6x90,6x2mm
Accessory "protection"

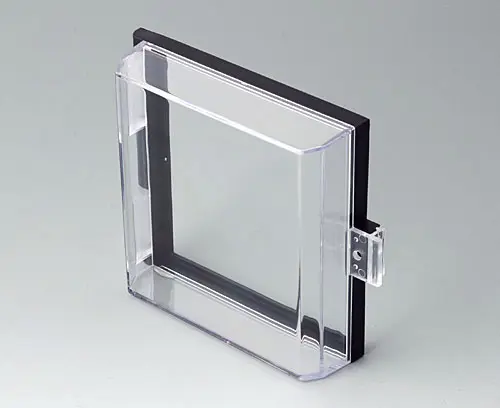

B6134533
Protection cover
Protection cover for DIN-MODULAR CASE 96 x 96.
Supply 1 protection cover
B6134533
Protection coverProducto añadido a su lista
transparent
Customising options for B6034011
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Datos técnicos
-
Modelos 3D & Planos / Documentos
- Purchasing Data
Anchura
96 mm
Altura
96 mm
Profundidad
57 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 173 KB
- AutoCAD DWG-File 365 KB
- AutoCAD DXF-File 1.197 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 144 KB
Weight/1 part
90 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Italia
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para B6034011 y no olvide solicitar presupuesto.
