B6023031 DIN-MODULAR CASE TYPE A

B6023031

DIN-MODULAR CASE TYPE A

Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply

1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

  • Componentes adecuados
  • Modificaciones específicas del cliente

Accessory to complete

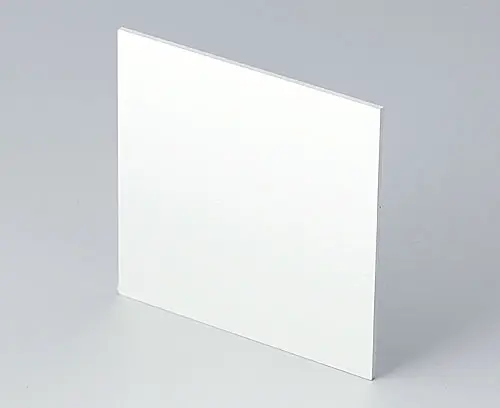

B6123111 Front panel

B6123111

Front panel Front panel for DIN-MODULAR CASE 72 x 72.

Supply 1 front panel

Cerrar

B6123111

Front panel
Producto añadido a su lista
Aluminium
matt anodised
67,5x67,5x1,5mm

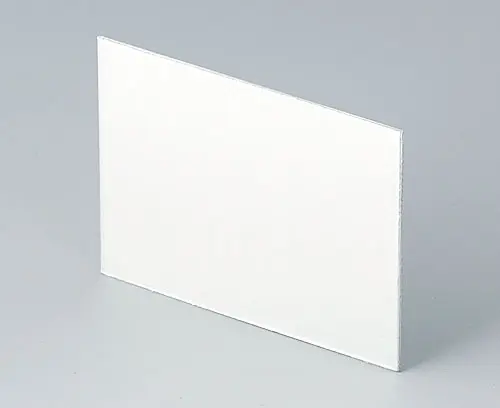

B6123112 Rear panel

B6123112

Rear panel Rear panel for DIN-MODULAR CASE 72 x 72.

Supply 1 rear panel

Cerrar

B6123112

Rear panel
Producto añadido a su lista
Aluminium
matt anodised
63,7x49,1x1mm
B6123221 Front panel

B6123221

Front panel Front panel for DIN-MODULAR CASE 72 x 72.

Supply 1 front panel

Cerrar

B6123221

Front panel
Producto añadido a su lista
PPO (UL 94 V-0)
black RAL 9005
67,6x67,6x2mm

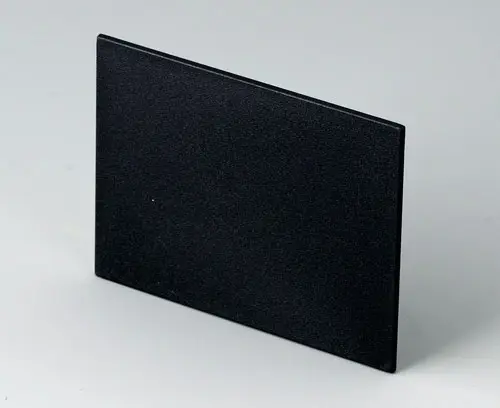

B6123222 Rear panel

B6123222

Rear panel Rear panel for DIN-MODULAR CASE 72 x 72.

Supply 1 rear panel

Cerrar

B6123222

Rear panel
Producto añadido a su lista
PPO (UL 94 V-0)
black RAL 9005
63,8x49,2x1,7mm
B6123331 Front panel

B6123331

Front panel Front panel for DIN-MODULAR CASE 72 x 72.

Supply 1 front panel

Cerrar

B6123331

Front panel
Producto añadido a su lista
Acrylic glass
transparent
67,5x67,5x2mm
B6123341 Front panel

B6123341

Front panel Front panel for DIN-MODULAR CASE 72 x 72.

Supply 1 front panel

Cerrar

B6123341

Front panel
Producto añadido a su lista
Acrylic glass
red transparent
67,5x67,5x2mm
B6123451 Front panel

B6123451

Front panel Front panel permeable to infra-red light for DIN-MODULAR CASE 72 x 72.

Supply 1 front panel

Cerrar

B6123451

Front panel
Producto añadido a su lista
PC (IR)
67,6x67,6x2mm

Accessory "protection"

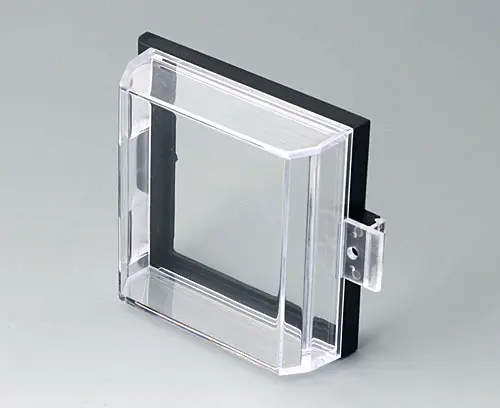

B6123533 Protection cover

B6123533

Protection cover Protection cover for DIN-MODULAR CASE 72 x 72.

Supply 1 protection cover

Cerrar

B6123533

Protection cover
Producto añadido a su lista
PC
transparent

Customising options for B6023031

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Datos técnicos
  • Planos / Documentos
  • Purchasing Data
Color
black RAL 9005
Standards
Width
72 mm
Height
72 mm
Depth
100 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
89 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Italia
