A2431068

SPINDLE-SHAPED KNOB 31, with line

Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. Black marking.
Max. torque: assembly = 1,8 Nm, function = 1,6 Nm.

Supply

1 spindle-shaped knob

  • Componentes adecuados
  • Modificaciones específicas del cliente

System components to complete

AltText

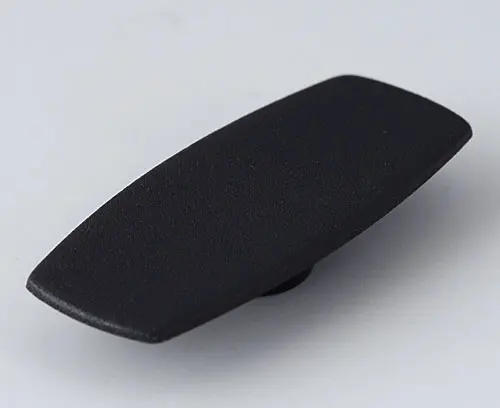

A5031000

Cover 31, without line Suitable for spindle-shaped knob 31. Cover simply to pin up.

Supply 1 cover

Cerrar

A5031000

Cover 31, without line
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005
AltText

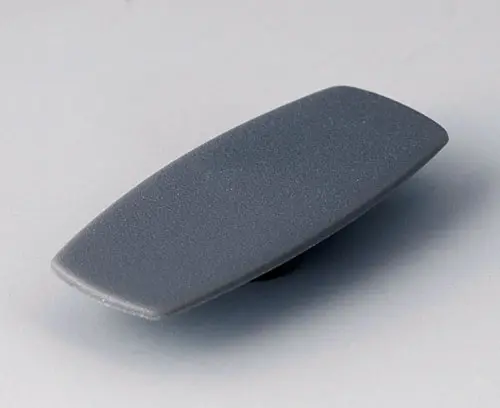

A5031008

Cover 31, without line Suitable for spindle-shaped knob 31. Cover simply to pin up.

Supply 1 cover

Cerrar

A5031008

Cover 31, without line
Producto añadido a su lista
ABS (UL 94 HB)
dusty grey RAL 7037
AltText

A5031100

Cover 31, with line Suitable for spindle-shaped knob 31. Cover simply to pin up. White marking.

Supply 1 cover

Cerrar

A5031100

Cover 31, with line
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005
AltText

A5031107

Cover 31, with line Suitable for spindle-shaped knob 31. Cover simply to pin up. Black marking.

Supply 1 cover

Cerrar

A5031107

Cover 31, with line
Producto añadido a su lista
ABS (UL 94 HB)
pebble grey RAL 7032
AltText

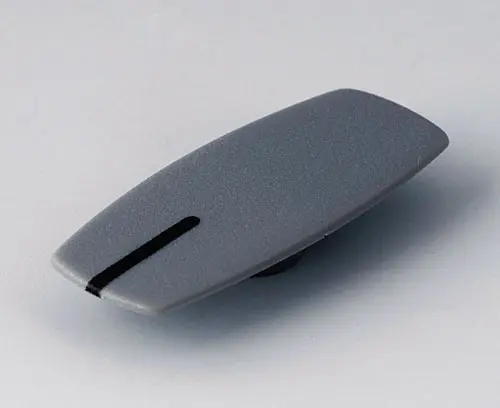

A5031108

Cover 31, with line Suitable for spindle-shaped knob 31. Cover simply to pin up. Black marking.

Supply 1 cover

Cerrar

A5031108

Cover 31, with line
Producto añadido a su lista
ABS (UL 94 HB)
dusty grey RAL 7037

Accessory "screws"

AltText

A5131000

Nut cover 31, without line Suitable for spindle-shaped knob 31. Nut cover simply to pin up.

Supply 1 nut cover

Cerrar

A5131000

Nut cover 31, without line
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005
AltText

A5131008

Nut cover 31, without line Suitable for spindle-shaped knob 31. Nut cover simply to pin up.

Supply 1 nut cover

Cerrar

A5131008

Nut cover 31, without line
Producto añadido a su lista
ABS (UL 94 HB)
dusty grey RAL 7037
AltText

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Cerrar

A6207009

Round nut M7 x 0.75
Producto añadido a su lista
AltText

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Cerrar

A6210009

Round nut M10 x 0.75
Producto añadido a su lista
AltText

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Cerrar

A6295009

Round nut 3/8"-32G
Producto añadido a su lista
AltText

A6300000

Spanner For tightening the round nut.

Supply 1 spanner

Cerrar

A6300000

Spanner
Producto añadido a su lista

Customising options for A2431068

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Datos técnicos
  • Planos / Documentos
  • Purchasing Data
Color
dusty grey RAL 7037
Diameter
31 mm
Height
16 mm
Bore hole
6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
9 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
