Accesorios para cajas
B2514107
BLOB PANEL

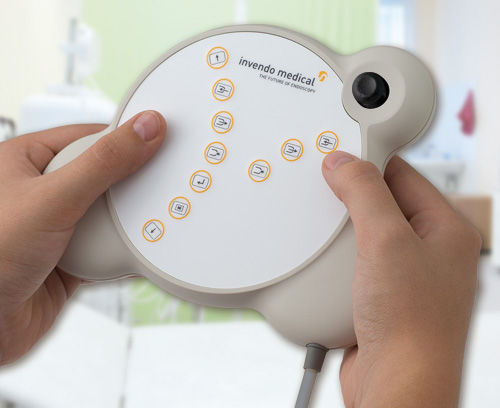

An enclosure that can be held and operated with two hands. Two-part enclosure design with symmetrically positioned gripping areas. Recessed surface for membrane keyboards. Separate recess for special functions. Attachment domes for a PCB in the top part.
SupplyTop and bottom parts, assembly kit
Cree su ficha de datos en PDF para B2514107
Seleccione la información del producto para su ficha de datos.
Accessory "battery"
A9193033
Supply Polarity reversal protection device
A9193033
Polarity reversal protection device, positive terminal AAoff-white RAL 9002
A9193034
Supply Polarity reversal protection device
A9193034
Polarity reversal protection device, positive terminal AAAoff-white RAL 9002
A9193035
Supply 1 battery clip
A9193035
Battery clip, AAnickel-plated
A9193036
Supply 1 battery clip
A9193036
Battery clip, AAAnickel-plated
A9193037
Version Horizontal
Supply 1 button cell holder
A9193037
Button cell holder, Ø 20 mm
A9193038
Version Horizontal
Supply 1 button cell holder
A9193038
Button cell holder, Ø 23 mm
A9193039
Version Horizontal
Supply 1 button cell holder
A9193039
Button cell holder, Ø 12 mm
A9193040
Version Horizontal
Supply 1 button cell holder
A9193040
Button cell holder, Ø 16 mmAccessory "protection"

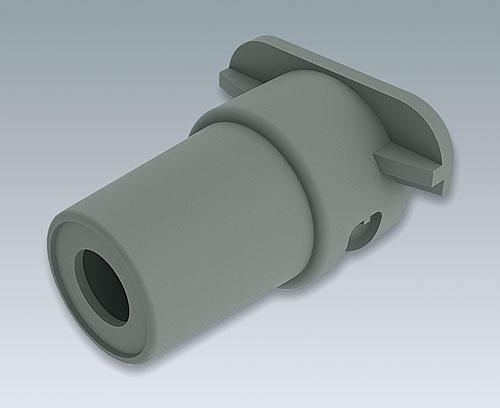

B2610101
Version For cables Ø 5.0 - 5.9 mm
Supply 1 cable bushing
B2610101
Cable strain, 5.0 - 5.9volcano

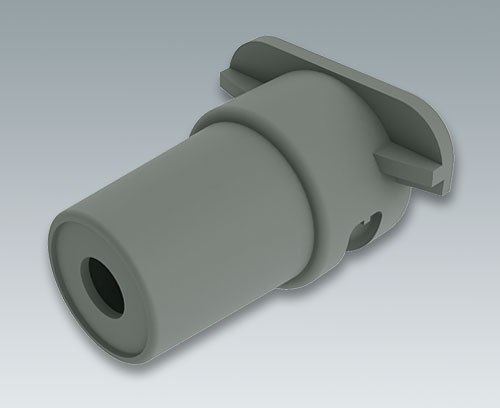

B2610111
Version For cables Ø 4.2 - 5.0 mm
Supply 1 cable bushing
B2610111
Cable strain, 4.2 - 5.0volcano

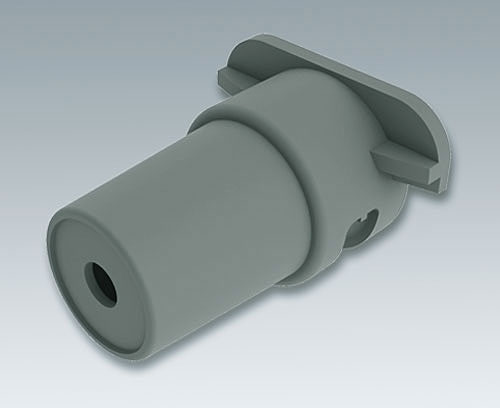

B2610121
Version For cables Ø 3.4 - 4.2 mm
Supply 1 cable bushing
B2610121
Cable strain, 3.4 - 4.2volcano

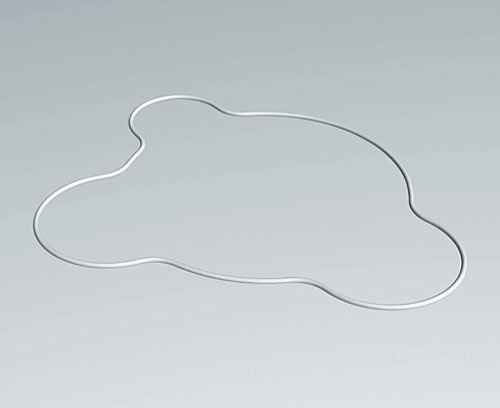

B2614001
Supply 1 sealing
B2614001
Sealing PanelAccessory "screws"
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)Necessary accessories: sealing
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 315 KB
- AutoCAD DWG-File 542 KB
- AutoCAD DXF-File 1.873 KB
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 2.791 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00013202.x_t 2.071 KB
- 00013202.step 9.764 KB
- 00013202.SAT 22.304 KB
(OKW product)
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para B2514107 y no olvide solicitar presupuesto.
