Accesorios para cajas
A9152049

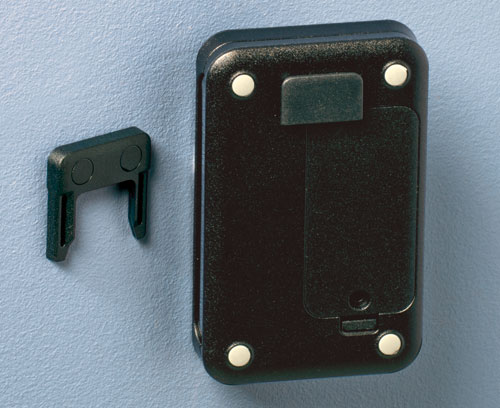

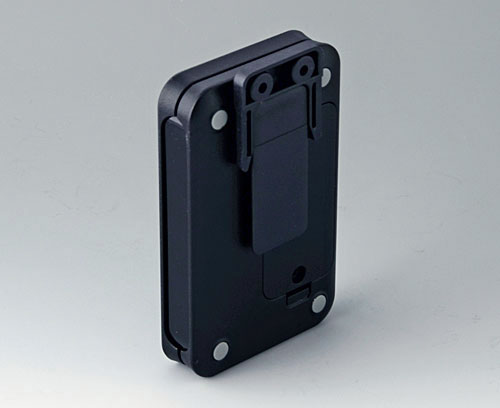

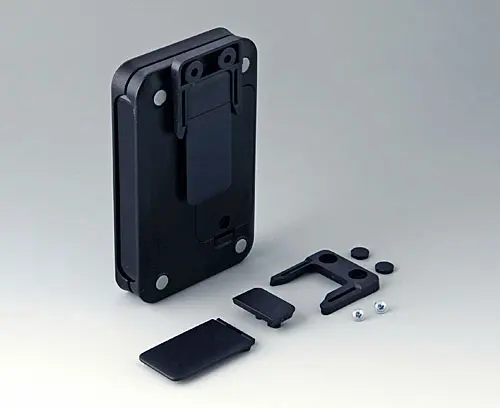

Combi-Clip
Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.
Supply1 set
Cree su ficha de datos en PDF para A9152049
Seleccione la información del producto para su ficha de datos.
A9050209
Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9050209
SOFT-CASE Sblack RAL 9005
51x82x14mm
,
A9051209
Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9051209
SOFT-CASE Mblack RAL 9005
65x105x19mm
,
A9051219
Version With battery compartment for 2 x AAA, accessible from the outside
Supply Top and bottom part, battery compartment lid, assembly kit
A9051219
SOFT-CASE Mblack RAL 9005
65x105x19mm
A9052209
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9052209
SOFT-CASE Lblack RAL 9005
73x117x24mm
,
A9052219
Version With battery compartment for 2 x AA, accessible from the outside
Supply Top and bottom part, battery compartment lid, assembly kit
A9052219
SOFT-CASE Lblack RAL 9005
73x117x24mm
A9052229
Version With battery compartment for 1 x 9 V (PP3), accessible from the outside
Supply Top and bottom part, battery compartment lid, assembly kit
A9052229
SOFT-CASE Lblack RAL 9005
73x117x24mm
A9053209
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9053209
SOFT-CASE XLblack RAL 9005
92x150x28mm
A9053219
Version With battery compartment for 4 x AA, accessible from the outside
Supply Top and bottom part, battery compartment lid, assembly kit
A9053219
SOFT-CASE XLblack RAL 9005
92x150x28mm
- 3D PDF (Acrobat Reader) (girar el producto 360°, mostrar u ocultar componentes y accesorios, etc.) 145 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008402.x_t 867 KB
- 00008402.STEP 1.600 KB
- 00008402.SAT 1.842 KB
(OKW product)
Servicio de personalización: Podemos modificar nuestras cajas para satisfacer sus requisitos específicos. Le entregaremos sus cajas totalmente acabadas y listas para usar. Lo único que tiene que hacer es instalar su equipo en su interior. Vea las opciones de personalización para A9152049 y no olvide solicitar presupuesto.
