Style-Case

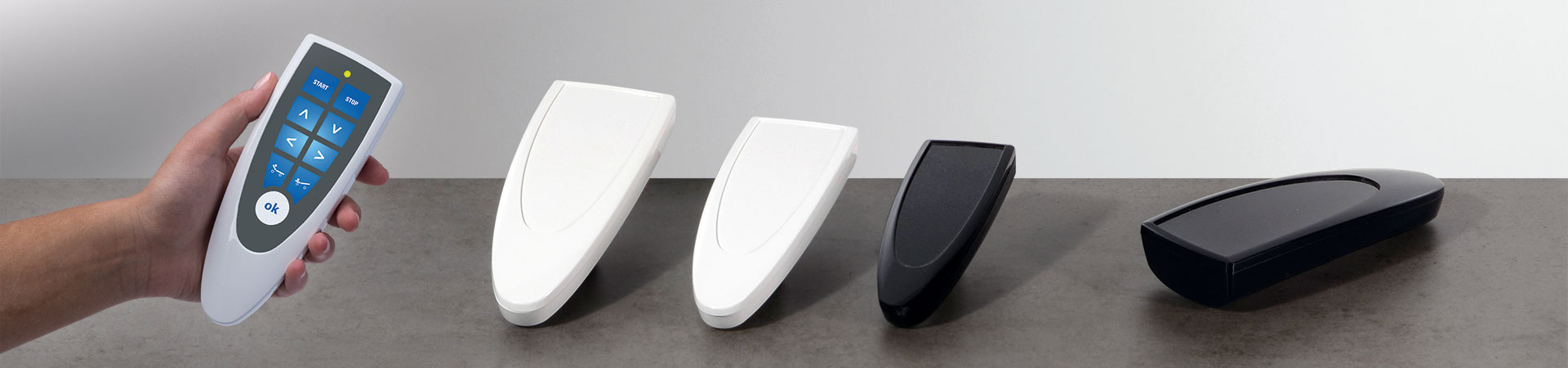

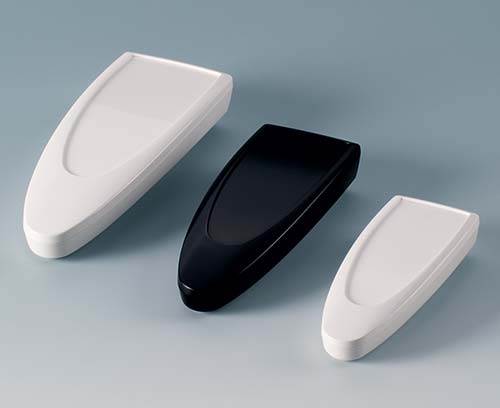

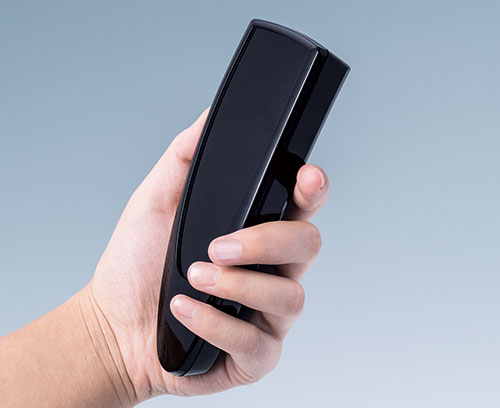

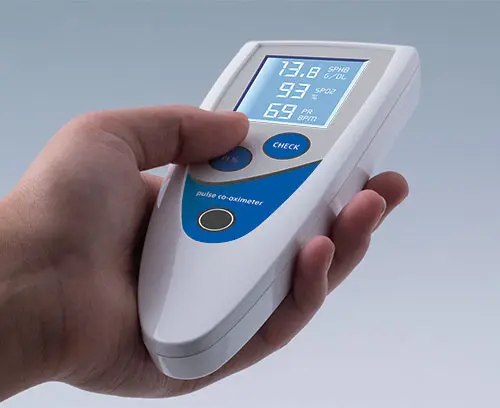

Ergonomická ruční pouzdra s brilantním leskem
Firma OKW představuje STYLE-CASE s vysoce leštěnými povrchy a tím nastavuje dodatečné vylepšení designu pro moderní ruční ovládací jednotky. Díky příjemnému pocitu jsou případy příjemným dotykem s elegantním vzhledem, uklidňujícím a bezpečným použitím.

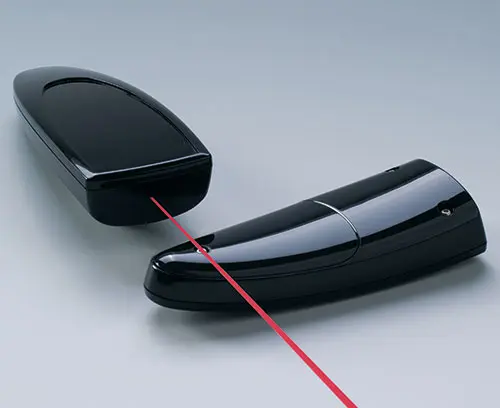

- Vysoce kvalitní ASA s vysokou ochranou proti UV záření nebo infračerveným průhledným materiálem PMMA (plexisklo)

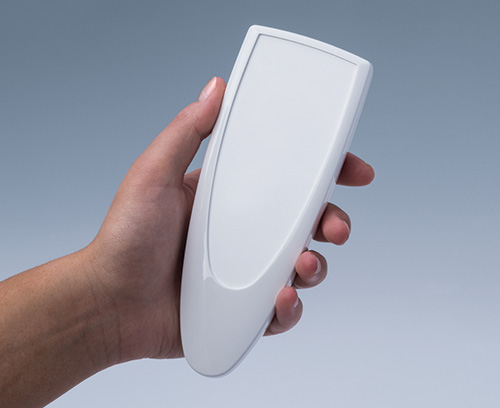

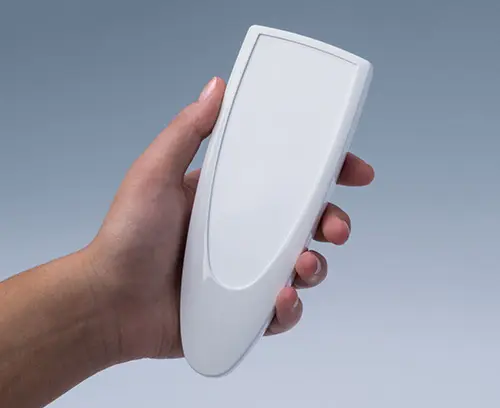

- Lesklý povrch snadno se čistí
- Robustní a nepropustné do IP 65, těsnící sada jako příslušenství
- Šroubové připojení s šrouby z nerezové oceli a pohonem Torx

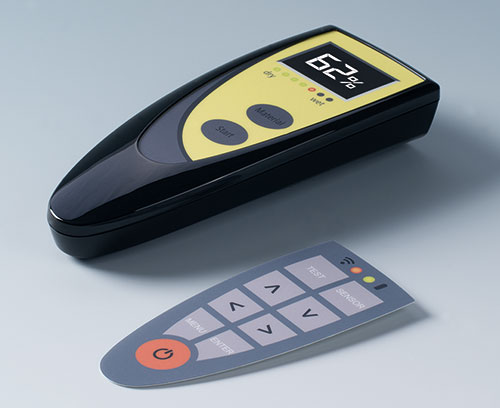

- Vestavěná ovládací plocha pro ochranu membránových klávesnic / dekorativních fólií

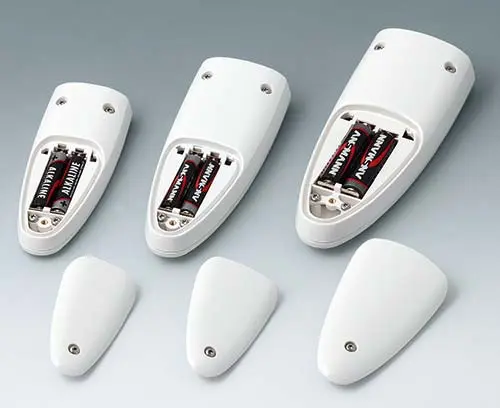

- Integrovaný prostor pro baterie: 2 x 1,5 V AAA (S, M) a 2 x 1,5 V AA (L)

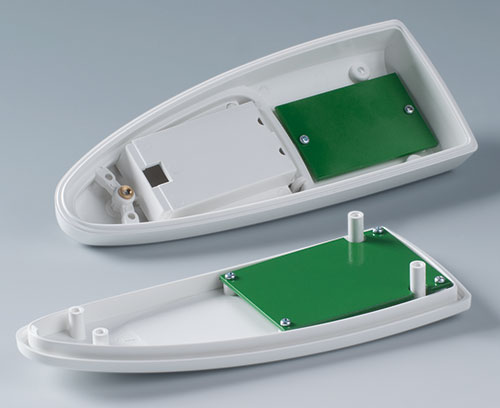

- Montážní dome pro desky plošných spojů a vestavěné komponenty, samořezné šrouby pro montáž na desky jako příslušenství
Obory aplikací

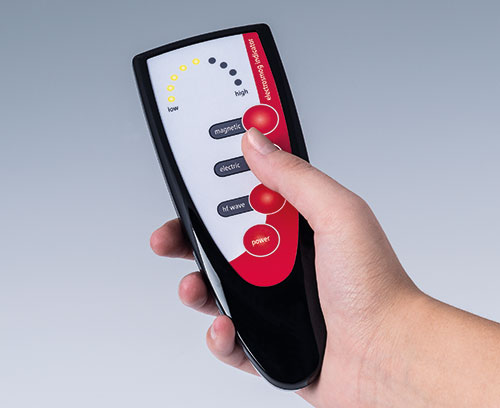

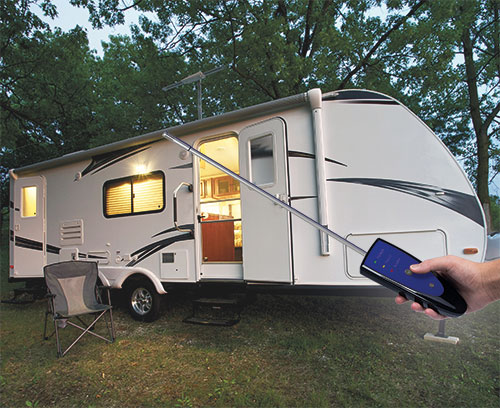

Předurčeno pro designové dálkové ovládání různého typu. Především v nemocničních zařízeních, ale také v domácnostech a průmyslu.
B2802016

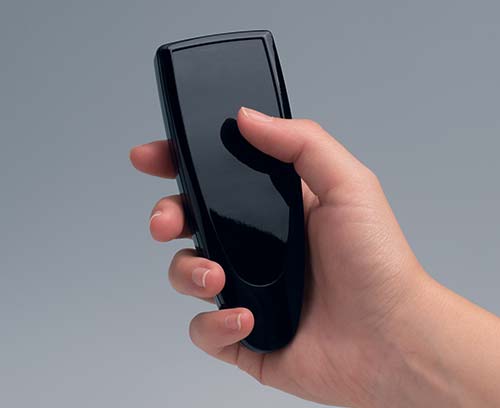

STYLE-CASE S
Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.

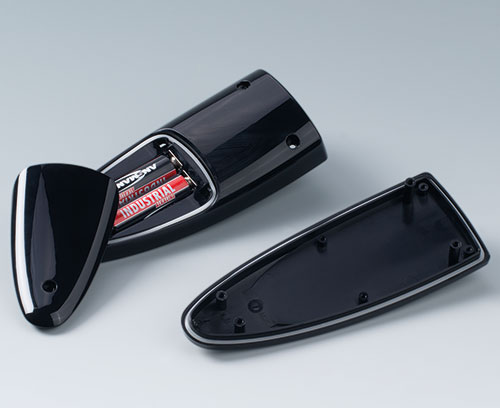

Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Supply Top and bottom part, battery compartment lid, assembly kit
B2802016
STYLE-CASE SProdukt byl přidán do Vašeho košíku.
black RAL 9005
123x48x24mm
B2802017
STYLE-CASE S
Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Supply Top and bottom part, battery compartment lid, assembly kit
B2802017
STYLE-CASE SProdukt byl přidán do Vašeho košíku.
traffic white RAL 9016
123x48x24mm
B2803016
STYLE-CASE M
Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Supply Top and bottom part, battery compartment lid, assembly kit
B2803016
STYLE-CASE MProdukt byl přidán do Vašeho košíku.
black RAL 9005
147x56x27mm
,
B2803017
STYLE-CASE M
Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Supply Top and bottom part, battery compartment lid, assembly kit
B2803017
STYLE-CASE MProdukt byl přidán do Vašeho košíku.
traffic white RAL 9016
147x56x27mm
,
B2804016
STYLE-CASE L
Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.
Supply Top and bottom part, battery compartment lid, assembly kit
B2804016
STYLE-CASE LProdukt byl přidán do Vašeho košíku.
black RAL 9005
166x64x31mm
,
B2804017
STYLE-CASE L
Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.
Supply Top and bottom part, battery compartment lid, assembly kit
B2804017
STYLE-CASE LProdukt byl přidán do Vašeho košíku.
traffic white RAL 9016
166x64x31mm
,
B2804027
STYLE-CASE L
Two-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing (accessory). Protection class IP 40 without sealing. Attachment pillars for PCBs and components in the top and bottom parts.
Supply Top and bottom part, assembly kit
B2804027
STYLE-CASE LProdukt byl přidán do Vašeho košíku.
traffic white RAL 9016
166x64x31mm
,
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)Produkt byl přidán do Vašeho košíku.
A9190020
Set of battery clips
For contacting 2 AAA batteries.
Supply 1 single contact "negative", 1 single contact "positive", 1 double contact "positive + negative"
A9190020
Set of battery clipsProdukt byl přidán do Vašeho košíku.
nickel-plated
A9199005
Strain relief
Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.
Supply 1 strain relief device, 2 screws
A9199005
Strain reliefProdukt byl přidán do Vašeho košíku.
volcano
B2902031
Adhesive foil S
For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.
Supply 1 piece
B2902031
Adhesive foil SProdukt byl přidán do Vašeho košíku.
B2902037

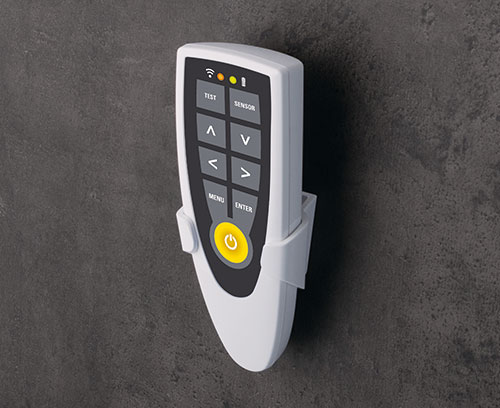

Holder S
Special holder for STYLE-CASE S for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2902031) is offered for surface that are not to be drilled.
Supply 1 holder
B2902037
Holder SProdukt byl přidán do Vašeho košíku.
traffic white RAL 9016
B2902039
Holder S
Special holder for STYLE-CASE S for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2902031) is offered for surface that are not to be drilled.
Supply 1 holder
B2902039
Holder SProdukt byl přidán do Vašeho košíku.
black RAL 9005
B2902111

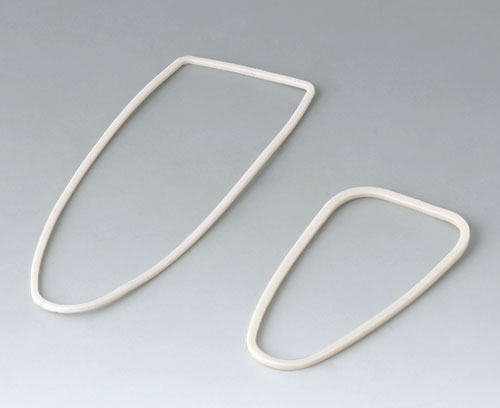

Sealing kit S
Application: for increasing the protection class, of STYLE-CASE S.
Supply 2 sealings kit (enclosure, battery compartment)
B2902111
Sealing kit SProdukt byl přidán do Vašeho košíku.
B2903031
Adhesive foil M
For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.
Supply 1 piece
B2903031
Adhesive foil MProdukt byl přidán do Vašeho košíku.
B2903037

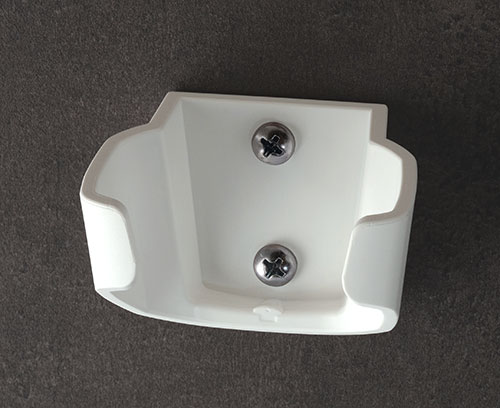

Holder M
Special holder for STYLE-CASE M for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2903031) is offered for surface that are not to be drilled.
Supply 1 holder
B2903037
Holder MProdukt byl přidán do Vašeho košíku.
traffic white RAL 9016
B2903039
Holder M
Special holder for STYLE-CASE M for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2903031) is offered for surface that are not to be drilled.
Supply 1 holder
B2903039
Holder MProdukt byl přidán do Vašeho košíku.
black RAL 9005

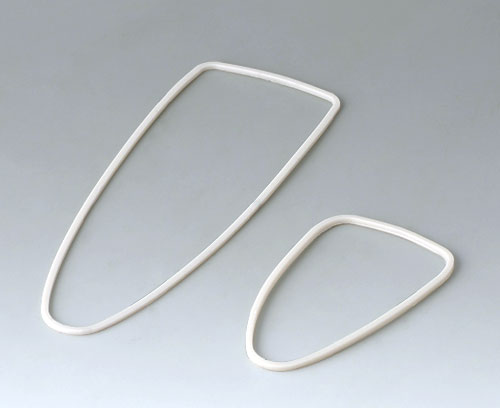

B2903111
Sealing kit M
Application: for increasing the protection class, of STYLE-CASE M.
Supply 2 sealings kit (enclosure, battery compartment)
B2903111
Sealing kit MProdukt byl přidán do Vašeho košíku.

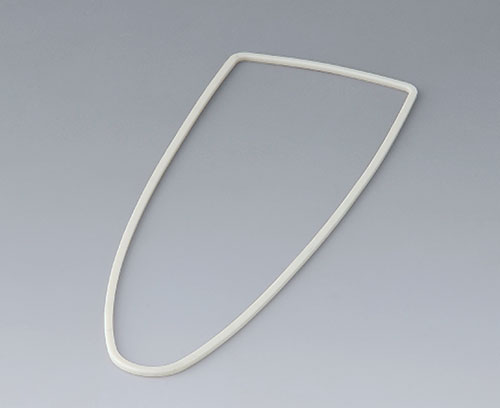

B2904011
Sealing L
Application: for increasing the protection class, of STYLE-CASE L.
Supply 1 sealing
B2904011
Sealing LProdukt byl přidán do Vašeho košíku.
B2904031
Adhesive foil L
For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.
Supply 1 piece
B2904031
Adhesive foil LProdukt byl přidán do Vašeho košíku.
B2904037
Holder L
Special holder for STYLE-CASE L for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2904031) is offered for surface that are not to be drilled.
Supply 1 holder
B2904037
Holder LProdukt byl přidán do Vašeho košíku.
traffic white RAL 9016
B2904039
Holder L
Special holder for STYLE-CASE L for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2904031) is offered for surface that are not to be drilled.
Supply 1 holder
B2904039
Holder LProdukt byl přidán do Vašeho košíku.
black RAL 9005

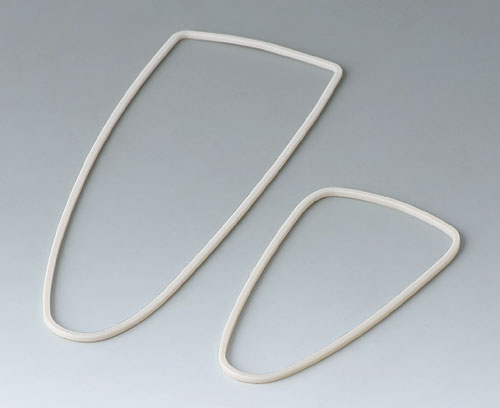

B2904111
Sealing kit L
Application: for increasing the protection class, of STYLE-CASE L.
Supply 2 sealings kit (enclosure, battery compartment)
B2904111
Sealing kit LProdukt byl přidán do Vašeho košíku.

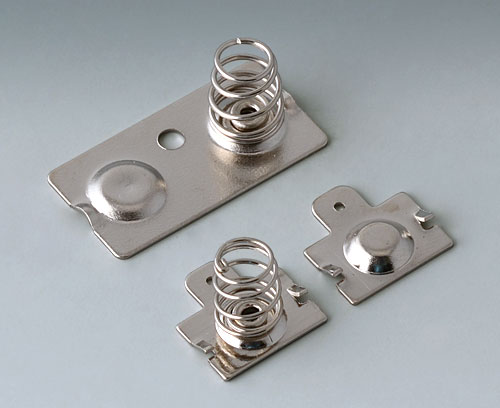

B2904210
Set of battery clips
For contacting 2 AA batteries.
Supply 1 single contact "negative", 1 single contact "positive", 1 double contact "positive + negative"
B2904210
Set of battery clipsProdukt byl přidán do Vašeho košíku.
nickel-plated
C2353849
Flexible cable grommet Ø 5,3
Flexible cable grommet to protect the cable connection, for universal use.
Please note: recommended for STYLE-CASE L without battery compartment. Subsequent machining of the bottom part of the enclosure required.
Supply 1 flexible cable grommet
C2353849
Flexible cable grommet Ø 5,3Produkt byl přidán do Vašeho košíku.

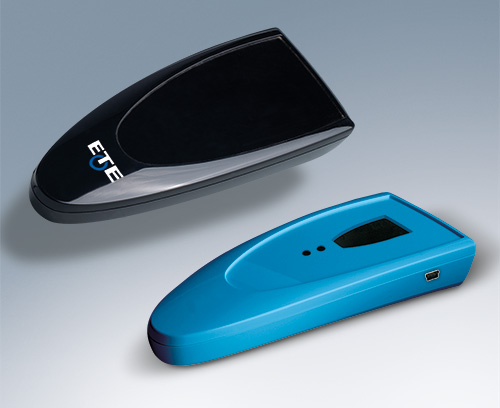

Možnosti přizpůsobení pro Style-Case
Co ještě potřebujete pro svůj vlastní velmi osobní produkt? Můžeme dodat zapouzdření a ladicí knoflíky se všemi nezbytnými úpravami pro montáž vašich elektronických součástek.
