DIN modulární skříňka
B2802017
STYLE-CASE S

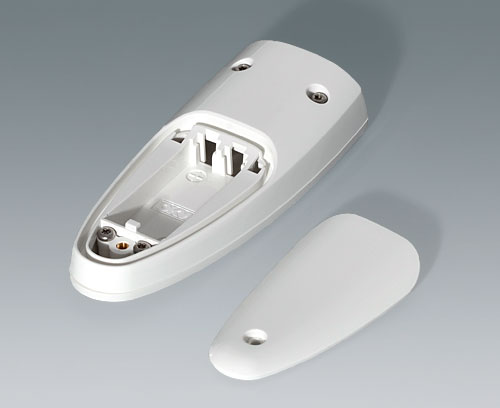

Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Top and bottom part, battery compartment lid, assembly kit
Generovat PDF pro B2802017
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Accessory "battery"
A9190020
Supply 1 single contact "negative", 1 single contact "positive", 1 double contact "positive + negative"
A9190020
Set of battery clipsnickel-plated
Accessory "protection"
B2902111
Supply 2 sealings kit (enclosure, battery compartment)
B2902111
Sealing kit SAccessory "wall/holder"
B2902031
Supply 1 piece
B2902031
Adhesive foil S
B2902037
Supply 1 holder
B2902037
Holder Straffic white RAL 9016
Accessory "screws"
A0304031
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 425 KB
- AutoCAD DWG-File 529 KB
- AutoCAD DXF-File 2 001 KB
- 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 697 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00022624.x_t 3 123 KB
- 00022624.step 8 240 KB
- 00022624.sat 9 945 KB
(OKW product)
Možnosti úprav: Zapouzdření můžeme upravit tak, aby vyhovovala Vašim specifickým požadavkům. Zapouzdření dodáme kompletně dokončená a připravená k použití. Už bude zbývat pouze instalace Vašich součástek nebo elektroniky. Prohlédněte si možnosti úprav pro B2802017 a nezapomeňte si vyžádat nabídku!
