B2903037

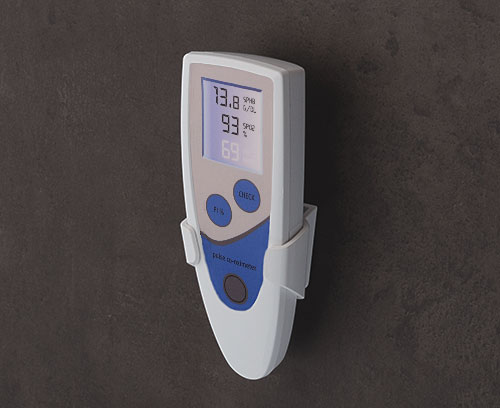

Holder M
Special holder for STYLE-CASE M for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2903031) is offered for surface that are not to be drilled.
Supply1 holder
Generovat PDF pro B2903037
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Přidat do košíku
System components to complete
B2803017
STYLE-CASE M
Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Supply Top and bottom part, battery compartment lid, assembly kit
B2803017
STYLE-CASE MProdukt byl přidán do Vašeho košíku.
traffic white RAL 9016
147x56x27mm
,
Accessory
B2903031
Adhesive foil M
For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.
Supply 1 piece
B2903031
Adhesive foil MProdukt byl přidán do Vašeho košíku.
Customising options for B2903037
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
15 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
