DIN modulární skříňka
B2902039

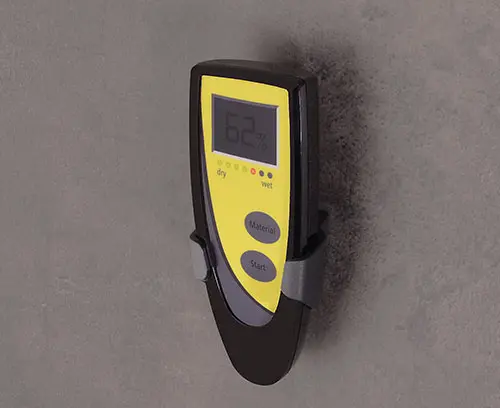

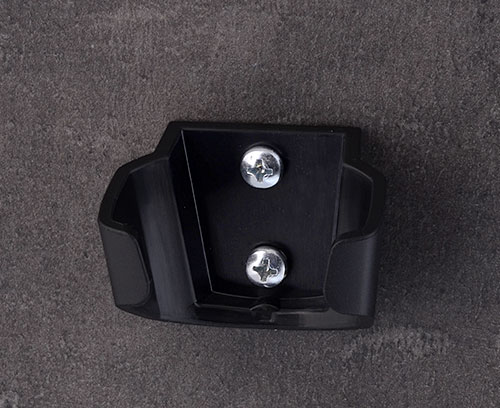

Holder S
Special holder for STYLE-CASE S for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2902031) is offered for surface that are not to be drilled.
Supply1 holder
Generovat PDF pro B2902039
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Přidat do košíku
System components to complete
B2802016
STYLE-CASE S
Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Supply Top and bottom part, battery compartment lid, assembly kit
B2802016
STYLE-CASE SProdukt byl přidán do Vašeho košíku.
black RAL 9005
123x48x24mm
Accessory
B2902031

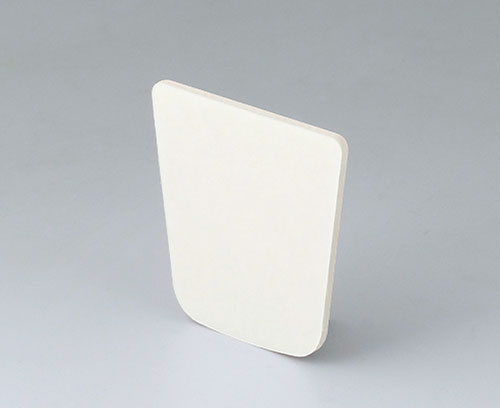

Adhesive foil S
For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.
Supply 1 piece
B2902031
Adhesive foil SProdukt byl přidán do Vašeho košíku.
Customising options for B2902039
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
12 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Možnosti úprav: Zapouzdření můžeme upravit tak, aby vyhovovala Vašim specifickým požadavkům. Zapouzdření dodáme kompletně dokončená a připravená k použití. Už bude zbývat pouze instalace Vašich součástek nebo elektroniky. Prohlédněte si možnosti úprav pro B2902039 a nezapomeňte si vyžádat nabídku!
