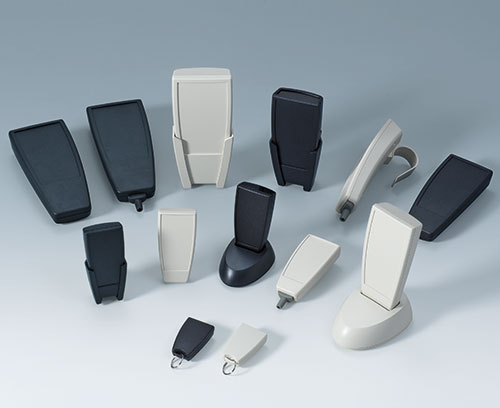

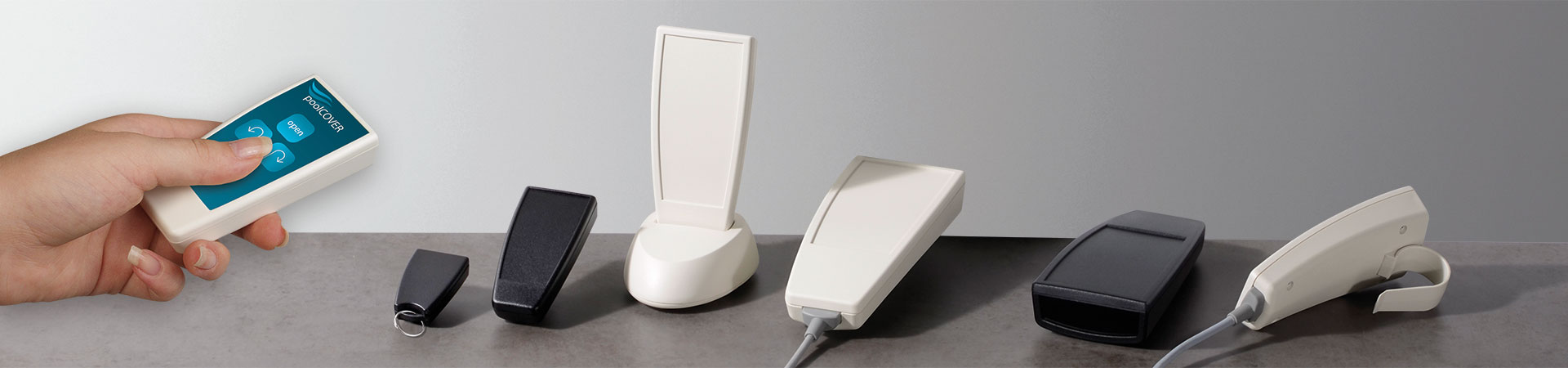

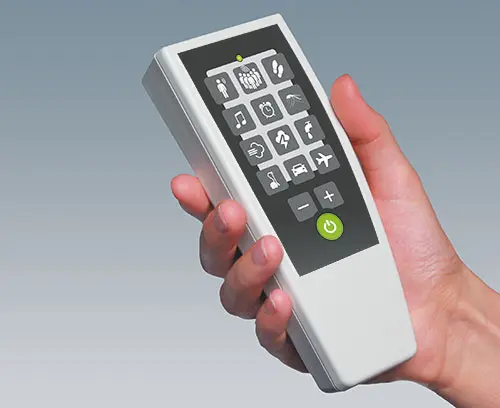

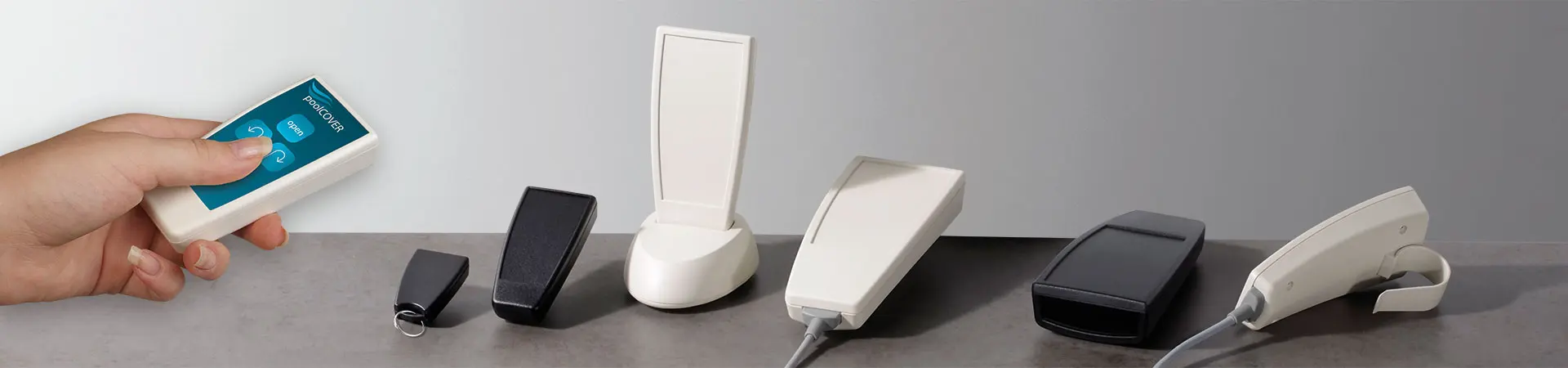

Smart-Case

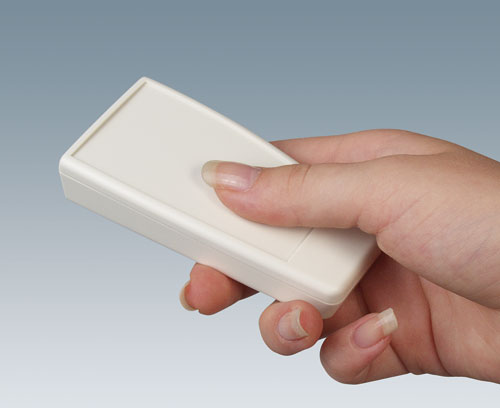

Ruční pouzdro se snadným úchopem
Myšlenka na větší váhu ergonomických požadavků byla. Výchozím bodem pro vývoj řady ručního pouzdra SMART-CASE.
- Zakřivený tvar, přesvědčivý s nepřekonatelnou ovladatelností

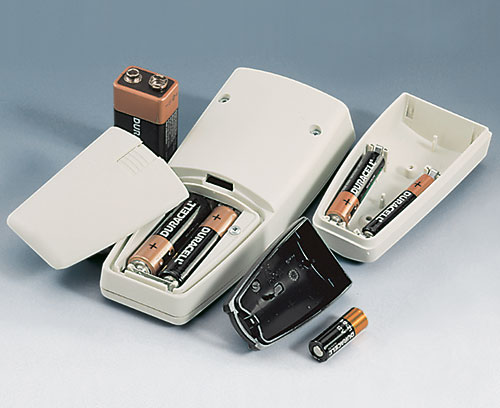

- Ideální pro drátové nebo dálkově ovládané dálkové ovladače: AAA, AA, 9 V plochá baterie nebo 12 V kruhové články
- Kabelové průchodky vhodné pro běžné kulaté kabely (velikosti M, L a XL)

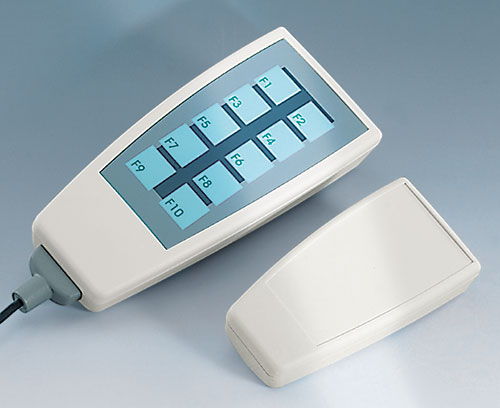

- Zapuštěný ovládací panel pro ochranu membránové klávesnice / dekorativní fólie

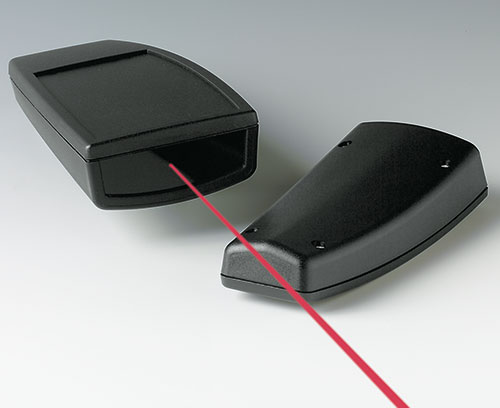

- ABS (UL 94 HB), popřípadě v infračerveně propustném materiálu PMMA plexisklo

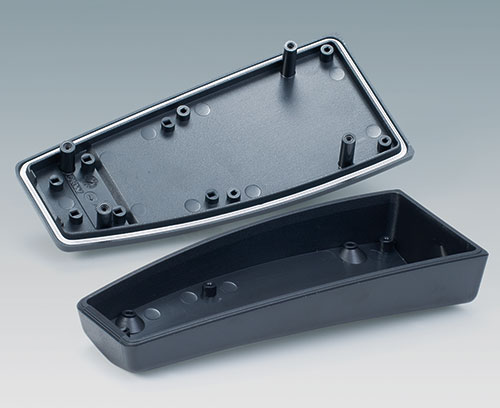

- Stupeň ochrany do IP 65: rozměry L a XL s volitelným těsněním a bez prostoru pro baterie

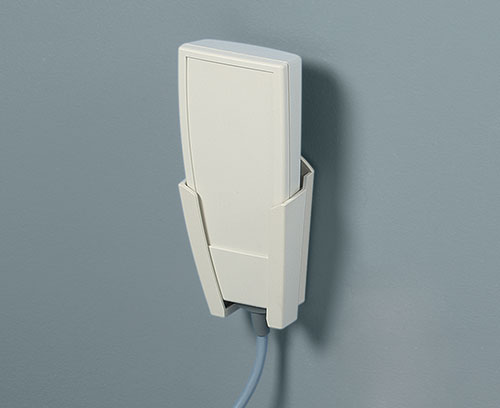

- Praktický klip a držák pro bezpečné uložení jako příslušenství
- Socket M, L & XL pro stolní aplikace

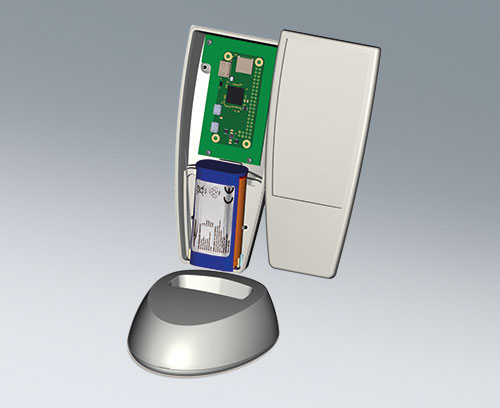

- Montážní dome nebo upevňovací základna pro desky plošných spojů a vestavěné komponenty
- 4 velikosti
Obory aplikací

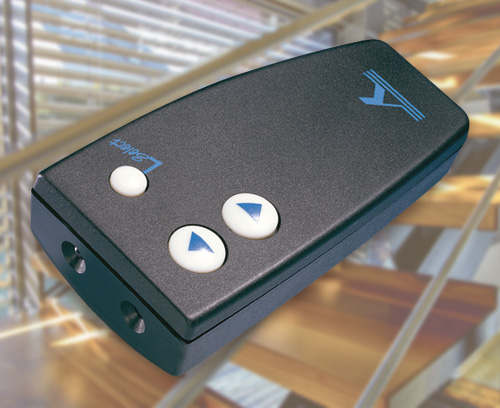

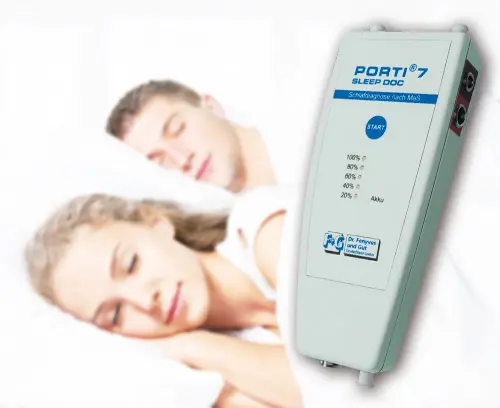

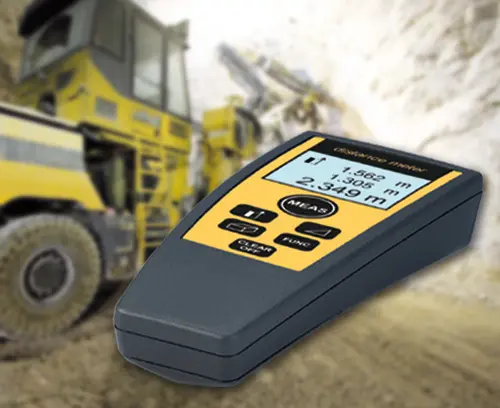

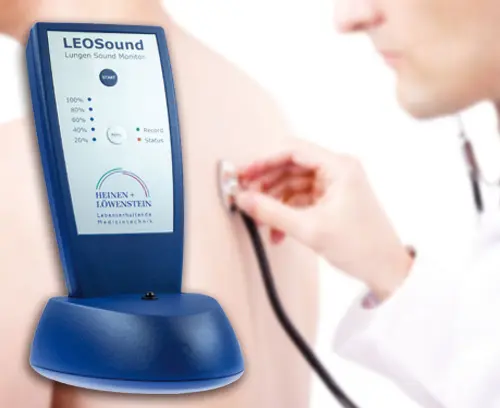

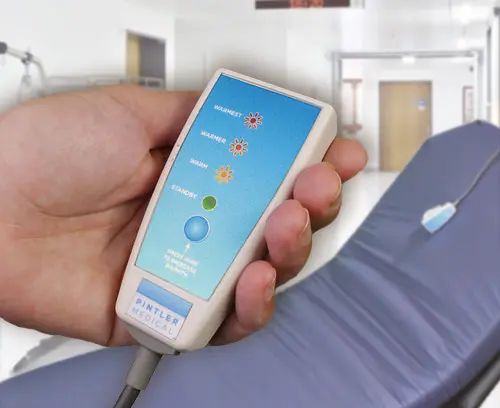

Dálkové ovládání různých typů, bezdrátové nebo kabelové. Zvláště pro použití v nemocničních zařízeních, ale také v domácnosti a průmyslu.
Vyberte požadovanou verzi / velikost a klikněte na „vybrat“.
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)Produkt byl přidán do Vašeho košíku.
A9100001
Ring eyelet
For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.
Supply 1 ring eyelet
A9100001
Ring eyeletProdukt byl přidán do Vašeho košíku.
volcano
A9100002
Ring eyelet
For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.
Supply 1 ring eyelet
A9100002
Ring eyeletProdukt byl přidán do Vašeho košíku.
volcano
A9160003
Plug-in contact, 1 x 9 V (PP3)
Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).
Application: for a 9 V flat battery (PP3).
Supply 1 plug-in contact
A9160003
Plug-in contact, 1 x 9 V (PP3)Produkt byl přidán do Vašeho košíku.
A9164001

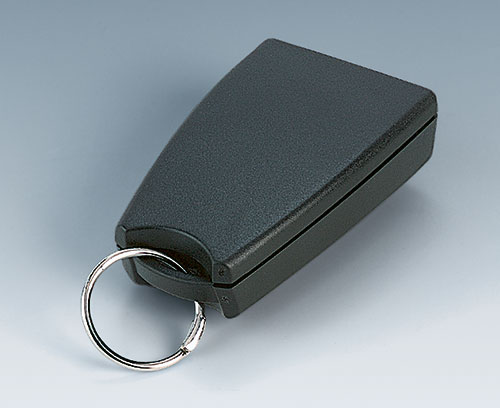

Key ring
Version: diameter = 20.5 mm.
Supply 1 key ring
A9164001
Key ringProdukt byl přidán do Vašeho košíku.
nickel-plated
20,5mm
A9166001
Set of battery clips, 2 x AAA
For contacting the batteries.
Supply 4 single contacts
A9166001
Set of battery clips, 2 x AAAProdukt byl přidán do Vašeho košíku.
tin-plated
A9166002
Battery contact, 2 x AAA
In combination with battery contacts A9166001 it's possible to have a bridge connection and therefore a serial connection.
Supply 1 battery contact
A9166002
Battery contact, 2 x AAAProdukt byl přidán do Vašeho košíku.
tin-plated
A9166003
Battery holder, 2 x AAA
The battery holder allows practically movement-free securing of the 2 x 1.5 V micro cells (AAA), thus ensuring that the internal power supply is securely located in position.
Supply 1 battery holder, 1 self-tapping screw
A9166003
Battery holder, 2 x AAAProdukt byl přidán do Vašeho košíku.
black RAL 9005
A9166004

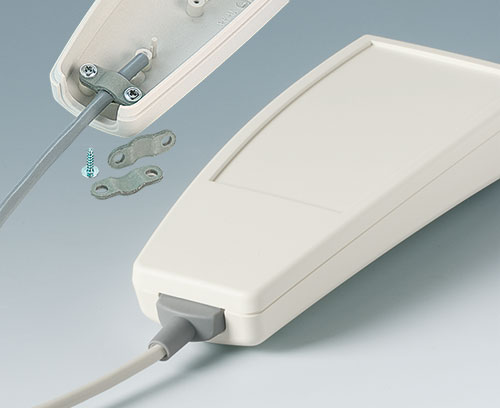

Set of pull-relief
For pull-relief of cable-connected applications. To be mounted onto the towers provided in the case or station.
Supply 2 preshaped pull-relief clamps, 2 self-tapping screws
A9166004
Set of pull-reliefProdukt byl přidán do Vašeho košíku.
volcano
A9166005
Adhesive foil M
For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.
Supply 1 piece
A9166005
Adhesive foil MProdukt byl přidán do Vašeho košíku.
A9166037

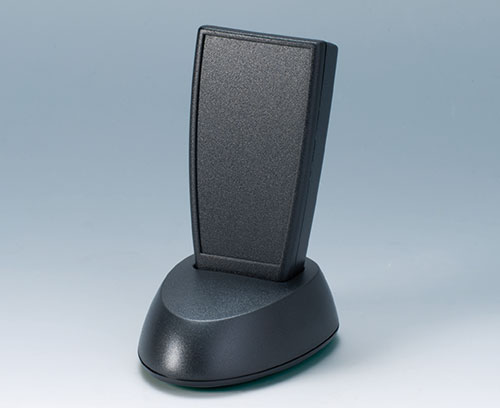

Station M
Attractive and practical station for holding your SMART CASE M with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.
Supply Bottom and top part, rubber feet, assembly kit
A9166037
Station MProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
A9166039
Station M
Attractive and practical station for holding your SMART CASE M with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.
Supply Bottom and top part, rubber feet, assembly kit
A9166039
Station MProdukt byl přidán do Vašeho košíku.
black RAL 9005
A9166307

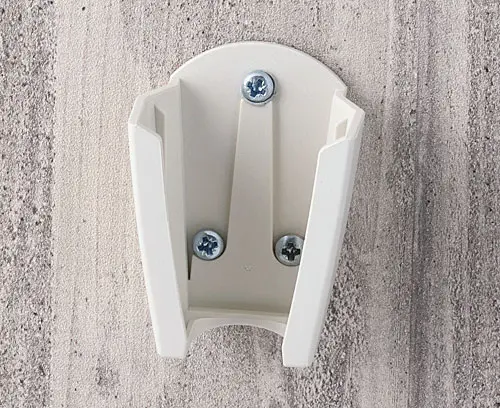

Holder M
Special holder for SMART-CASE M for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE M with clip.
Supply 1 holder
A9166307
Holder MProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
A9166309
Holder M
Special holder for SMART-CASE M for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE M with clip.
Supply 1 holder
A9166309
Holder MProdukt byl přidán do Vašeho košíku.
black RAL 9005

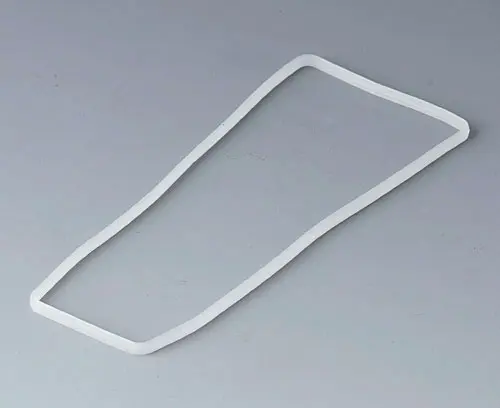

A9167002
Sealing L
Application: for a higher protection class. For versions II - V.
Supply 1 Sealing kit
A9167002
Sealing LProdukt byl přidán do Vašeho košíku.
A9167005

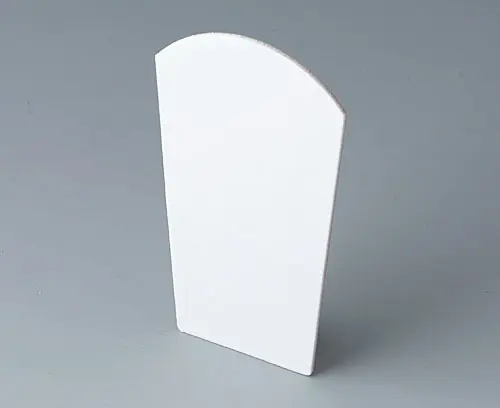

Adhesive foil L
For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.
Supply 1 piece
A9167005
Adhesive foil LProdukt byl přidán do Vašeho košíku.
A9167017
Belt/pocket clip
Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 Clip, assembly kit
A9167017
Belt/pocket clipProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
A9167019
Belt/pocket clip
Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 Clip, assembly kit
A9167019
Belt/pocket clipProdukt byl přidán do Vašeho košíku.
black RAL 9005
A9167027

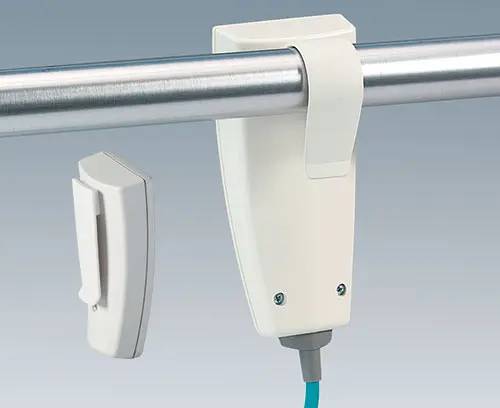

Holding clamp
Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 holding clamp, assembly kit
A9167027
Holding clampProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
A9167029
Holding clamp
Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 holding clamp, assembly kit
A9167029
Holding clampProdukt byl přidán do Vašeho košíku.
black RAL 9005
A9167037

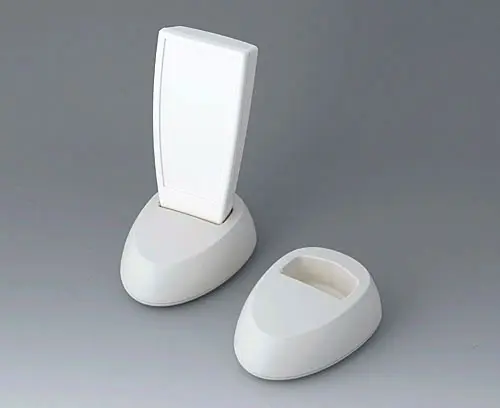

Station L
Attractive and practical station for holding your SMART CASE L with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided, for SMART-CASE L without battery compartment only). Pillars for PCB mounting, and strain relief to the rear.
Supply Bottom and top part, rubber feet, assembly kit
A9167037
Station LProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
A9167039

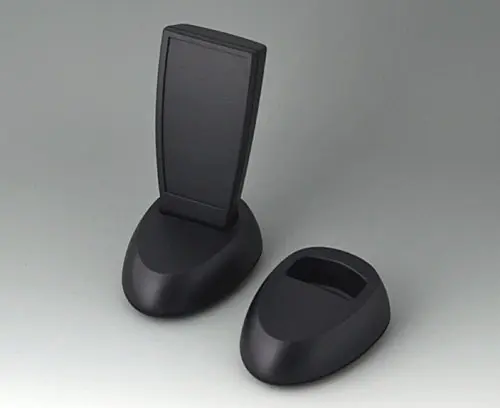

Station L
Attractive and practical station for holding your SMART CASE L with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided, for SMART-CASE L without battery compartment only). Pillars for PCB mounting, and strain relief to the rear.
Supply Bottom and top part, rubber feet, assembly kit
A9167039
Station LProdukt byl přidán do Vašeho košíku.
black RAL 9005

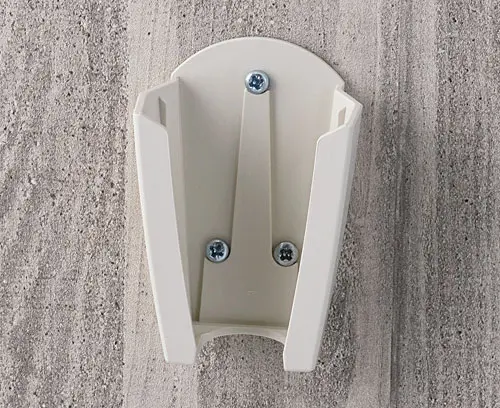

A9167307
Holder L
Special holder for SMART-CASE L for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE L with clip.
Supply 1 holder
A9167307
Holder LProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
A9167309

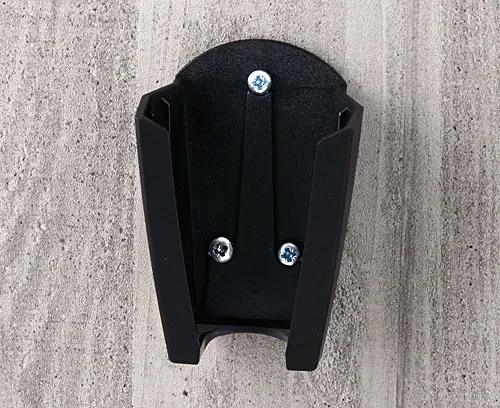

Holder L
Special holder for SMART-CASE L for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE L with clip.
Supply 1 holder
A9167309
Holder LProdukt byl přidán do Vašeho košíku.
black RAL 9005
A9168002
Sealing XL
Application: For a higher protection class. For the versions II - V.
Supply 1 sealing
A9168002
Sealing XLProdukt byl přidán do Vašeho košíku.
A9168005
Adhesive foil XL
For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.
Supply 1 piece
A9168005
Adhesive foil XLProdukt byl přidán do Vašeho košíku.
A9168037
Station XL
Attractive and practical station for holding your SMART CASE XL with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.
Supply Bottom and top part, rubber feet, assembly kit
A9168037
Station XLProdukt byl přidán do Vašeho košíku.
off-white RAL 9002

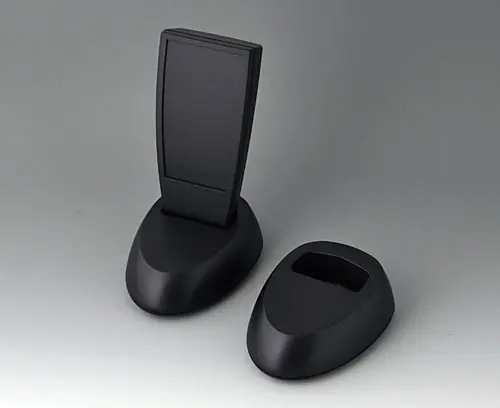

A9168039
Station XL
Attractive and practical station for holding your SMART CASE XL with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.
Supply Bottom and top part, rubber feet, assembly kit
A9168039
Station XLProdukt byl přidán do Vašeho košíku.
black RAL 9005
A9168307
Holder XL
Special holder for SMART-CASE XL for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm.
Supply 1 holder
A9168307
Holder XLProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
A9168309
Holder XL
Special holder for SMART-CASE XL for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm.
Supply 1 holder
A9168309
Holder XLProdukt byl přidán do Vašeho košíku.
black RAL 9005
A9190002
Set of battery clips, 2xN/2xAA/2xAAA
For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).
Note application ART-CASE: only for base suitable (2 x AA).
Supply 1 double contact, 2 single contacts
A9190002
Set of battery clips, 2xN/2xAA/2xAAAProdukt byl přidán do Vašeho košíku.
tin-plated
A9190003
Set of battery clips, 2xN/2xAA/2xAAA
For contacting the batteries.
Supply 1 double contact, 2 single contacts
A9190003
Set of battery clips, 2xN/2xAA/2xAAAProdukt byl přidán do Vašeho košíku.
nickel-plated
A9193030

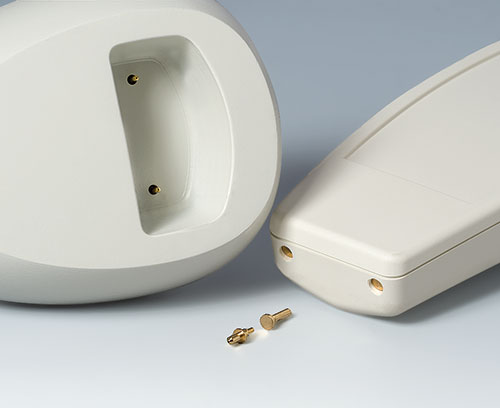

Contact pin
Contact pin, round with flat flange for transmitting charging current. Stepped bore necessary, then self-locking. Further contact established by means of a soldered stranded wire in the internal drilled hole. Load-carrying capacity up to 15 A. Extremely low contact resistance.
Supply 1 contact pin
A9193030
Contact pinProdukt byl přidán do Vašeho košíku.
A9193032
Spring contact
Spring contact, round with ballpoint tip and collar for transmitting charging current. Drilled hole necessary, then self-locking. Further contact established by means of a soldered stranded wire on the fixed outer surface or PCB mounting. Load-carrying capacity up to 3 A. 1.5 mm stroke, 0,3 N. Extremely low contact resistance.
Supply 1 spring contact
A9193032
Spring contactProdukt byl přidán do Vašeho košíku.
B9100063
Carrying strap, textile lanyard
Textile lanyard with loop attachment.
ATTENTION, PART TO BE DISCONTINUED:
The article is only available in limited quantities. Please ask for it!
Supply 1 lanyard
B9100063
Carrying strap, textile lanyardProdukt byl přidán do Vašeho košíku.
860mm
Možnosti přizpůsobení pro Smart-Case
Co ještě potřebujete pro svůj vlastní velmi osobní produkt? Můžeme dodat zapouzdření a ladicí knoflíky se všemi nezbytnými úpravami pro montáž vašich elektronických součástek.
