DIN modulární skříňka
A9167309
Holder L

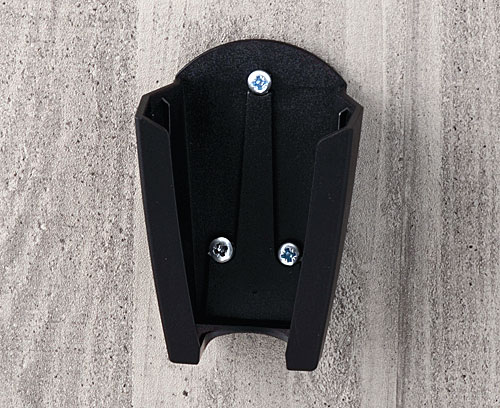

Special holder for SMART-CASE L for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE L with clip.
Supply1 holder
Generovat PDF pro A9167309
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
System components to complete
A9067109
Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)
Supply Case-top and base, battery compartment lid, assembly kit
A9067109

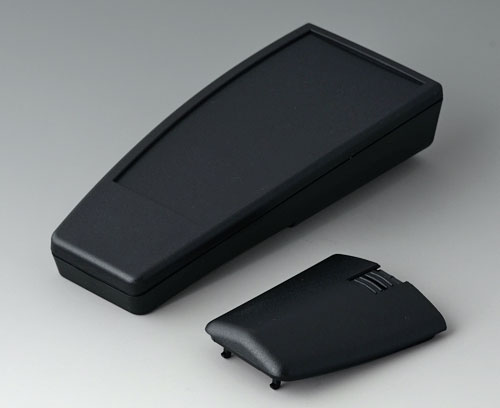

SMART-CASE L, Vers. Iblack RAL 9005
140x62,7x30,5mm
A9067119

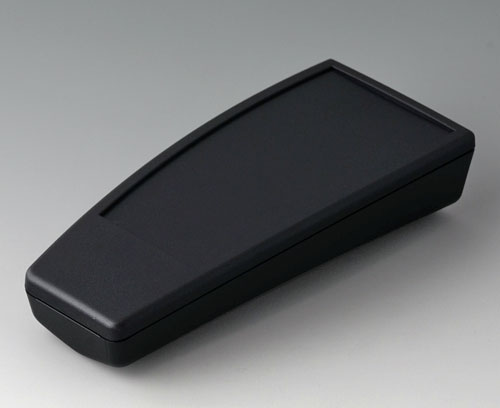

Version Without battery compartment
Supply Case-top and base, assembly kit
A9067119
SMART-CASE L, Vers. IIblack RAL 9005
140x62,7x30,5mm
,
A9067129
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9067129
SMART-CASE L, Vers. IIIblack RAL 9005
140x62,7x30,5mm
,
A9067139

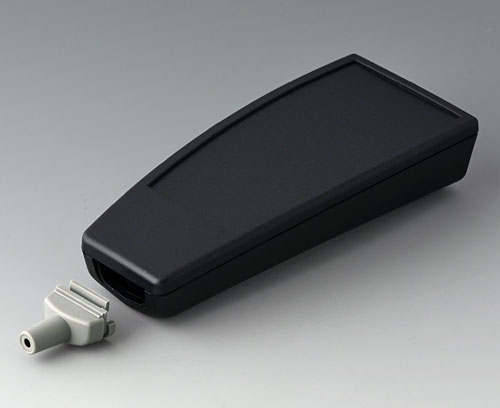

Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9067139
SMART-CASE L, Vers. IVblack RAL 9005
140x62,7x30,5mm
,
A9067149

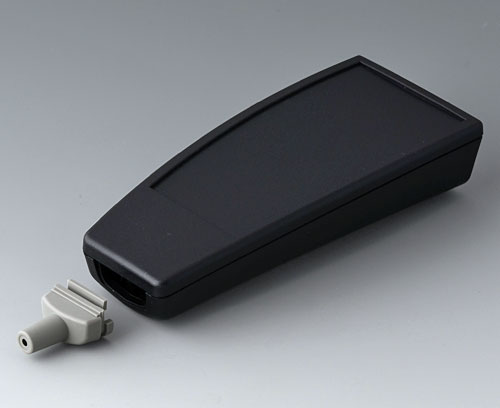

Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9067149
SMART-CASE L, Vers. Vblack RAL 9005
140x62,7x30,5mm
,
A9067209
Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)
Supply Case-top and base, battery compartment lid, assembly kit
A9067209
SMART-CASE L, Vers. Iblack RAL 9005
140x62,7x30,5mm
A9067219
Version Without battery compartment
Supply Case-top and base, assembly kit
A9067219
SMART-CASE L, Vers. IIblack RAL 9005
140x62,7x30,5mm
,
A9067329
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9067329
SMART-CASE L, Vers. IIIblack RAL 9005
140x62,7x30,5mm
,
A9067339

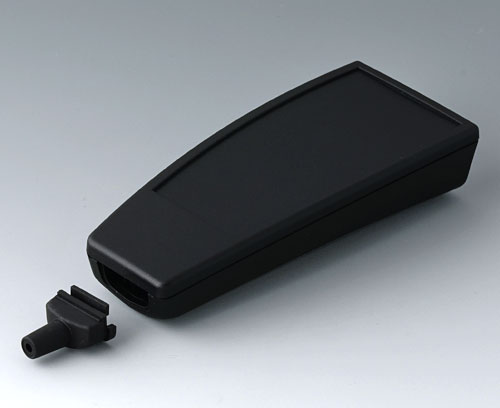

Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9067339
SMART-CASE L, Vers. IVblack RAL 9005
140x62,7x30,5mm
,
A9067349

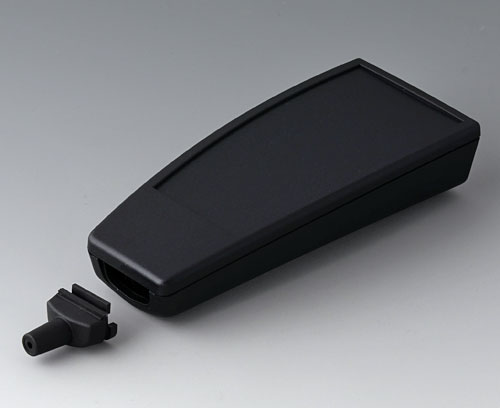

Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9067349
SMART-CASE L, Vers. Vblack RAL 9005
140x62,7x30,5mm
,
Accessory
A9167005
Supply 1 piece
A9167005

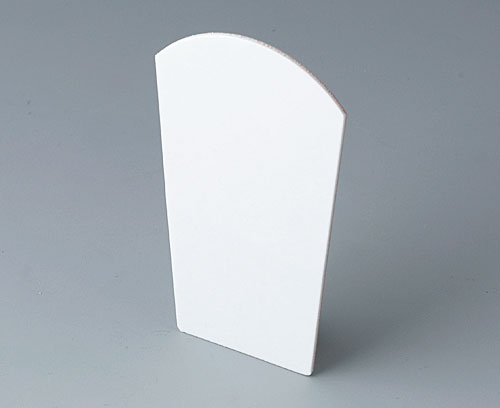

Adhesive foil LDrawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 182 KB
- AutoCAD DWG-File 373 KB
- AutoCAD DXF-File 839 KB
- 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 1 778 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00012251.x_t 2 097 KB
- 00012251.STEP 5 838 KB
- 00012251.SAT 6 274 KB
(OKW product)
Možnosti úprav: Zapouzdření můžeme upravit tak, aby vyhovovala Vašim specifickým požadavkům. Zapouzdření dodáme kompletně dokončená a připravená k použití. Už bude zbývat pouze instalace Vašich součástek nebo elektroniky. Prohlédněte si možnosti úprav pro A9167309 a nezapomeňte si vyžádat nabídku!
