DIN modulární skříňka
A9167017

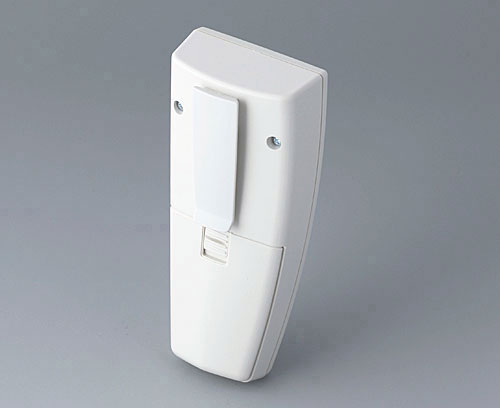

Belt/pocket clip
Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply1 Clip, assembly kit
Generovat PDF pro A9167017
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
A9066107
Version Case-top without recessed operating area
Supply Base and top part, 1 screw
A9066107
SMART-CASE M, Vers. Ioff-white RAL 9002
96x47x24mm
A9066117
Version Case-top with recessed operating area
Supply Base and top part, 1 screw
A9066117
SMART-CASE M, Vers. IIoff-white RAL 9002
96x47x24mm
A9066127
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9066127
SMART-CASE M, Vers. IIIoff-white RAL 9002
96x47x24mm
A9066137
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9066137
SMART-CASE M, Vers. IVoff-white RAL 9002
96x47x24mm
A9066147
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9066147
SMART-CASE M, Vers. Voff-white RAL 9002
96x47x24mm
A9066317
Version Case-top with recessed operating area
Supply Base and top part, 1 screw
A9066317
SMART-CASE M, Vers. VIoff-white RAL 9002
96x47x24mm
A9067107
Version With battery compartment for two 1.5 V mignon cells (AA)or a 9 V flat battery (PP3)
Supply Case-top and base, battery compartment lid, assembly kit
A9067107
SMART-CASE L, Vers. Ioff-white RAL 9002
140x62,7x30,5mm
A9067117
Version Without battery compartment
Supply Case-top and base, assembly kit
A9067117
SMART-CASE L, Vers. IIoff-white RAL 9002
140x62,7x30,5mm
,
A9067127
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9067127
SMART-CASE L, Vers. IIIoff-white RAL 9002
140x62,7x30,5mm
,
A9067137
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9067137
SMART-CASE L, Vers. IVoff-white RAL 9002
140x62,7x30,5mm
,
A9067147
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9067147
SMART-CASE L, Vers. Voff-white RAL 9002
140x62,7x30,5mm
,
A9068107
Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)
Supply Case-top and base, battery compartment lid, assembly kit
A9068107
SMART-CASE XL, Vers. Ioff-white RAL 9002
168x74,4x35,4mm
A9068117
Version Without battery compartment
Supply Case-top and base, assembly kit
A9068117
SMART-CASE XL, Vers. IIoff-white RAL 9002
168x74,4x35,4mm
,
A9068127
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9068127
SMART-CASE XL, Vers. IIIoff-white RAL 9002
168x74,4x35,4mm
,
A9068137
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9068137
SMART-CASE XL, Vers. IVoff-white RAL 9002
168x74,4x35,4mm
,
A9068147
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9068147
SMART-CASE XL, Vers. Voff-white RAL 9002
168x74,4x35,4mm
,
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 174 KB
- AutoCAD DWG-File 328 KB
- AutoCAD DXF-File 684 KB
(OKW product)
Možnosti úprav: Zapouzdření můžeme upravit tak, aby vyhovovala Vašim specifickým požadavkům. Zapouzdření dodáme kompletně dokončená a připravená k použití. Už bude zbývat pouze instalace Vašich součástek nebo elektroniky. Prohlédněte si možnosti úprav pro A9167017 a nezapomeňte si vyžádat nabídku!
