Holding clamp

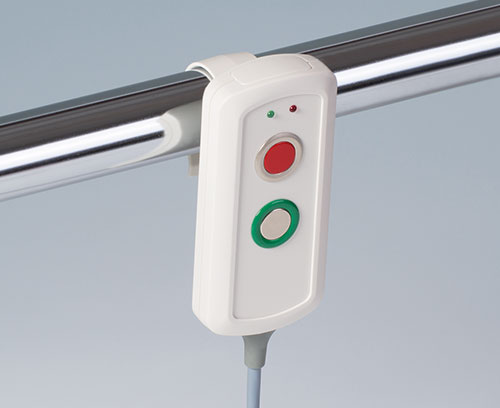

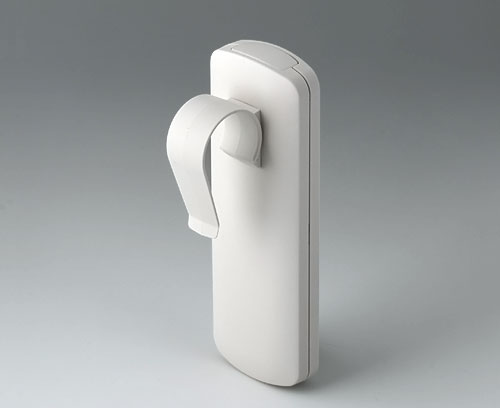

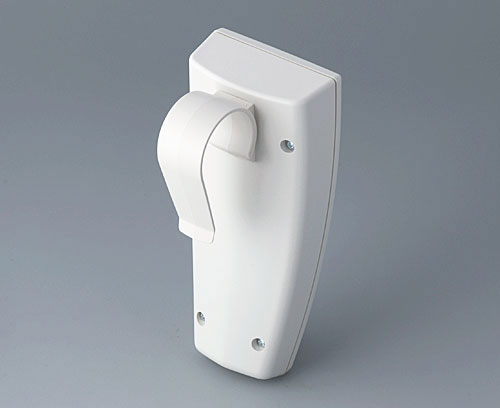

Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply1 holding clamp, assembly kit
Generovat PDF pro A9167027
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
A9066107
Version Case-top without recessed operating area
Supply Base and top part, 1 screw
A9066107
SMART-CASE M, Vers. Ioff-white RAL 9002
96x47x24mm
A9066117
Version Case-top with recessed operating area
Supply Base and top part, 1 screw
A9066117
SMART-CASE M, Vers. IIoff-white RAL 9002
96x47x24mm
A9066127
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9066127
SMART-CASE M, Vers. IIIoff-white RAL 9002
96x47x24mm
A9066137
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9066137
SMART-CASE M, Vers. IVoff-white RAL 9002
96x47x24mm
A9066147
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9066147
SMART-CASE M, Vers. Voff-white RAL 9002
96x47x24mm
A9066317
Version Case-top with recessed operating area
Supply Base and top part, 1 screw
A9066317
SMART-CASE M, Vers. VIoff-white RAL 9002
96x47x24mm
A9067107
Version With battery compartment for two 1.5 V mignon cells (AA)or a 9 V flat battery (PP3)
Supply Case-top and base, battery compartment lid, assembly kit
A9067107
SMART-CASE L, Vers. Ioff-white RAL 9002
140x62,7x30,5mm
A9067117
Version Without battery compartment
Supply Case-top and base, assembly kit
A9067117
SMART-CASE L, Vers. IIoff-white RAL 9002
140x62,7x30,5mm
,
A9067127
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9067127
SMART-CASE L, Vers. IIIoff-white RAL 9002
140x62,7x30,5mm
,
A9067137
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9067137
SMART-CASE L, Vers. IVoff-white RAL 9002
140x62,7x30,5mm
,
A9067147
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9067147
SMART-CASE L, Vers. Voff-white RAL 9002
140x62,7x30,5mm
,
A9068107
Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)
Supply Case-top and base, battery compartment lid, assembly kit
A9068107
SMART-CASE XL, Vers. Ioff-white RAL 9002
168x74,4x35,4mm
A9068117
Version Without battery compartment
Supply Case-top and base, assembly kit
A9068117
SMART-CASE XL, Vers. IIoff-white RAL 9002
168x74,4x35,4mm
,
A9068127
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9068127
SMART-CASE XL, Vers. IIIoff-white RAL 9002
168x74,4x35,4mm
,
A9068137
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9068137
SMART-CASE XL, Vers. IVoff-white RAL 9002
168x74,4x35,4mm
,
A9068147
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9068147
SMART-CASE XL, Vers. Voff-white RAL 9002
168x74,4x35,4mm
,
B2823107
Supply 1 shell convex and 1 flattened shell with recessed surface
B2823107
CONNECT Soff-white RAL 9002
90x42x22mm
B2824107
Supply 1 shell convex and 1 flattened shell with recessed surface
B2824107
CONNECT Soff-white RAL 9002
120x42x22mm
B2833107
Supply 1 shell convex and 1 flattened shell with recessed surface
B2833107
CONNECT Moff-white RAL 9002
116x54x22mm
B2834107
Supply 1 shell convex and 1 flattened shell with recessed surface
B2834107
CONNECT Moff-white RAL 9002
156x54x22mm
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 248 KB
- AutoCAD DWG-File 471 KB
- AutoCAD DXF-File 1 197 KB
