Slim-Case

Zapouzdření se štíhlým designem

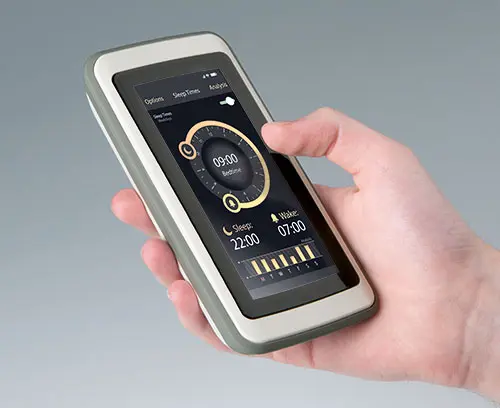

SLIM-CASE demonstruje co je možné s designem moderního zapouzdření, z hlediska vzhledu i funkčnosti. Téměř bezrámový design umožňuje instalaci nízkoprofilových elektronických komponentů a sestav, stejně jako velkých displayů a dotykových obrazovek až po 4ʺ (10 cm) do jednoho kompaktního zařízení.
I přes malé rozměry je uvnitř SLIM-CASE spousta místa pro standardní komponenty jako PCB, konektory, rozhraní, senzory atd. Moderní technologie pro bezdrátový přenos dat/komunikaci se do těchto inovativních zapouzdření dá vložit také.

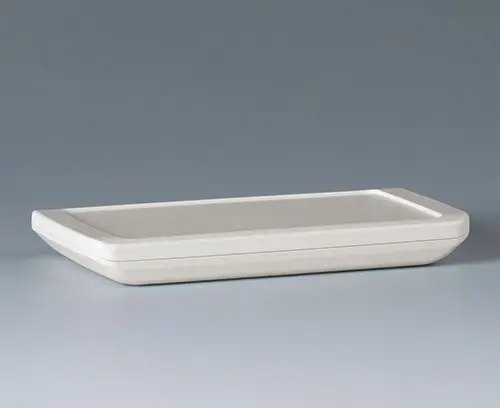

  • Zaoblené hrany a plochý kompaktní design dávají tomuto zapouzdření velice elegentní vzhled. Jsou také vysoce pohodlné na držení a dovolují funkce, které benefitují z tohoto designu.
  • Horní část je dostupná ve třech různých designech operačního panelu, aby seděly vašim konceptům, jak by display měl vypadat:
    Plochý operační panel
    Pro jednoduché rozvrhnutí tlačítek, displayů, LED atd. Plus je dostupný tisk log a legend.
    Zapuštěný (1 mm) operační panel
    Ideální pro aplikace s označením produktu.
    Zapuštěný (1.6 mm) operační panel
    Pro průhlednou přední stranu a membránovou klávesnici.
  • Průhledná přední stěna (doplněk) chrání display. Je zaoblená na dlouhých hranách, aby byl zachován ergonomický tvar pouzdra. Montováno s oboustrannou lepicí fólií (doplněk). Na vyžádání je zadní strana individuálně potisknuta dle Vašeho designu, aby splynula s vaším designem, stejně jako maskovala lepicí fólii.
  • Vhodné pro indukční nabíjení se správnou cívkou, použití NFC technologie s Qi nabíjčkami. Pokud je vyžadováno, je dostupná vnitřní baterie na PCB.
  • S a bez TPE kroužkem.

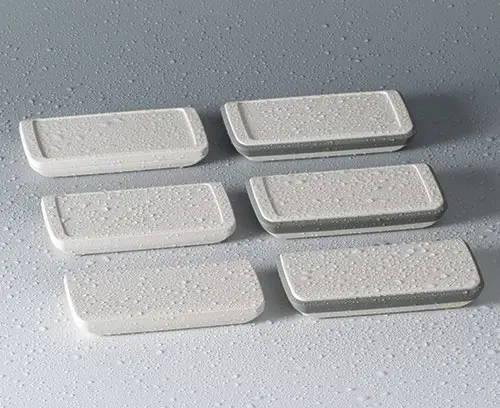

  • třída ochrany IP 54: SLIM-CASE verze IV-VI s TPE kroužkem;
    ochranná třída až po IP65: SLIM-CASE verze I-III s možností těsnění

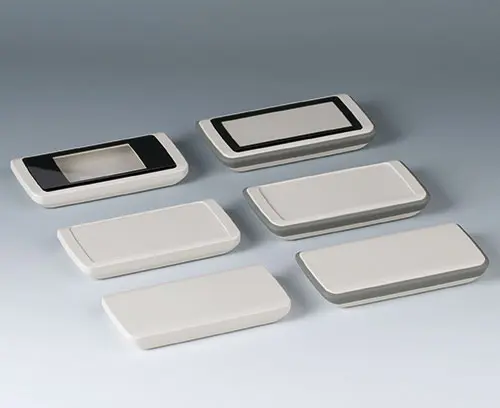

  • TPE kroužek zvyšuje výšku zapouzdření, složí jako těsnění pro IP54 a poskytuje ochranu proti nárazu. TPE ve speciálních barvách je dostupné na vyžádání.
  • Zapouzdření je vyrobeno z ASA+PC-FR (UL 94 V-0), krémově bílá (RAL 9002)
  • Spojení šroubky z nereznoucí oceli a Torx (T8)
  • Individuální úprava, e.g. výřezy pro operační a displayové prvky, rozhraní, nápisy atd. dostupné na vyžádání
  • Video
  • Příklady aplikací

Obory aplikací

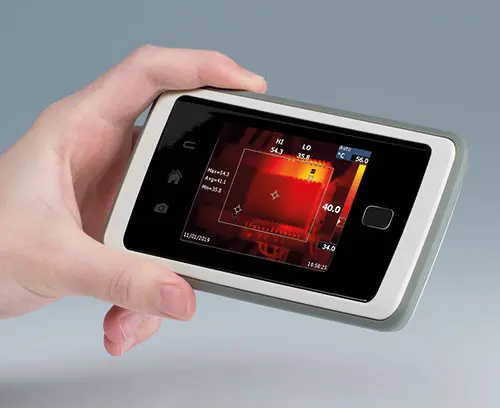

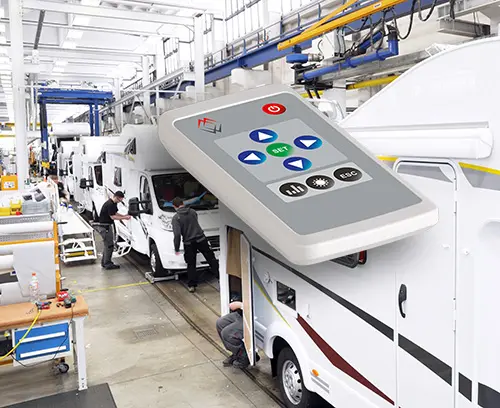

Vhodné pro mobilní elektronické aplikace, uvnitř i venku.

  • Měřící a regulační technologie
  • Bezdrátová komunikace
  • IoT/IIoT
  • Lékařská a laboratorní technologie
  • Zdravotní péče
  • Kanceláře
  • Bezpečnostní inženýrství
  • Environmentální technologie
  • Procházet celý seznam
  • Doplňky
  • Zobrazit možnosti přizpůsobení
AltText

B5403107

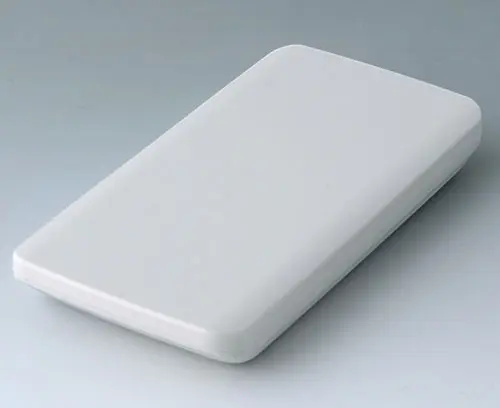

SLIM-CASE M, Vers. I 2-piece handheld enclosure, flat design, with a large operating panel of up to 4" (10 cm). The contours of the enclosure are rounded along the sides - comfortable to hold and easy to operate. Flat operating panel for individual design and arrangement of operating and display elements of all kinds. Fastening pillars for mounting PCBs in top and bottom parts. Seal for protection class IP 65 available as accessory.

Version Flat operating panel

Supply Top and bottom part, assembly kit

Zavřít

B5403107

SLIM-CASE M, Vers. I
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
off-white RAL 9002
148x74x19mm
IP 65 opt., IP 40
AltText

B5403117

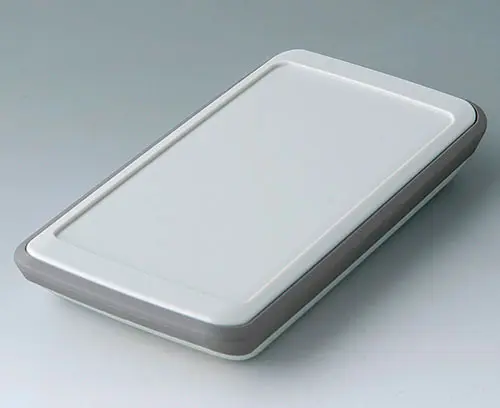

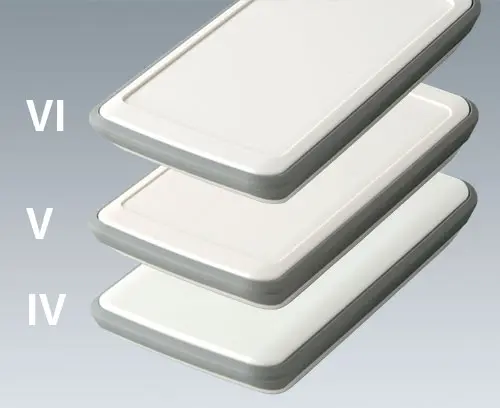

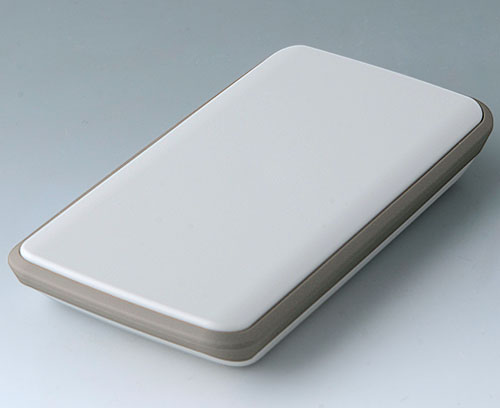

SLIM-CASE M, Vers. IV 3-piece handheld enclosure with TPE intermediate ring, compact design, with a large operating panel of up to 4" (10 cm). Comfortable grip thanks to enclosure contours that are rounded along the sides and intermediate ring made of TPE, which also serves as impact protection and as a sealing ring for protection class IP 54. Flat operating panel for individual design and arrangement of operating and display elements of all kinds. Fastening pillars for mounting PCBs in top and bottom parts.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPE intermediate ring are not possible.

Version With TPE intermediate ring and flat operating panel

Supply Top and bottom part, TPE intermediate ring, assembly kit

Zavřít

B5403117

SLIM-CASE M, Vers. IV
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
off-white RAL 9002
148x74x22mm
IP 54
AltText

B5403207

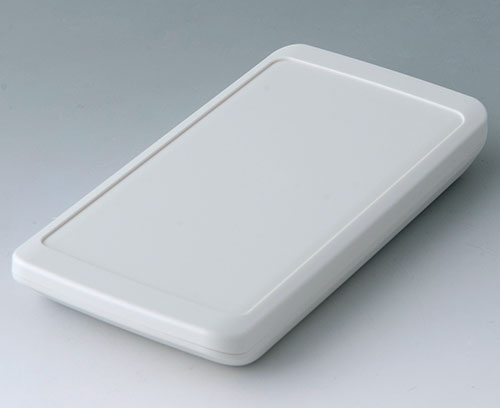

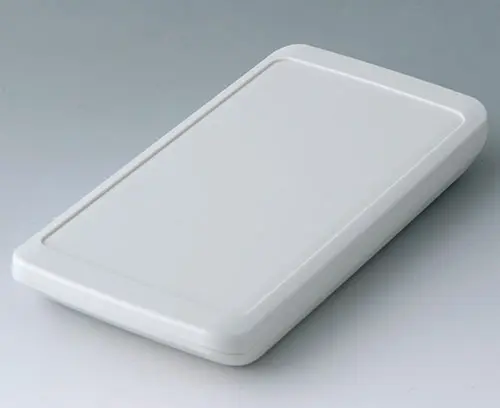

SLIM-CASE M, Vers. II 2-piece handheld enclosure, flat design, with a large operating panel of up to 4" (10 cm). The contours of the enclosure are rounded along the sides - comfortable to hold and easy to operate. Recessed operating panel for applications with decorative product labels. Fastening pillars for mounting PCBs in top and bottom parts. Seal for protection class IP 65 available as accessory.

Version Operating panel recessed 1 mm

Supply Top and bottom part, assembly kit

Zavřít

B5403207

SLIM-CASE M, Vers. II
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
off-white RAL 9002
148x74x19mm
IP 65 opt., IP 40
AltText

B5403217

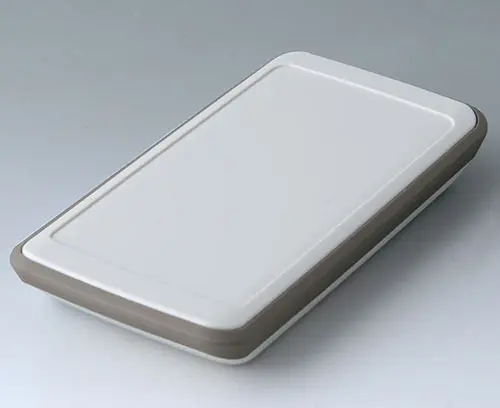

SLIM-CASE M, Vers. V 3-piece handheld enclosure with TPE intermediate ring, compact design, with a large operating panel of up to 4" (10 cm). Comfortable grip thanks to enclosure contours that are rounded along the sides and intermediate ring made of TPE, which also serves as impact protection and as a sealing ring for protection class IP 54. Recessed operating panel for applications with decorative product label. Fastening pillars for mounting PCBs in top and bottom parts.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPE intermediate ring are not possible.

Version With TPE intermediate ring and operating panel recessed 1 mm

Supply Top and bottom part, TPE intermediate ring, assembly kit

Zavřít

B5403217

SLIM-CASE M, Vers. V
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
off-white RAL 9002
148x74x22mm
IP 54
AltText

B5403307

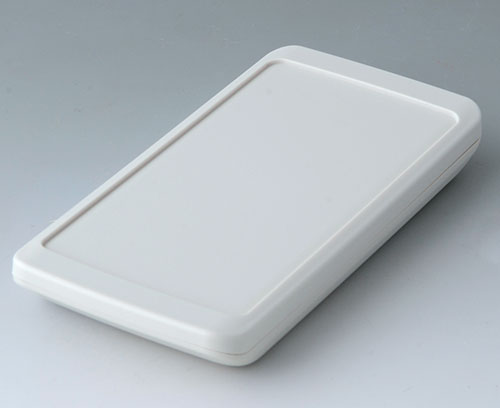

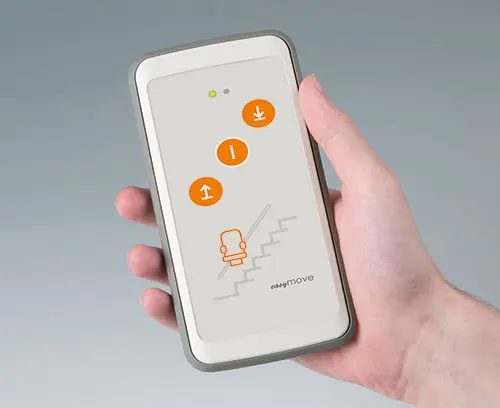

SLIM-CASE M, Vers. III 2-piece handheld enclosure, flat design, with a large operating panel of up to 4" (10 cm). The contours of the enclosure are rounded along the sides - comfortable to hold and easy to operate. Recessed operating panel for using a contoured transparent front screen (available as an accessory with adhesive film) or for protecting individual membrane keyboards. Fastening pillars for mounting PCBs in top and bottom parts. Seal for protection class IP 65 available as accessory.

Version Operating panel recessed 1.6 mm

Supply Top and bottom part, assembly kit

Zavřít

B5403307

SLIM-CASE M, Vers. III
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
off-white RAL 9002
148x74x19mm
IP 65 opt., IP 40
AltText

B5403317

SLIM-CASE M, Vers. VI 3-piece handheld enclosure with TPE intermediate ring, compact design, with a large operating panel of up to 4" (10 cm). Comfortable grip thanks to enclosure contours that are rounded along the sides and intermediate ring made of TPE, which also serves as impact protection and as a sealing ring for protection class IP 54. Recessed operating panel for using a contoured transparent front screen (available as an accessory with adhesive film) or for protecting individual membrane keyboards. Fastening pillars for mounting PCBs in top and bottom parts.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPE intermediate ring are not possible.

Version With TPE intermediate ring and operating panel recessed 1.6 mm

Supply Top and bottom part, TPE intermediate ring, assembly kit

Zavřít

B5403317

SLIM-CASE M, Vers. VI
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
off-white RAL 9002
148x74x22mm
IP 54
AltText

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zavřít

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Produkt byl přidán do Vašeho košíku.
AltText

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zavřít

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
Produkt byl přidán do Vašeho košíku.
Stainless steel
AltText

A0399T08

Torx T8 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T8 type screws. (original can deviate from photo)

Supply 1 screwdriver

Zavřít

A0399T08

Torx T8 screwdriver
Produkt byl přidán do Vašeho košíku.
AltText

B5503039

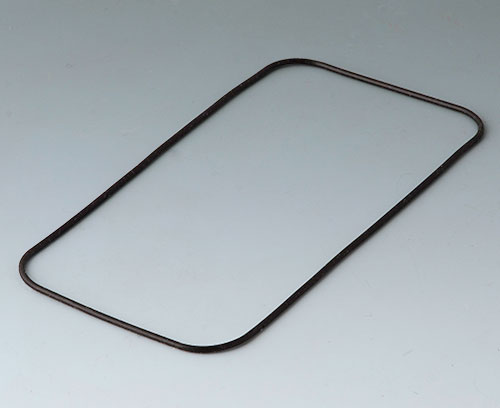

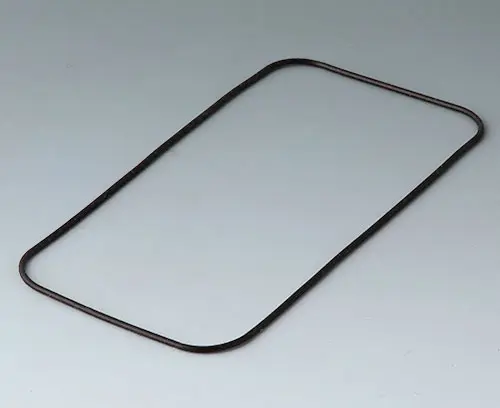

Seal M To increase the protection class of SLIM-CASE M enclosures without TPE intermediate ring (versions I-III).

Supply 1 seal

Zavřít

B5503039

Seal M
Produkt byl přidán do Vašeho košíku.
Silicone
black
AltText

B5503201

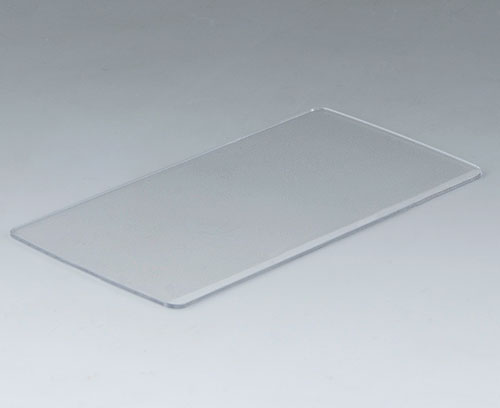

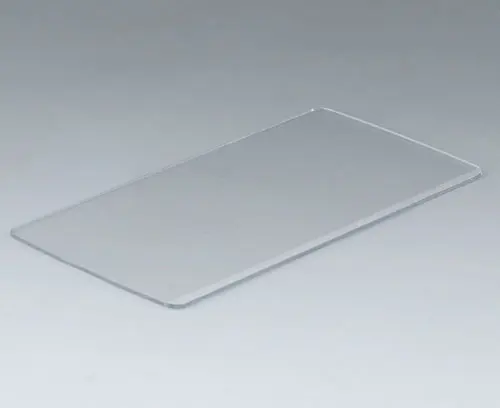

Front screen M The contoured transparent front screen (accessory) protects the displays underneath. It is rounded on the long edges to follow the ergonomic shape of the case. Suitable for SLIM-CASE M with operating panel recessed 1.6 mm (versions III and VI). Mounted with a double-sided adhesive film (accessories).
On request, supplied individually printed from behind to match your visible display as well as masking the adhesive film.

Supply 1 front screenm

Zavřít

B5503201

Front screen M
Produkt byl přidán do Vašeho košíku.
PC
transparent
125,3x63,5x1,3mm
AltText

B5503300

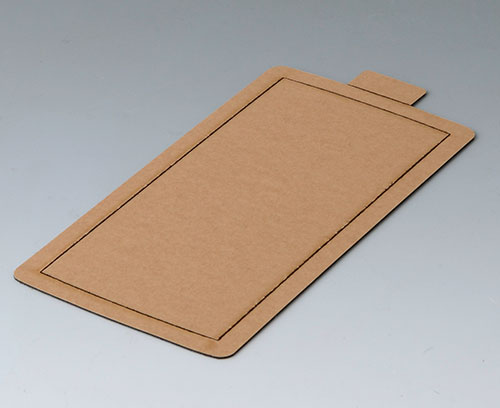

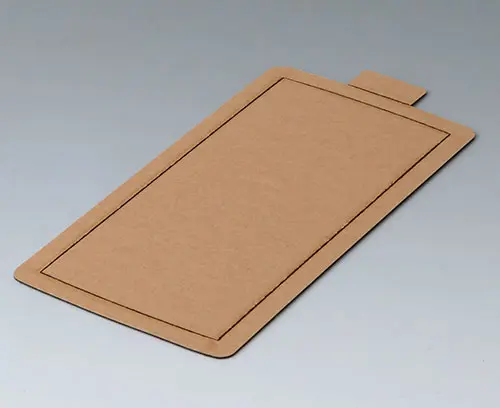

Adhesive foil M For secure mounting of the front screen on the top part.

Supply 1 adhesive foil

Zavřít

B5503300

Adhesive foil M
Produkt byl přidán do Vašeho košíku.

Možnosti přizpůsobení pro Slim-Case

Co ještě potřebujete pro svůj vlastní velmi osobní produkt? Můžeme dodat zapouzdření a ladicí knoflíky se všemi nezbytnými úpravami pro montáž vašich elektronických součástek.
