DIN modulární skříňka
B5403217
SLIM-CASE M, Vers. V

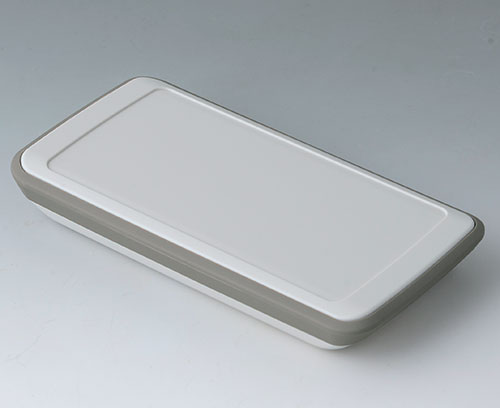

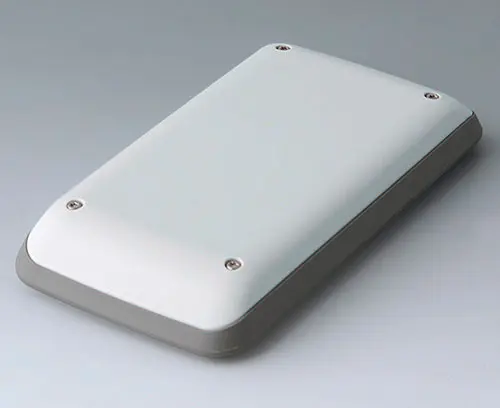

3-piece handheld enclosure with TPE intermediate ring, compact design, with a large operating panel of up to 4" (10 cm). Comfortable grip thanks to enclosure contours that are rounded along the sides and intermediate ring made of TPE, which also serves as impact protection and as a sealing ring for protection class IP 54. Recessed operating panel for applications with decorative product label. Fastening pillars for mounting PCBs in top and bottom parts.
Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPE intermediate ring are not possible.
With TPE intermediate ring and operating panel recessed 1 mm
SupplyTop and bottom part, TPE intermediate ring, assembly kit
Generovat PDF pro B5403217
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Accessory "screws"
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
A0325060
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Bottom and top part
Intermediate ring
Intermediate ring volcano
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 365 KB
- AutoCAD DWG-File 817 KB
- AutoCAD DXF-File 3 123 KB
- 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 529 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00026933.x_t 5 561 KB
- 00026933.step 10 846 KB
- 00026933.sat 17 151 KB
(OKW product)
