B5403107
SLIM-CASE M, Vers. I

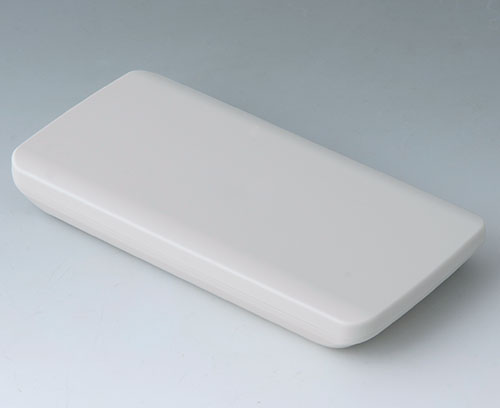

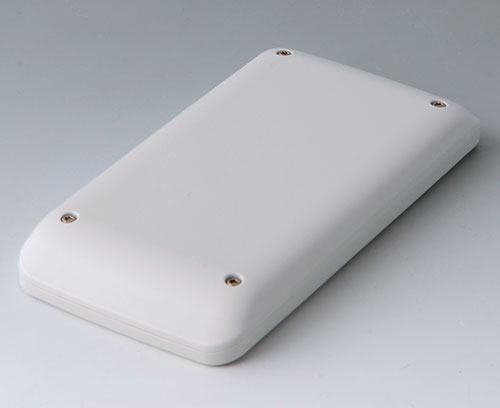

2-piece handheld enclosure, flat design, with a large operating panel of up to 4" (10 cm). The contours of the enclosure are rounded along the sides - comfortable to hold and easy to operate. Flat operating panel for individual design and arrangement of operating and display elements of all kinds. Fastening pillars for mounting PCBs in top and bottom parts. Seal for protection class IP 65 available as accessory.
VersionFlat operating panel
SupplyTop and bottom part, assembly kit
Generovat PDF pro B5403107
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Accessory "protection"
B5503039
Supply 1 seal
B5503039
Seal Mblack
Accessory "screws"
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
A0325060
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Necessary accessories: sealing,
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 324 KB
- AutoCAD DWG-File 624 KB
- AutoCAD DXF-File 2 379 KB
- 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 426 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00026929.x_t 3 792 KB
- 00026929.step 8 473 KB
- 00026929.sat 14 357 KB
(OKW product)
