DIN modulární skříňka
B5403207
SLIM-CASE M, Vers. II

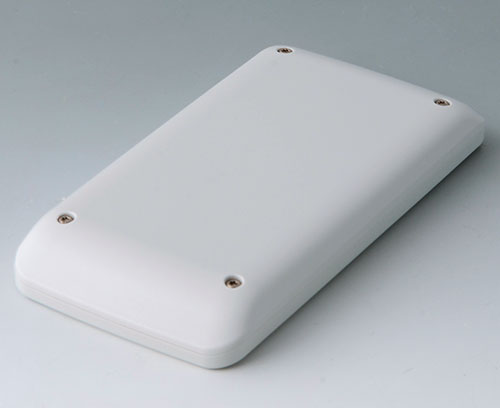

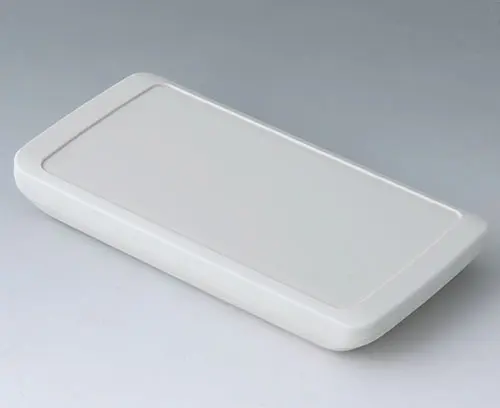

2-piece handheld enclosure, flat design, with a large operating panel of up to 4" (10 cm). The contours of the enclosure are rounded along the sides - comfortable to hold and easy to operate. Recessed operating panel for applications with decorative product labels. Fastening pillars for mounting PCBs in top and bottom parts. Seal for protection class IP 65 available as accessory.
VersionOperating panel recessed 1 mm
SupplyTop and bottom part, assembly kit
Generovat PDF pro B5403207
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Accessory "protection"
B5503039
Supply 1 seal
B5503039
Seal Mblack
Accessory "screws"
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
A0325060
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Necessary accessories: sealing,
