B5403307
SLIM-CASE M, Vers. III

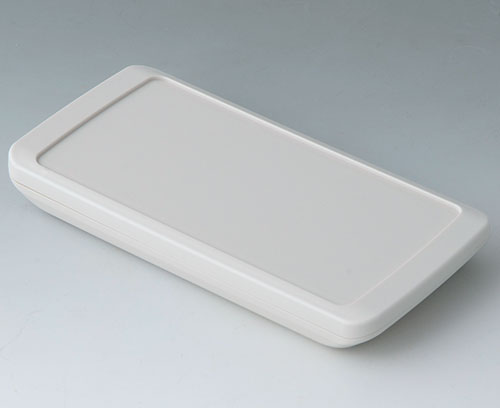

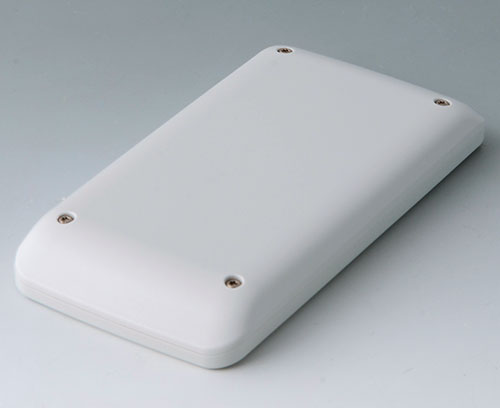

2-piece handheld enclosure, flat design, with a large operating panel of up to 4" (10 cm). The contours of the enclosure are rounded along the sides - comfortable to hold and easy to operate. Recessed operating panel for using a contoured transparent front screen (available as an accessory with adhesive film) or for protecting individual membrane keyboards. Fastening pillars for mounting PCBs in top and bottom parts. Seal for protection class IP 65 available as accessory.
VersionOperating panel recessed 1.6 mm
SupplyTop and bottom part, assembly kit
Generovat PDF pro B5403307
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Accessory "protection"
B5503039
Supply 1 seal
B5503039
Seal Mblack
B5503201
On request, supplied individually printed from behind to match your visible display as well as masking the adhesive film.
Supply 1 front screenm
B5503201
Front screen Mtransparent
125,3x63,5x1,3mm
B5503300
Supply 1 adhesive foil
B5503300
Adhesive foil MAccessory "screws"
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
A0325060
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Necessary accessories: sealing,
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 356 KB
- AutoCAD DWG-File 731 KB
- AutoCAD DXF-File 2 788 KB
- 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 470 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00027108.x_t 4 313 KB
- 00027108.step 9 313 KB
- 00027108.sat 15 304 KB
(OKW product)
Možnosti úprav: Zapouzdření můžeme upravit tak, aby vyhovovala Vašim specifickým požadavkům. Zapouzdření dodáme kompletně dokončená a připravená k použití. Už bude zbývat pouze instalace Vašich součástek nebo elektroniky. Prohlédněte si možnosti úprav pro B5403307 a nezapomeňte si vyžádat nabídku!
